Page 32

32
Instructions for Use, V1.9, RevD - 12/2012
5.
Operation

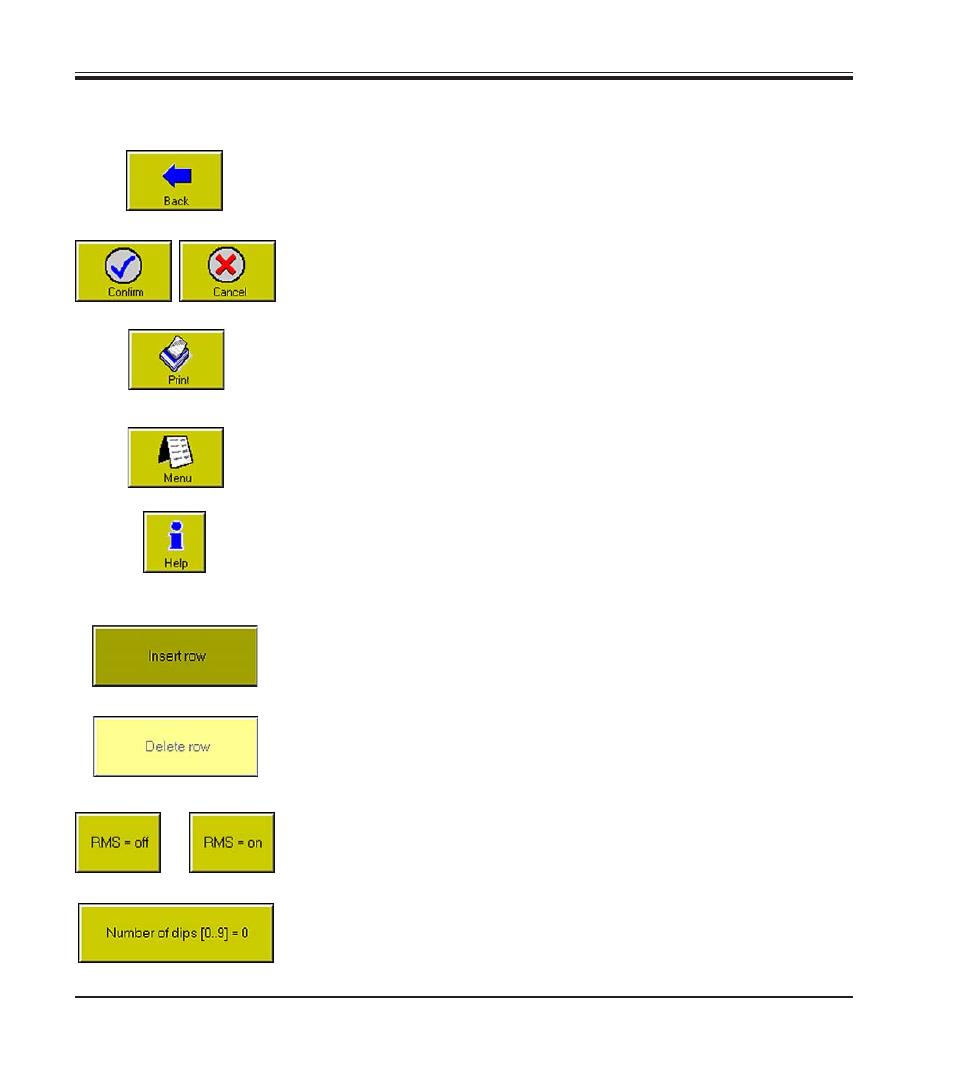

Some button symbols may look differently depending on whether they
have been enabled or disabled.
Disabled button symbols appear in a lighter color than enabled ones.
They are only shown to complement the menu being displayed, in or-
der to avoid mix-ups and to remind the user that the corresponding
function has been disabled. They can, however, not be accessed.
Disabled
Enabled
Button symbols
There are several functions where the user can choose from a number
of given parameters.
If there are only two parameters available, the parameter currently en-
abled is shown on the button. Pressing the button switches to the alter-
native parameter.
If there is a choice of more than two parameters, the range of available
parameters is shown on the button in square brackets.
Each time the button is pressed, the next parameter is accessed, start-
ing again with the first after the last one in the row has been selected.
The six buttons described below have the same function in all menus.
On the left side of the button bar (
Fig. 26
) there will either be the button
BACK
→
To go back to the previous menu.
or the two buttons
CONFIRM
→
To exit the current menu (new entries will be
stored upon exiting).
CANCEL
→
To exit the current menu without storing any
of the modifications made.
→
Displayed in menus containing tables and lists.
If pressed, the list selected will be printed
immediately. Immediate printing does not affect the
daily printout of all protocols (
see chapter 5.4.6
).
MENU
→
To go back to the main menu (
see chapter 5.3.4
)
HELP
→
The on-line HELP feature can be accessed from
any screen. HELP provides context-sensitive
explanations, i.e. help topics displayed will vary
depending on the menu HELP is accessed from.
→
