Once the activated carbon fil-
ter is inserted, push lever (35)
downwards to properly se-
cure the filter in the filter
housing.
4.6 Inserting the activated carbon filter
Make sure to insert the filter
with the correct side pointing
upwards: the three arrows on
the label (51) located at the
right of the filter must point to
front
.
Important for trouble-free
operation:
The sealing profiles (33) must
fit against the rear wall of the
filter housing (34).

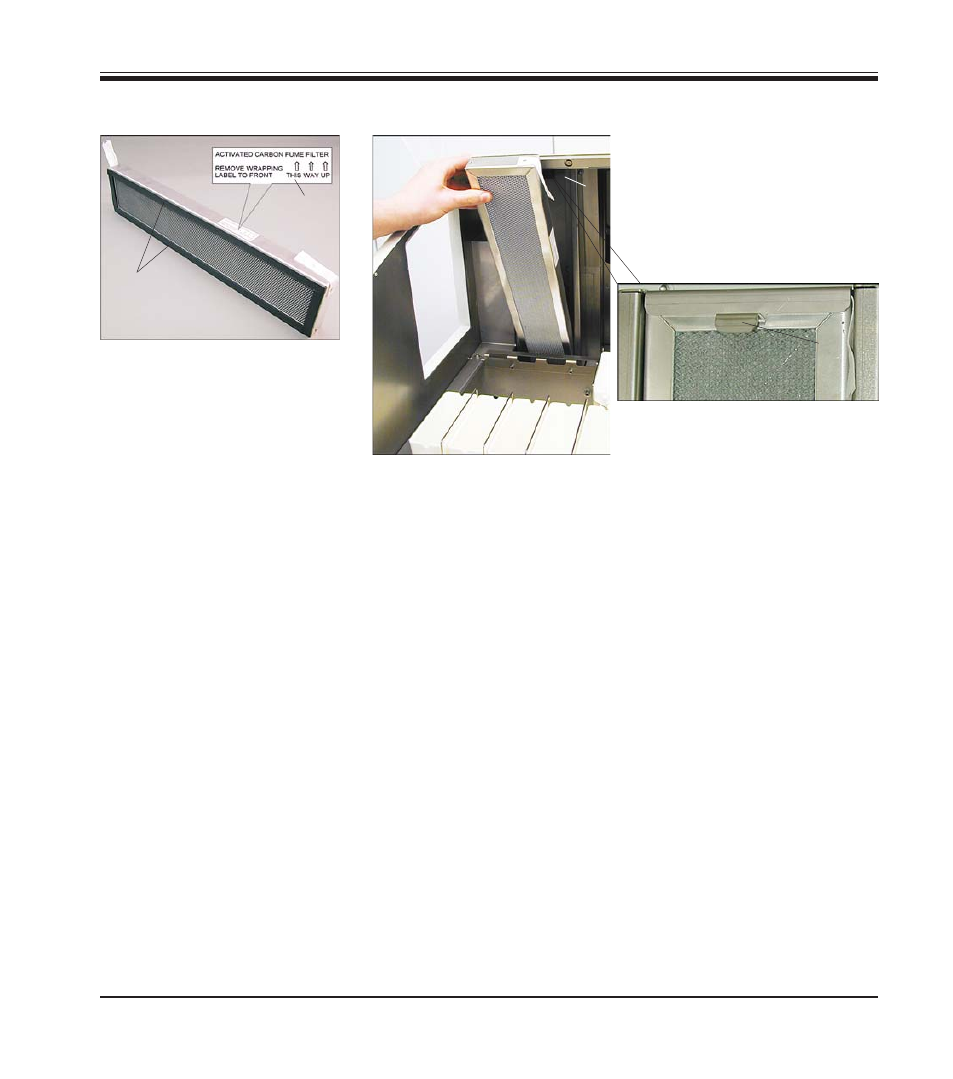

Fig. 19
33
34
35
Fig. 18
Filter - inserted
51
4.
Setting up the instrument
4.7 Leveling the instrument
•
Once all accessories are installed (don’t forget the rear panel!), move
the instrument to its final position.
•
Prior to leveling the instrument, check whether the bench surface of
the laboratory bench where the instrument will be installed is flat and
exactly horizontal.
•
Otherwise, use the box level (standard delivery) to determine the high-
est point of the bench. Next, the instrument foot located at the highest
point of the bench must be screwed in almost completely (
see Fig. 21
).
- Then level the instrument adjusting each foot as needed.
