4.3 Tap water supply connection

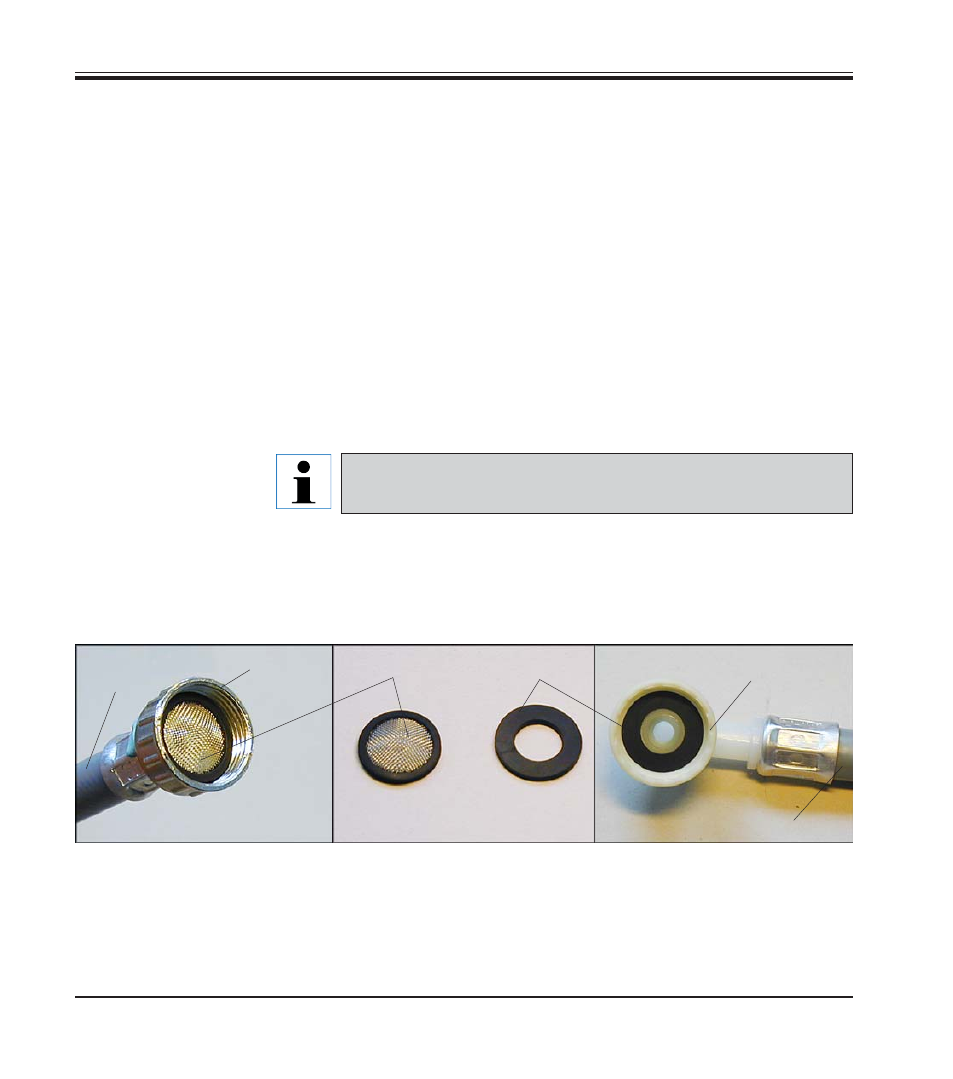

Fig. 6
3
Connecting the tap water inlet hose
•
Unpack the tap water inlet hose - mind the two gaskets (4).
4
5
6
•
Insert one gasket (4) into threaded fitting (6). Store away the remaining
gasket(s).
•
Insert strainer (3) into union nut (5) (see
Fig. 6
) which is screwed onto
the water tap. Do not insert any further gaskets, as the strainer acts
also as a seal.
7
7
4.
Setting up the instrument
Water filter
In addition to the filter sieve supplied (item 3 in
Fig. 6)
Leica recommends
installing a sediment filter between the water extraction outlet and
ST5020, to guarantee that the instrument is only operated with clean wa-
ter.
This sediment filter should have the following properties:
Filter fineness:
25 μm
Rate of flow:
approx. 10 l/min (with 5 wash stations)
Pressure constancy:
10 bar
Connection to the filter output: 1/2“ external thread
This filter insert must be checked and cleaned regularly.
If the filter insert is very dirty it must be replaced.
