23
Leica ST5020
Important!
If only one oven is installed, it must
be located on the right side (seen
from the rear of the instrument).
•

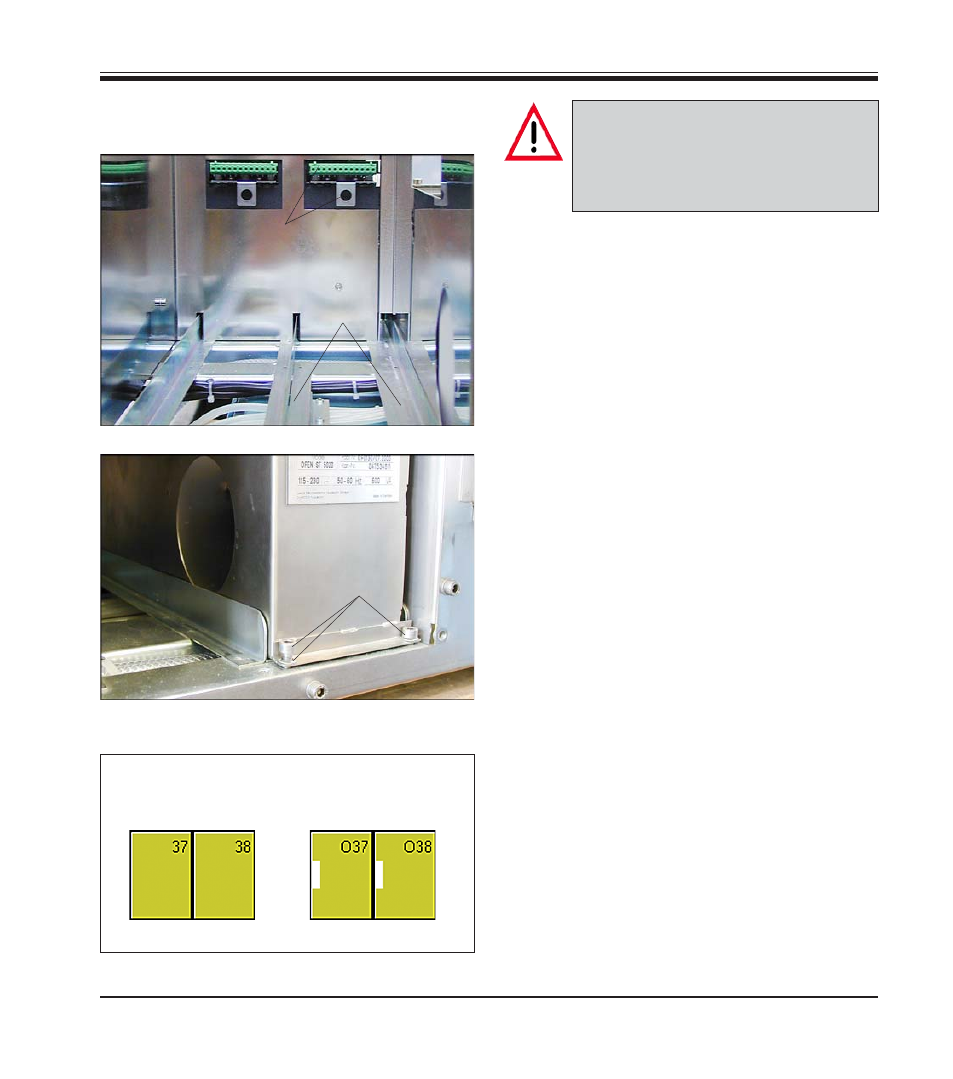

Place oven on rails (32) and insert.
•
Keep pushing until the connection pieces of
the oven (positioning pin (24), connector
strip (25), see
Fig. 11
) lock into the corre-
sponding connections (31) in the instrument.
Installing the oven
(continued)
•
Plug the instrument back into mains and
switch on. The oven modules are detected
automatically and are displayed accordingly
in ‘instrument status’.
•
Go to ‘stations options’ and set the desired
oven temperature.
(See
chapter 5.5.3, page 56
for further de-
tails).
•
Next, use the two screws (18) and washers
(19) to secure the oven (15) in the bores pro-
vided in the instrument for that purpose.
•
If a second oven has been ordered, install it
the same way as the first.
•
Fasten cover (item 17, Fig. 10) so that the
voltage range selected for the oven (15) is
the same as the engraved voltage range.
Fig. 14
Fig. 15
15
31
32
18, 19
Indication with
ovens installed
Indication prior to
installing the ovens
INSTRUMENT STATUS
Fig. 16
4.
Setting up the instrument
