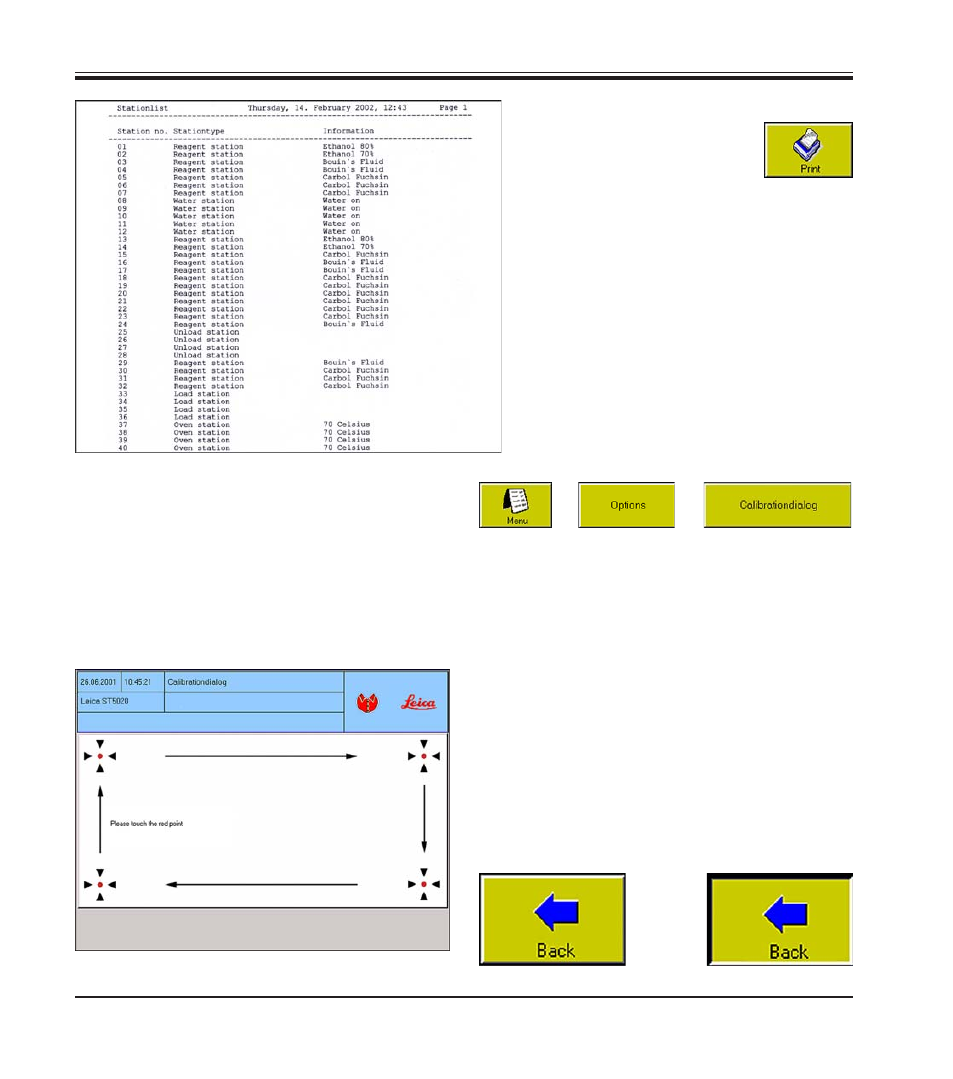

5.4.9 Calibration dialog
Fig. 48
Functional test:
Calibrate the screen and verify the result ap-
proaching one of the screen buttons from all
four sides - if the screen has been successfully
calibrated, the button may not appear as pres-
sed (wider border) before you actually touch it.
In the CALIBRATION DIALOG menu you can en-
hance or restore touch screen response to but-
tons being pressed. We recommend to use a
pen for the calibration procedure.
3
2
1
Standard appearance
Button pressed
The pen must be placed exactly on the red dot
(1). The dot will move as shown in
Fig. 29
. To exit
the menu, press the dot once more in Position 4.
→
→
•
PRINT button:
Press for a printout of the
current station configu-
ration.
Instead of the graphical screen dis-
play, a list (
Fig. 47
) will be printed,
which, in addition to the information
provided by the graphical screen, also
shows the reagents allocated to each
station.
Fig. 47
5.
Operation
