4.4 Installing the oven (optional)
The following parts must be in-
cluded:
15 - Oven module
16 - Paraffin collecting tray
17 - Cover
18 - Screws
19 - Washers
20 - Screwdriver
21 - Allen key, size 2.5
22 - Allen key, size 4.0
•

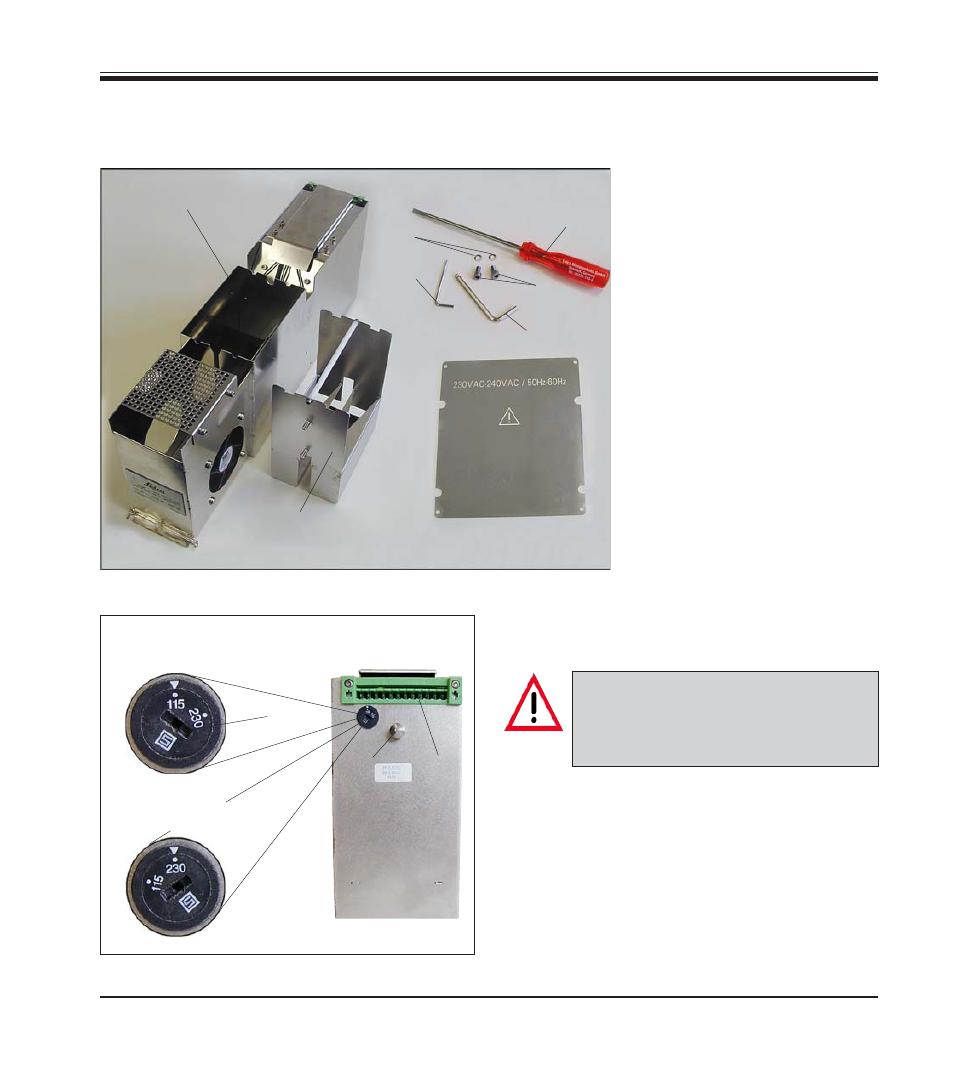

Take the oven kit out of the box and verify
whether it is complete.
15
16
17
18
19
22
21
20
Fig. 10
Insert paraffin collecting tray
into corresponding opening in
oven module (possible only in
one direction, as shown here).
•
Check the voltage selector setting and ad-
just if necessary.
Important!
The voltage selector switch must be
set to the same mains voltage as the
instrument.
To adjust the voltage selector setting, insert
screw driver (20) into gap (23) and turn care-
fully until the white point above the correct
voltage indication is located underneath the
white triangle.
115 means: Instrument voltage 100 -120 V.
230 means: Instrument voltage 230 - 240 V.
Fig. 11
Rear panel - oven
Voltage setting
100 - 120 V
Voltage setting
230 - 240 V
24
25
23
