Leica ST5020
4.8 Electrical connection
The instrument MUST be connected to an earthed mains power outlet socket.
The instrument is supplied with a set of country-specific power cords.
Make sure to use the appropriate mains cable for the local voltage supply (wall outlet).
All electrical connections are located at the rear
of the instrument to the left (
Fig. 23
).
Power supply
•
Connect mains cable to mains power supply
socket (42).
•
Jumper cable (43) connects the mains power
supply output (44) to the electronics module
input (45).
Data connections
•
Printer port (47)
A suitable printer (and cable) can be recom-
mended by your Leica distributor. If conform-
ance to electromagnetic interference stan-
dards is essential, a specially shielded printer
cable will be required.
•
Serial port (48)
Access for technical service.
•
Connection for Leica CV 5030 Cover slipper
(49).
All interfaces may be used only with
devices that have been tested in ac-
cordance with EN 60950 and which
satisfy the requirements for SELV cir-
cuits.
Other connections
•
Socket for remote alarm system (50)
•
Secondary fuses (46)

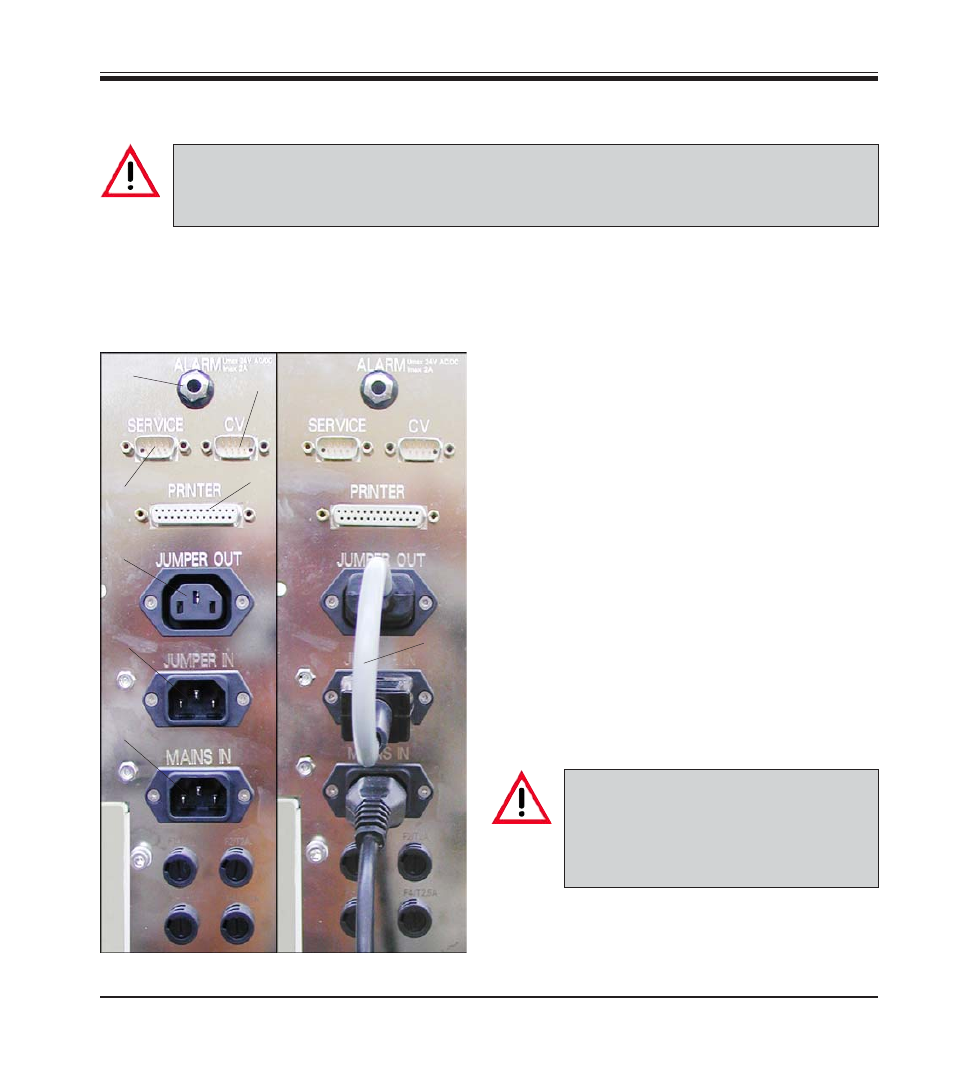

Fig. 23
Jumper cable / power cord
connected correctly
for mains power supply
50
Sockets for mains power
supply and data transfer.
Secondary fuses.
45
42
43
47
48
44
46
49
4.
Setting up the instrument
