5.6.1 Creating programs
Creating new programs
•

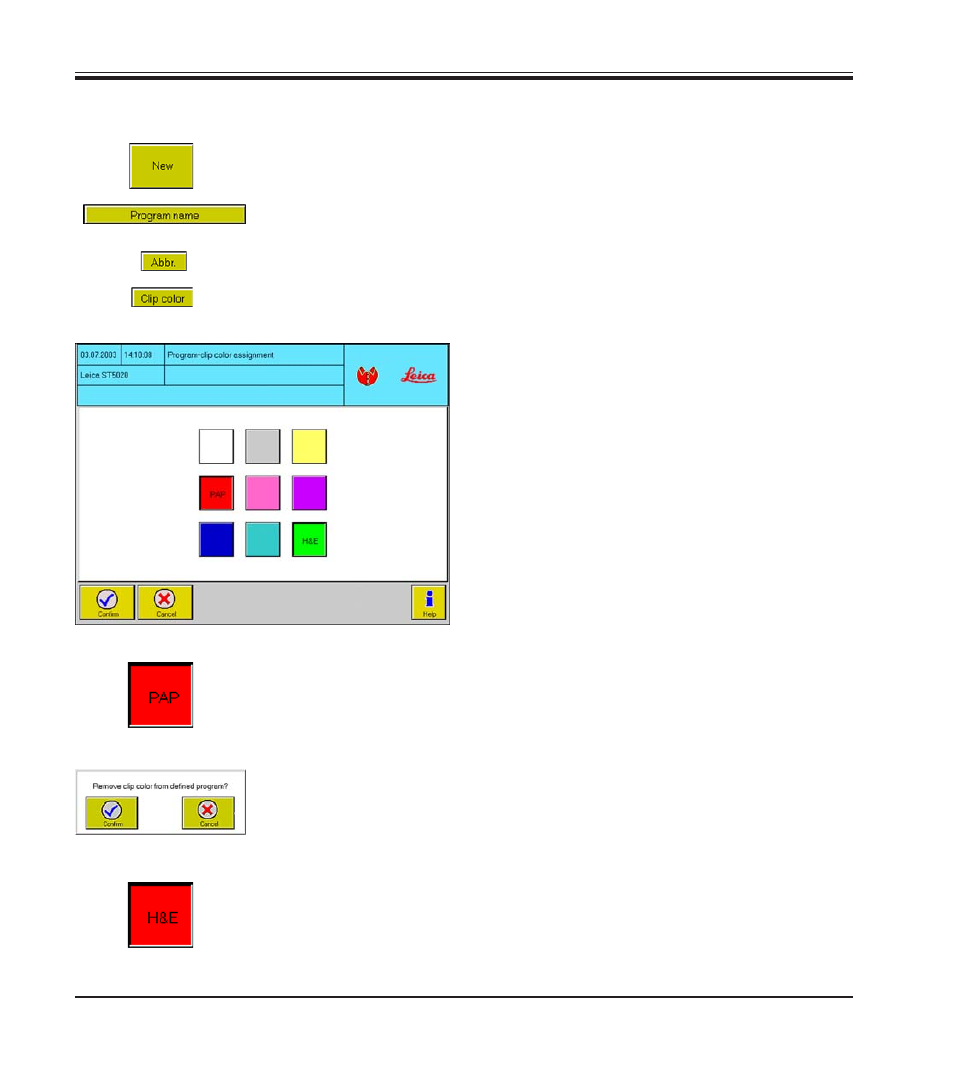

Press NEW (see
Fig. 55
) to create a new program row.
•
Press PROGRAM NAME in the table header and enter a new program
name via the KEYBOARD.
•
Press ABBR. to allocate a 3-digit code to the new program. This code
will be displayed in the INSTRUMENT STATUS and STAINING SCHED-
ULE menus.
•
Press CLIP COLOR to access the PROGRAM
CLIP COLOR ASSIGNMENT menu.
•
Press a color button to allocate a color to
the program selected.
The 3-digit program code will be displayed
on the color button.
•
Each color (except the color white) can only
be allocated to one program at a time.
Colors already allocated are identified by the
corresponding three-digit program code and
will be displayed as ‘pressed’ (wider border).
↓
Fig. 56
•
Existing color allocations may be changed at any time. For that pur-
pose, go to the program list (see
Fig. 55
for further details) and highlight
the program to which you want to allocate a different color. In the ex-
ample, the color red is to be allocated to H&E (previously it was green).
Then press CLIP COLOR to access the PROGRAM CLIP COLOR AS-
SIGNMENT menu (
Fig. 56
). Press the red color button here.
•
If the color you have selected was already allocated to a different pro-
gram (color button contains 3-digit program code, PAP in the current
example), you must confirm that the color will be taken away from that
program.
•
Press CONFIRM in the screen prompt: the selected color is allocated to
the selected (H&E) program. The program to which that color had been al-
located up to that point (PAP) will be defined as white (in the CLIP COLOR
column).
↓
↓
