Model 3000 M0188-01
Rev. 6/11 6-27
KPM II Monitor Operation

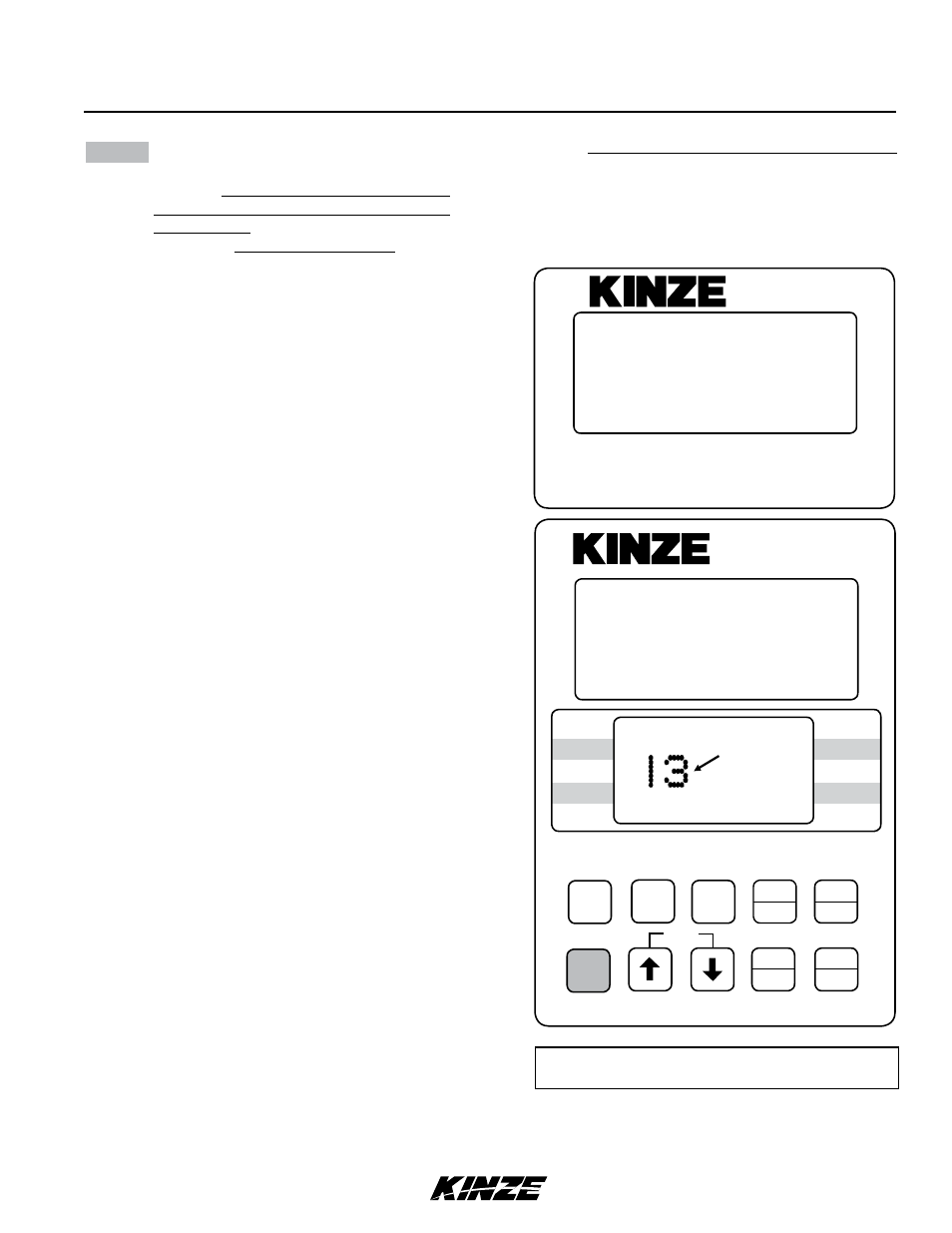

STEP 8 When all seed tubes for the current section
(rear/front, left/right or four section) are
installed, check to be sure the upper LCD
on the KPM II Stack-Mode console displays
solid numbers for the number of seed tubes
connected. Press and hold OK key to save
current section setup. The SAVE? icon will
display followed by continuous short beeps
indicating the monitor is preparing to save.
The installer has 5 seconds to decide to
save the current configuration. During this
time, four short beeps will sound followed
by a long beep and the SAVE? icon will
turn off and the word “DONE” shows on
the screen. The monitor will continue to the
second section installation (If Applicable).
NOTE: SMM console may not be applicable to
all models.
ON
AREA
OFF ExIT
ENTER
OK
CLEAR
SETUP
ROw
SPACING
TOTAL
AREA
UNITS
SPEED
VOLUME
SCAN
SEED
POPULATION
SEED
SPACING
FIELD
AREA
SPACING TOTAL
SEED
POP. FIELD
SELECT SPEED SCAN
SETUP REAR SAVE?
SAVE? SETUP
REAR
12 11 10 9 8 7 6 5 4 3 2 1 (1314 15 16 17 18)
(FRONT)
ROw
FLASHING
Row waiting To
Be Connected
®
KPM II •
12060211
®
SMM
NOTE: Illustrated using rear/front configuration.
The KPM II Stack-Mode console shows LEFT in
the left/right configuration, REAR in the rear/front
configuration and FRONT LEFT/REAR LEFT in
the four sections configuration.
