M0188-01 Model 3000
7-30 Rev. 6/11
TM
Lubrication and Maintenance

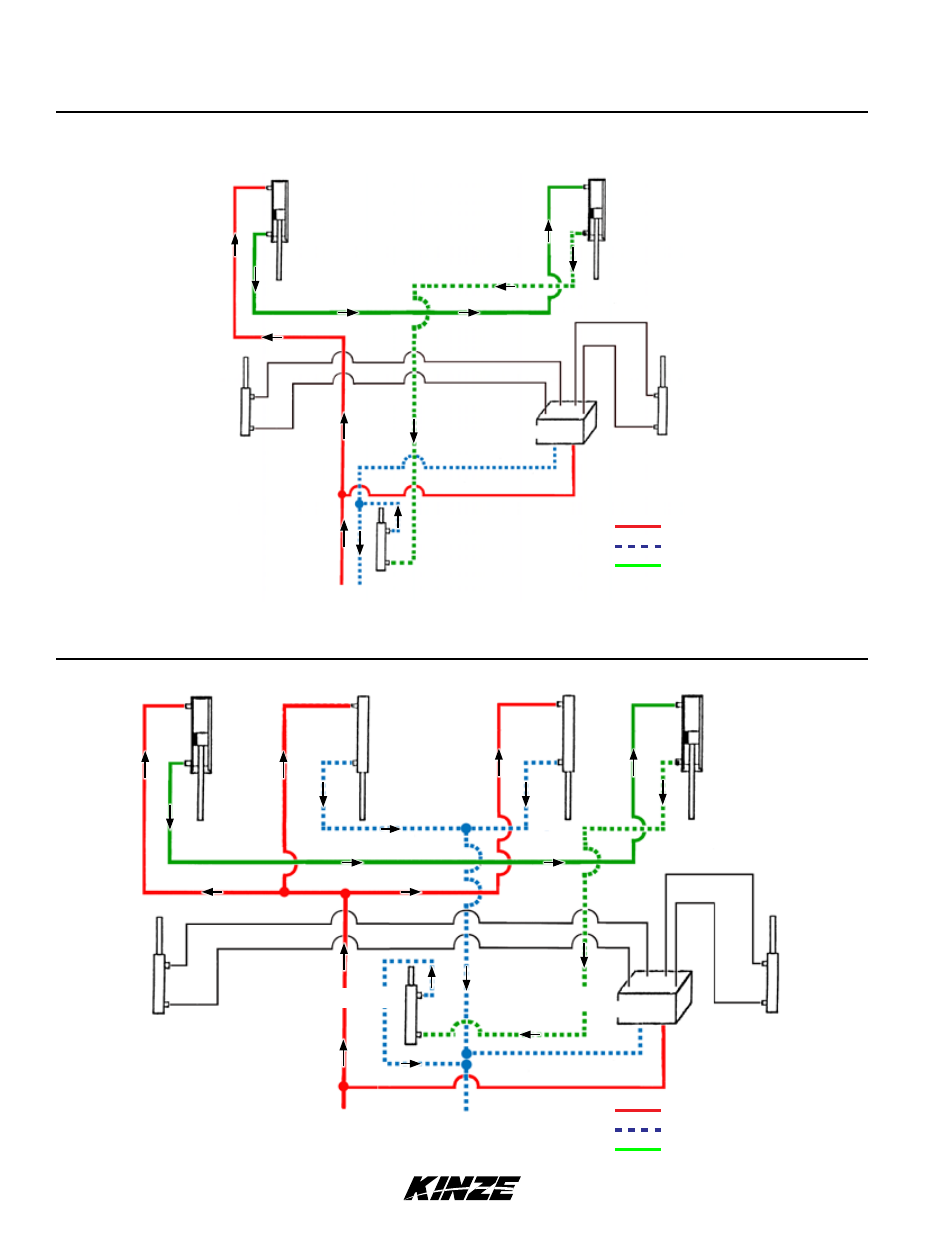

HYDRAULIC SYSTEM SCHEMATIC (wITH INTERPLANT SELF-LEVELING HITCH)
Master Cylinder Assist Cylinder Assist Cylinder Slave Cylinder
R.H. Marker Cylinder
L.H. Marker Cylinder
Interplant ® Lift Cylinder Sequence Valve
6/8 Row - Planter Raising
Master Cylinder Slave Cylinder
R.H. Marker Cylinder Sequence Valve
L.H. Marker Cylinder
Interplant ® Lift Cylinder
4 Row - Planter Raising
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
