KPM I Monitor Operation

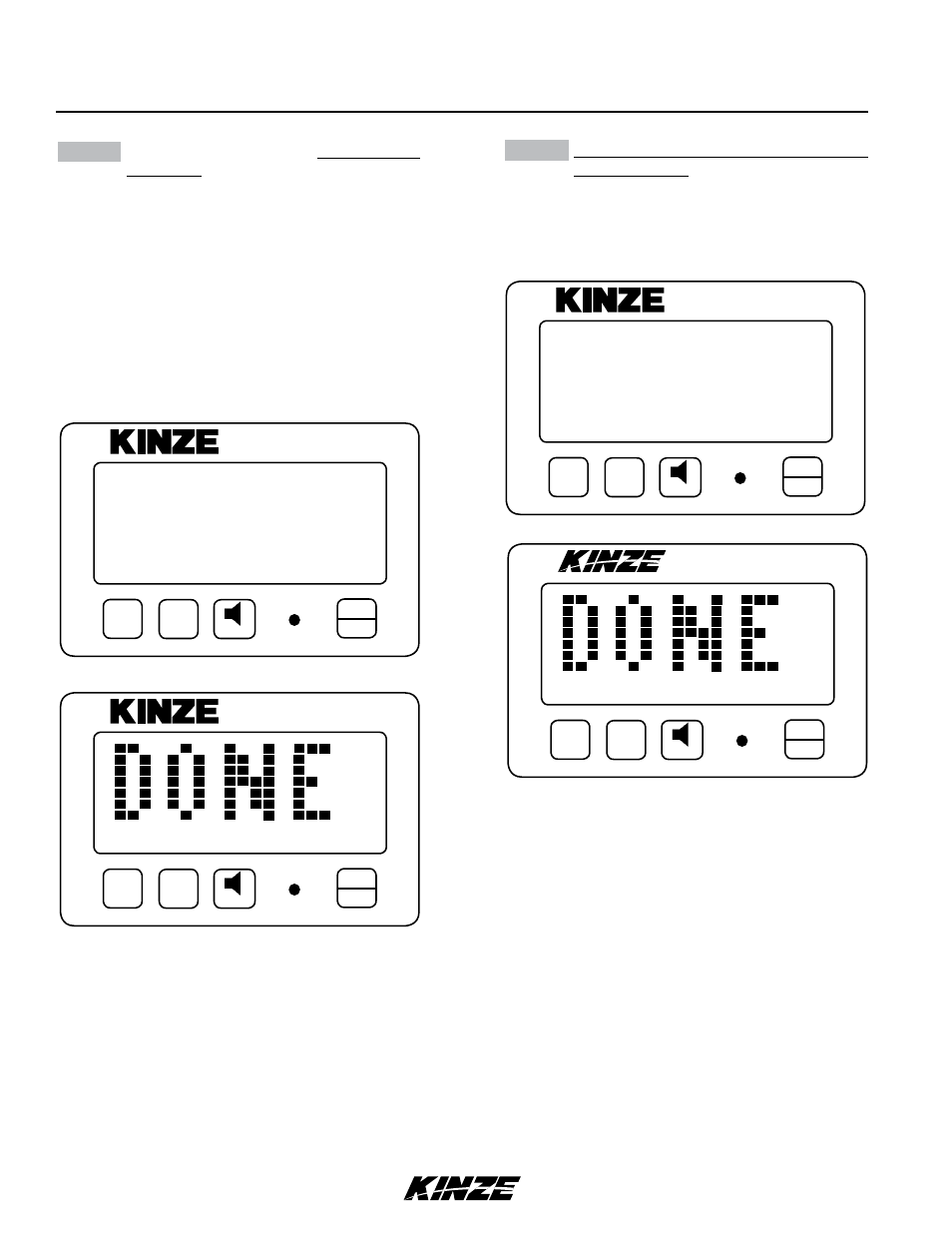

STEP 7 If this condition is satisfied, press and hold
the OK key to save the setup for the current
section. The SAVE? icon shows followed by
continuous short beeps indicating monitor
is preparing to save. The installer has 5
seconds to decide to save the current
configuration. During this time the short
beeps will sound. To complete the save,
hold the OK key pressed until the word
“DONE” shows on the screen followed by
a long beep and the SAVE? icon turns
off. When the OK key is released the
monitor continues with the second section
installation.
NOTE: Individual seed tubes may be unplugged
for special situations. An alarm sounds which can
be silenced by touching the OK key. The monitor
recognizes each seed tube when reconnected.
ON
OFF
OK
VOLUME
TM
KPM I
SELECT
01229920
SETUP
FRONT
STEP 8 Follow STEPS 5 through 7 to install the
second section. If no seed tubes are
installed on the second section, press and
hold the OK key until “DONE” shows on
the screen followed by a long beep and the
SAVE? icon turns off.
ON
OFF
OK
VOLUME
®
KPM I
SELECT
01229917
SETUP
REAR
6
5
4
3
2
1
SAVE?
(FRONT)
12
11
10
9
8
13 14 15 16 17 18)
FLASHING
(7
ON
OFF
OK
VOLUME
®
KPM I
SELECT
01229918
SETUP
REAR
6
5
4
3
2
1
(FRONT)
FLASHING
ON
OFF
OK
VOLUME
®
KPM I
SELECT
01229919
SETUP
FRONT SAVE?
12
11
10
9
8
7
6
5
4
3
2
(1
13 14 15 16 17 18)
FLASHING
See “KPM I/KPM II Stack-Mode Electronic
Seed Monitor Troubleshooting” in the
Troubleshooting section of this manual.
