Model 3000 M0188-01
Rev. 6/11 4-9
Fertilizer
OPTIONAL SQUEEZE PUMP
Squeeze pump rate of liquid fertilizer application is determined by combination of sprockets on squeeze pump drive
and driven shafts. Make sure sprockets are in alignment, sprocket retaining collars are tight, and chain is properly
tensioned is when changing sprocket combinations. Close all shut-off valves when planter sits overnight or for
extended periods of time. It is also important to close tank valves when servicing on pump or hoses.
NOTE: Delivery rate chart in Rate Chart section of this manual provides approximate application
rate only. Delivery varies with temperature and fertilizer.
LIqUID FERTILIzER ATTACHMENT
wARNING
Agricultural chemicals can cause death or serious injury to persons,
animals, and plants or seriously damage soil, equipment, or property.
Read and follow all chemical and equipment manufacturers labels
and instructions.
NOTICE
Placing fertilizer too close to seeds or in excessive amounts can
cause germination or seedling damage. Check with your fertilizer
dealer or manufacturer for correct amount and placement.

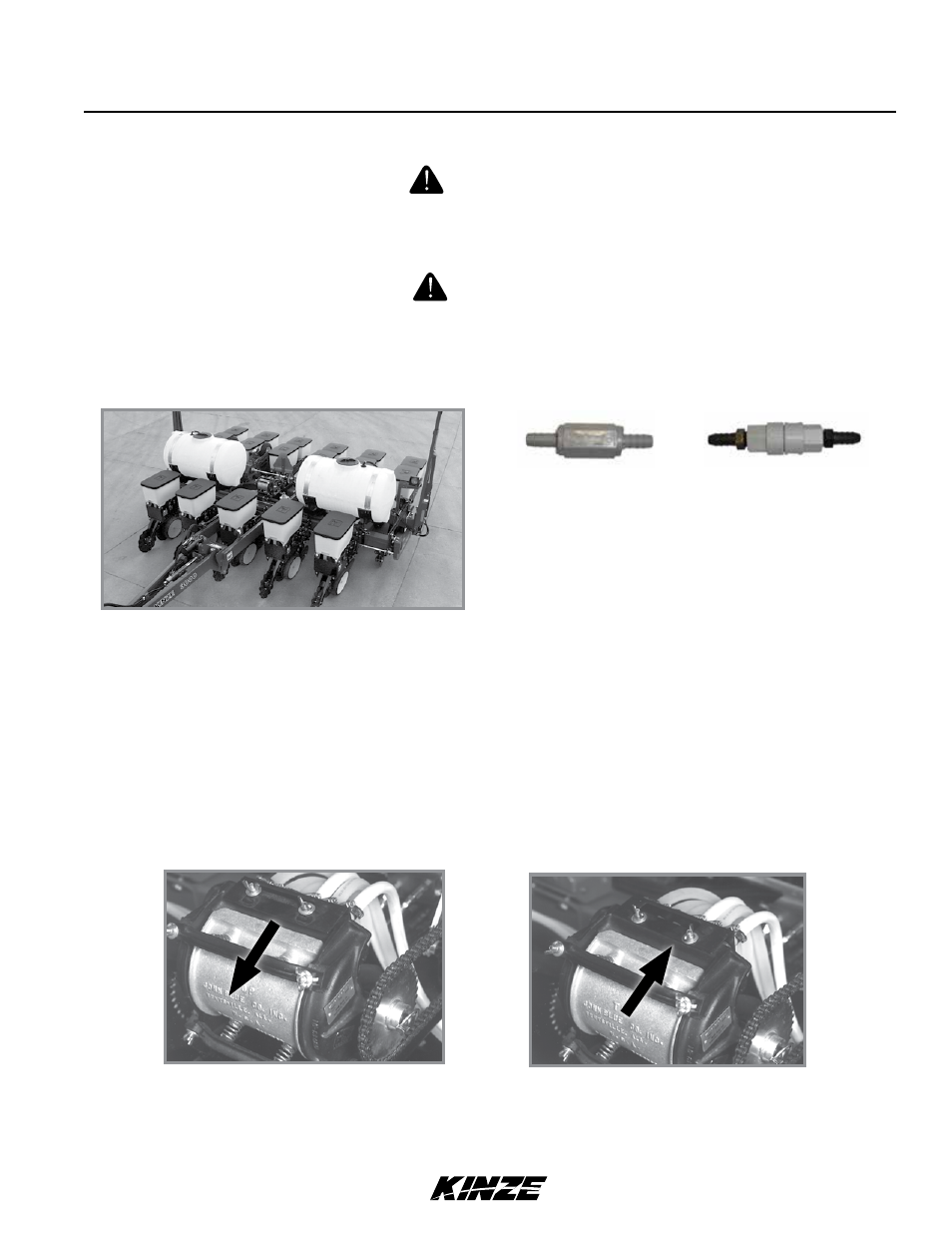

Liquid fertilizer option installed
Discharge manifold must be repositioned rearward when not in use to prevent hose distortion and prolong hose life.
Discharge manifold must be forward when pump is in operation. Loosen wing nuts and slide manifold forward and
sideways or rearward as required and retighten wing nuts.
Discharge manifold forward Discharge manifold rearward
NOTE: Optional low rate check valves are available
for in-line installation between liquid fertilizer
squeeze or piston pump and openers to ensure equal
distribution of product at low rates. Check valves
also eliminate anti-siphon loops.
Old style non-reparable
check valve New style reparable
check valve
CAUTION
Overfilling tank can cause siphoning, tank collapse, personal injury,
and damage to property and equipment. Do not overfill tank. Do not
leave planter unattended when filling tank. Close fill valve and open
tank lid if siphoning occurs. Follow all chemical manufacturers first
aid, cleanup, and handling instructions.
