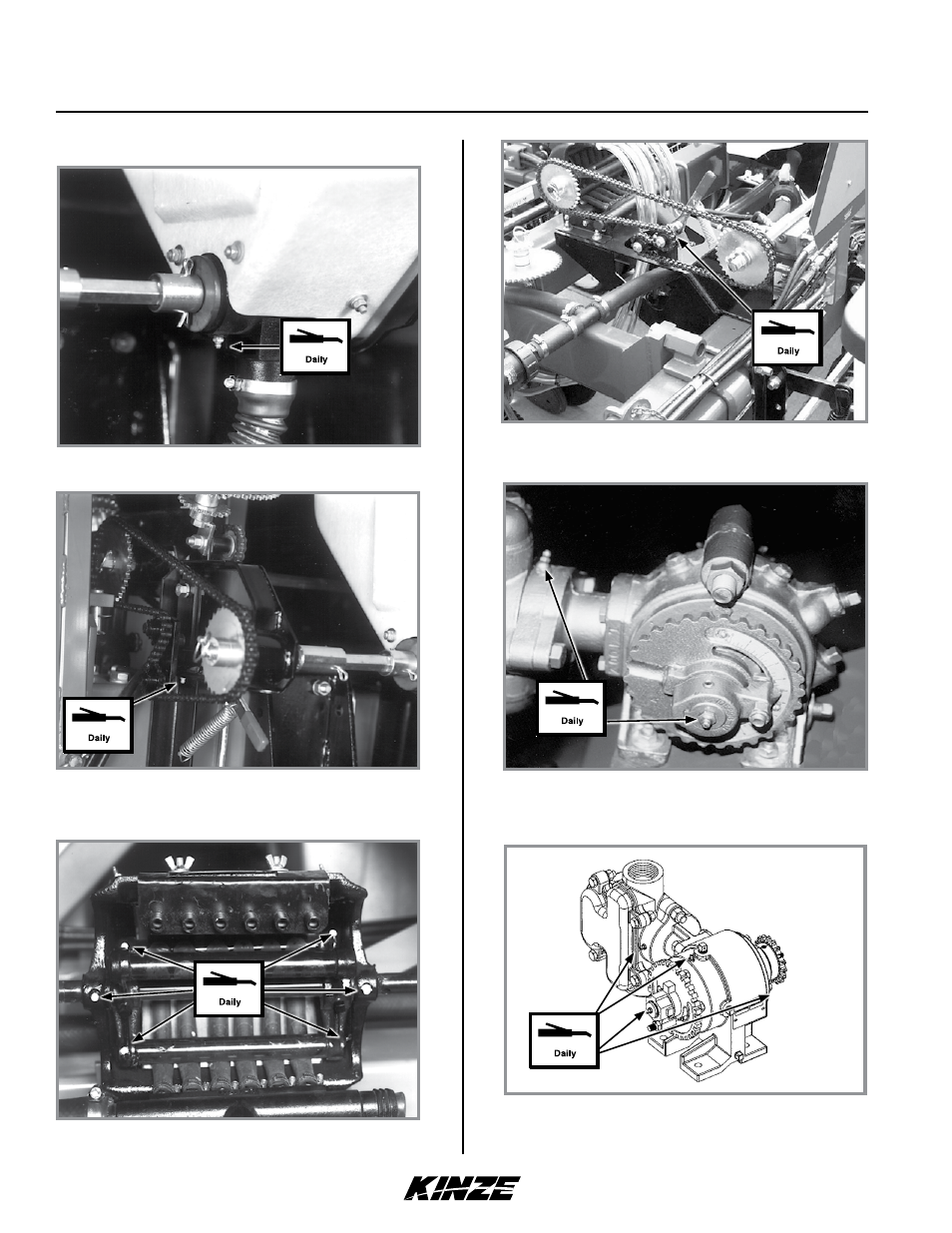

Lubrication and Maintenance
Dry Fertilizer Attachment
Squeeze Pump - 8 Per Pump
Squeeze Pump/Piston Pump Drive Chain Idler - 1
Per Idler (Squeeze Pump Shown)
Liquid Fertilizer Piston Pump - 2 (Fill on outboard
stuffing box until lubricant seeps out of drain hole
in bottom.)
Dry Fertilizer Hopper - 2 Per Hopper
Dry Fertilizer Transmission - 1 Per Transmission
Liquid Fertilizer Attachment
Liquid Fertilizer Piston Pump - 4 (Fill on outboard
stuffing box until lubricant seeps out of drain hole
in bottom.)
