Kinze 3000 Rigid Frame Planter Rev. 6/14 - Manual (Page 47)

TM
Model 3000 M0188-01
Rev. 1/14 3-17

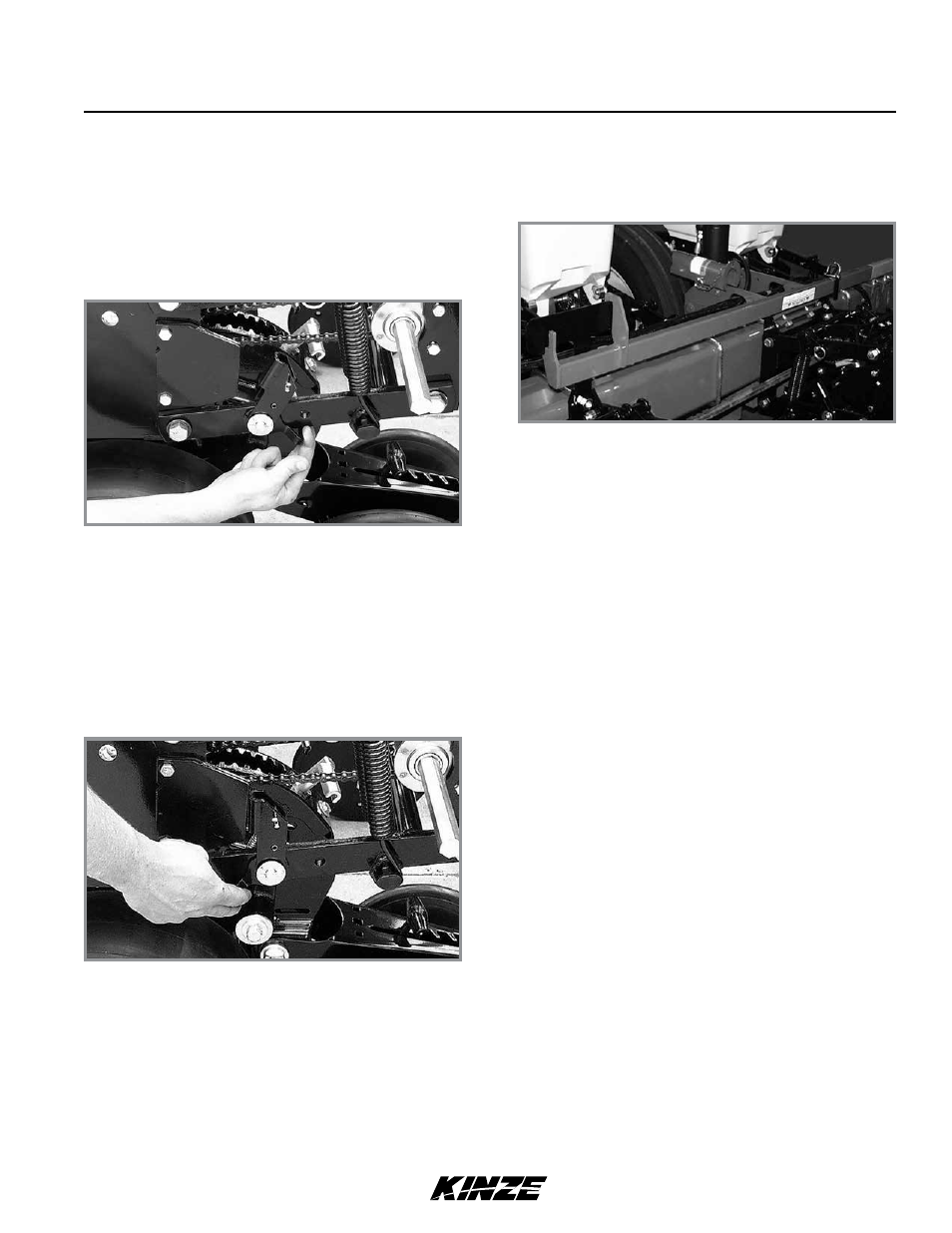

Row Unit Operation
Lift lever in storage location
To lock in raised position:
1. Set row unit down pressure springs to minimum
setting.
2. Lower the planter to the planting position.
3. Empty seed hoppers.
4. On each push row unit lockup, flip the spring tab
forward.
5. Using the lift lever, raise the push row unit to allow
the spring loaded lockups to snap into locked posi-
tion under the row unit stops.
6. Repeat Steps 4 and 5 on remaining push row units.
To release lockups:
1. Lower the planter to the planting position.
2. On each push row unit lockup, flip the spring tab
rearward.
3. Using the lift lever, raise the push row unit to allow
the spring loaded lockups to snap out of locked
position. Lower row unit to the ground.
4. Repeat Step 3 on remaining push row units.
