Model 3000 M0188-01
Rev. 6/11 6-21

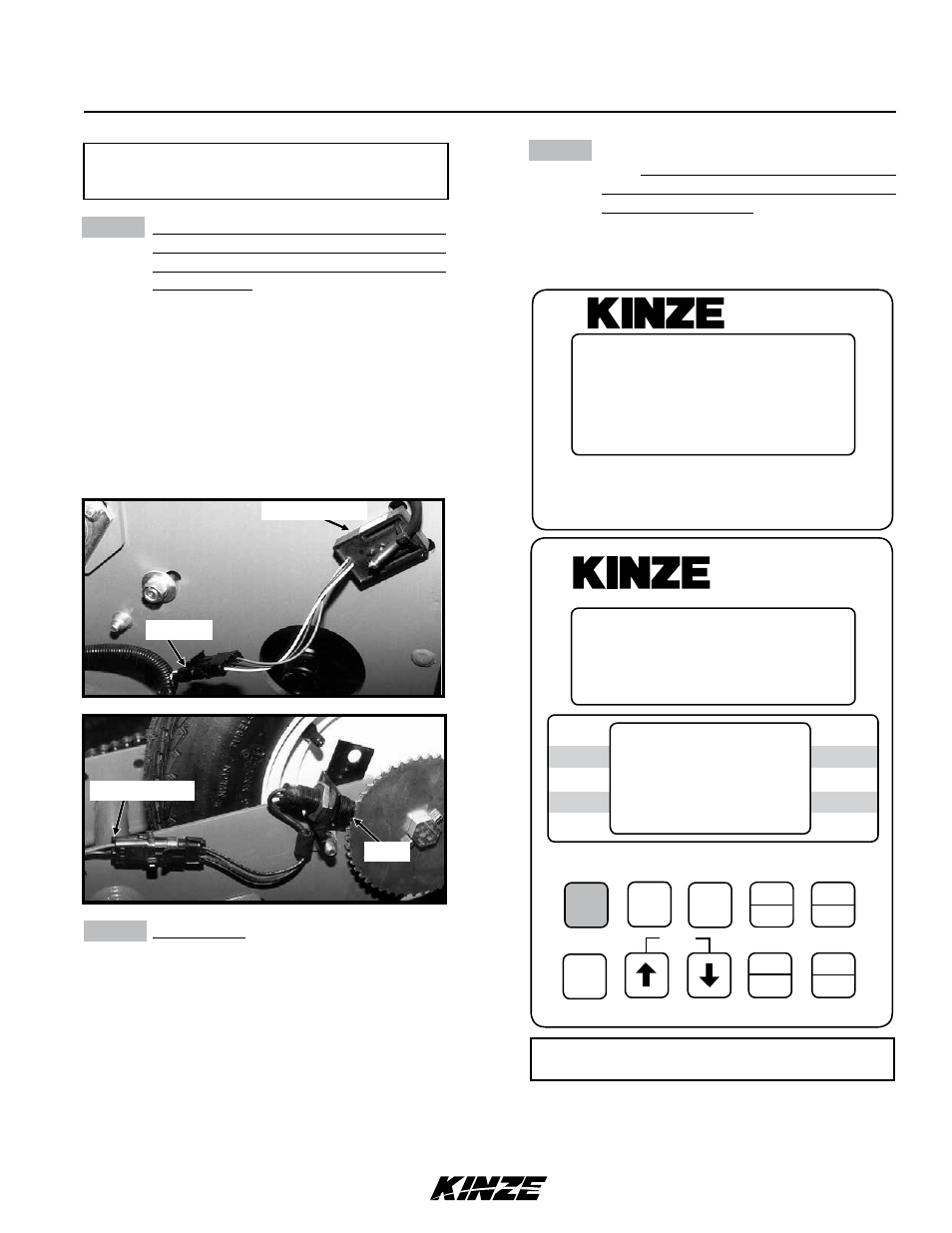

KPM II Monitor Operation
PROGRAMMING/CONNECTING SMM CONSOLE,
SHAFT ROTATION SENSORS, SEED TUBES AND/
OR RADAR/MAGNETIC DISTANCE SENSORS
STEP 1 All sensors (including seed tubes w/
sensors, radar, magnetic distance, SMM
console and shaft rotation sensors) must
be unplugged from the harness and/or
console and the monitor must be off.
NOTE: If the monitor detects a radar sensor but
no seed tubes at power up, it automatically goes
into AREA COUNT mode. See “Area Counter/
Speedometer Mode”.
NOTE: Disconnect magnetic distance sensor
between MDS adapter and planter harness. DO
NOT disconnect between MDS and MDS adapter.
01189910
MDS Adapter
MDS
01189909
MDS Adapter
Harness
STEP 2 Press ON key. Monitor automatically enters
setup procedure. Monitor scrolls “NO
SENSOR” on top LCD of KPM II Stack-
Mode console.
STEP 3 The monitor automatically defaults to rear/
front. Press SELECT key once for left/right
and twice for four sections (front right/front
left/rear right/rear left). The selected display
will be solid and configuration not currently
selected will be flashing.
NOTE: SMM console may not appliy to all
models.
ON
AREA
OFF ExIT
ENTER
OK
CLEAR
SETUP
ROw
TOTAL
UNITS
SPEED
VOLUME
SCAN
SEED
SEED
FIELD
SEED
POP. FIELD
SELECT SPEED SCAN
SETUP FRONT
SETUP
REAR (LEFT) (RIGHT)
Flashing Flashing
®
KPM II •
12060211
®
SMM
