TM
Model 3000 M0188-01
Rev. 6/11 7-29
Lubrication and Maintenance

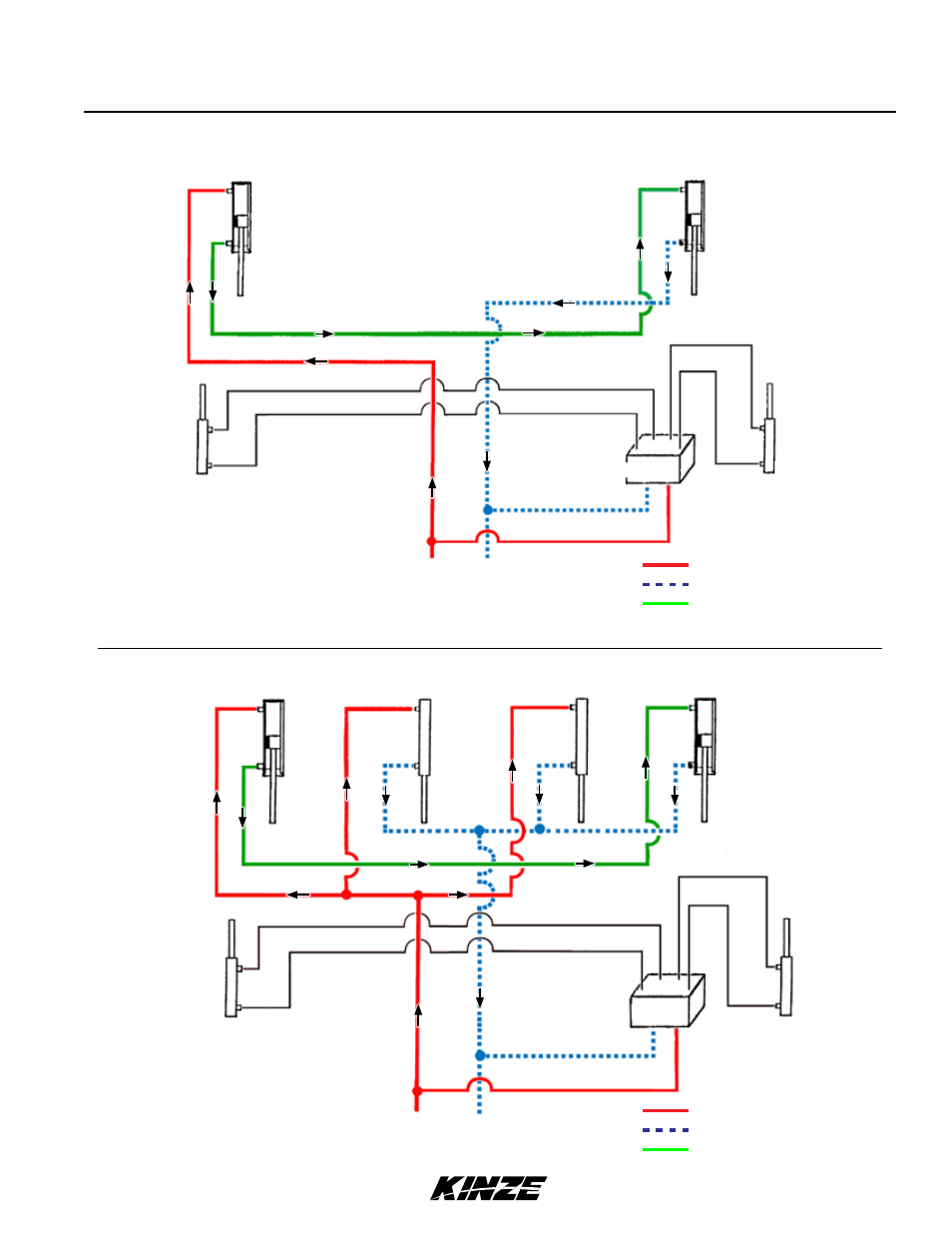

HYDRAULIC SYSTEM SCHEMATIC
Master Cylinder Assist Cylinder Assist Cylinder Slave Cylinder
Sequence Valve
R.H. Marker Cylinder L.H. Marker Cylinder
6/8 Row - Planter Raising
Master Cylinder Slave Cylinder
R.H. Marker Cylinder
Sequence Valve
L.H. Marker Cylinder
4 Row - Planter Raising
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
Red - Pressure
Blue - Return
Green - Master to Slave Pressure
