5 Setup program
5.6.2 Transfer via interface
Data transfer is possible via one of the following interfaces:
v The settings for the interface parameters can be found in Chapter 4.2.10
“Configuration - Interfaces”.

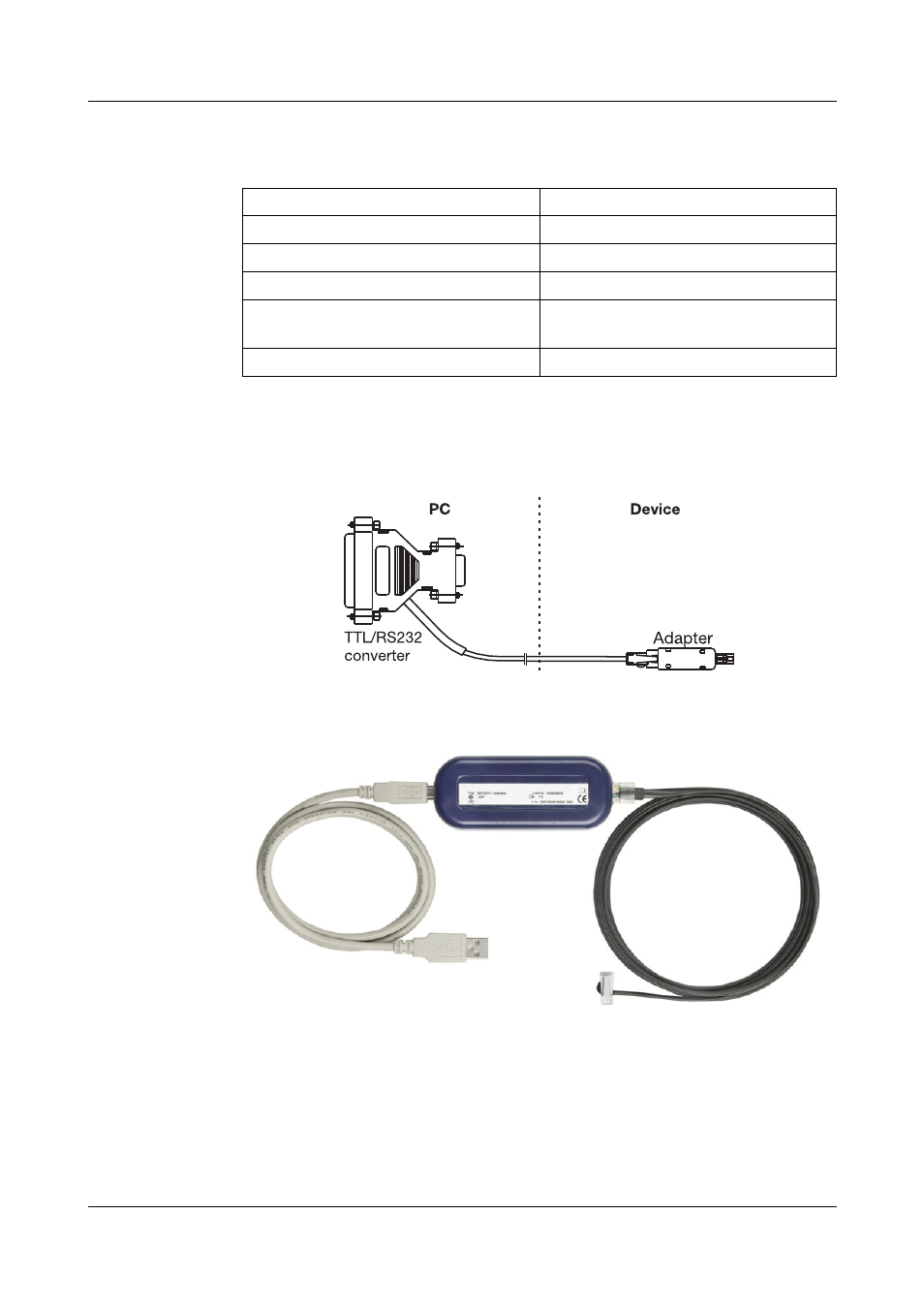

Setup - RS232 You will need the interface cable (including adapter) in this case. It is available
as an accessory for the recorder.
Setup - USB You will need the interface cable (including adapter) in this case. It is available
as an accessory for the recorder.
RS232
v For the pin assignment, please refer to the Interface Description
B 70.6510.2.0.
RS485
v For the pin assignment, please refer to the Interface Description
B 70.6510.2.0.
Paperless recorder PC
Setup interface RS232
Setup interface USB
RS232 RS232
RS485 RS485
(plug-in card or converter)
Ethernet Ethernet
v See Installation Instructions B70.9720.3.
