5 Setup program
5.4 Configuration
By using the function File ➔ New (or File ➔ Open) you can create a new
configuration file (setup) or open an already existing one. The working area will
be filled with the corresponding settings.
Navigation tree A single click with the left mouse button in the navigation tree will position the
entry visibly in the dialog window.
Clicking on will reduce the size of the display, one click on will enlarge
the display again.
A double-click on an entry (e.g. ) will start the change dialog.
Alternatively, a change can also be started via the menu bar (Edit ➔
Configuration level ➔ Device data).
Dialog window By double-clicking on an entry in the dialog window, you can start the change
dialog. One click on “Arrow to right” ( ) before the entry will list the current
setting in the dialog window, one click on “Arrow down” (
) will hide the
current setting again.
Current setup If several setup settings are open at the same time, just one simple click on the
name and ...

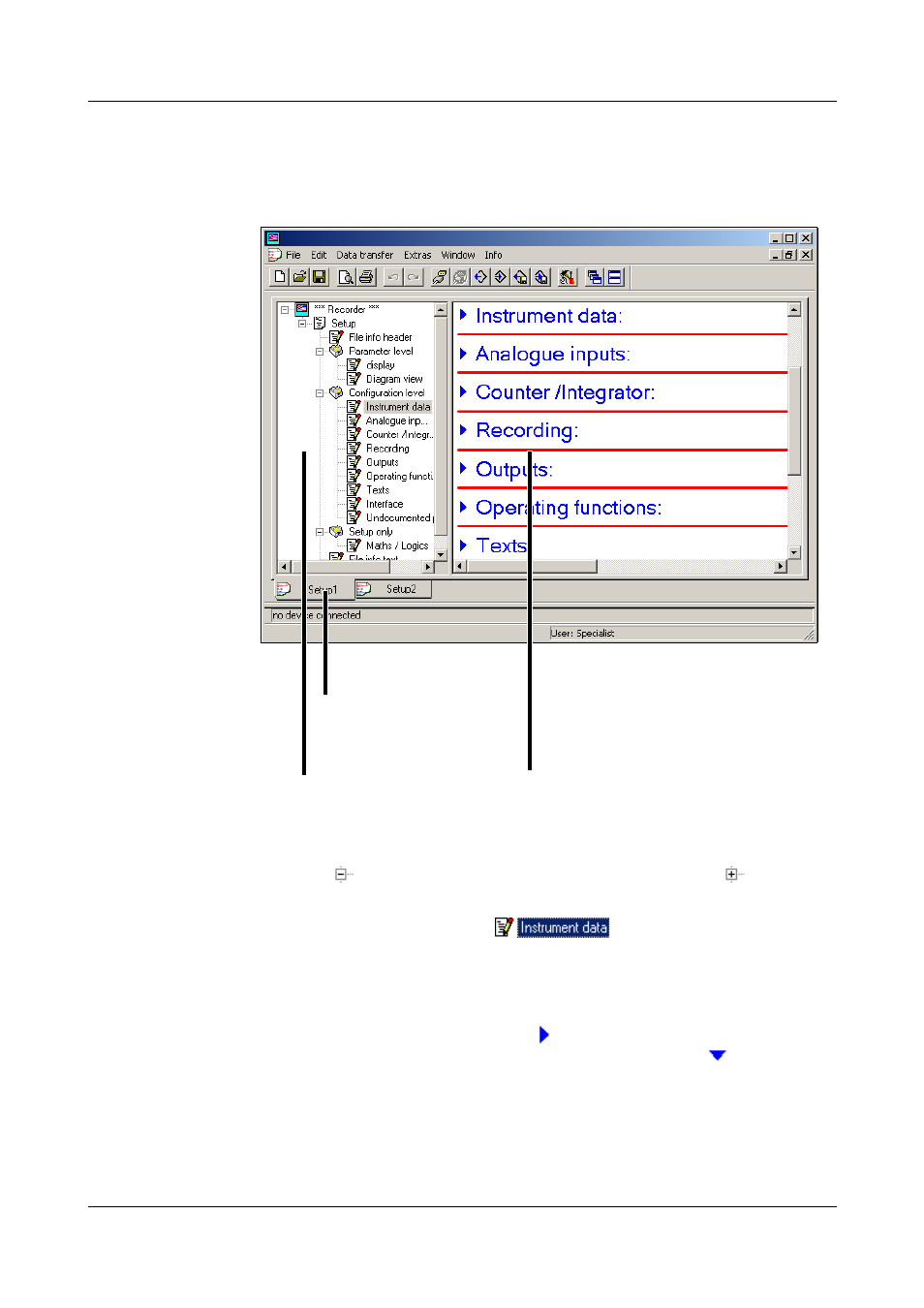

Navigation tree
for finding the settings
quickly
Dialog window
The settings are displayed here.
Current setup
