47
3 Operation and visualization

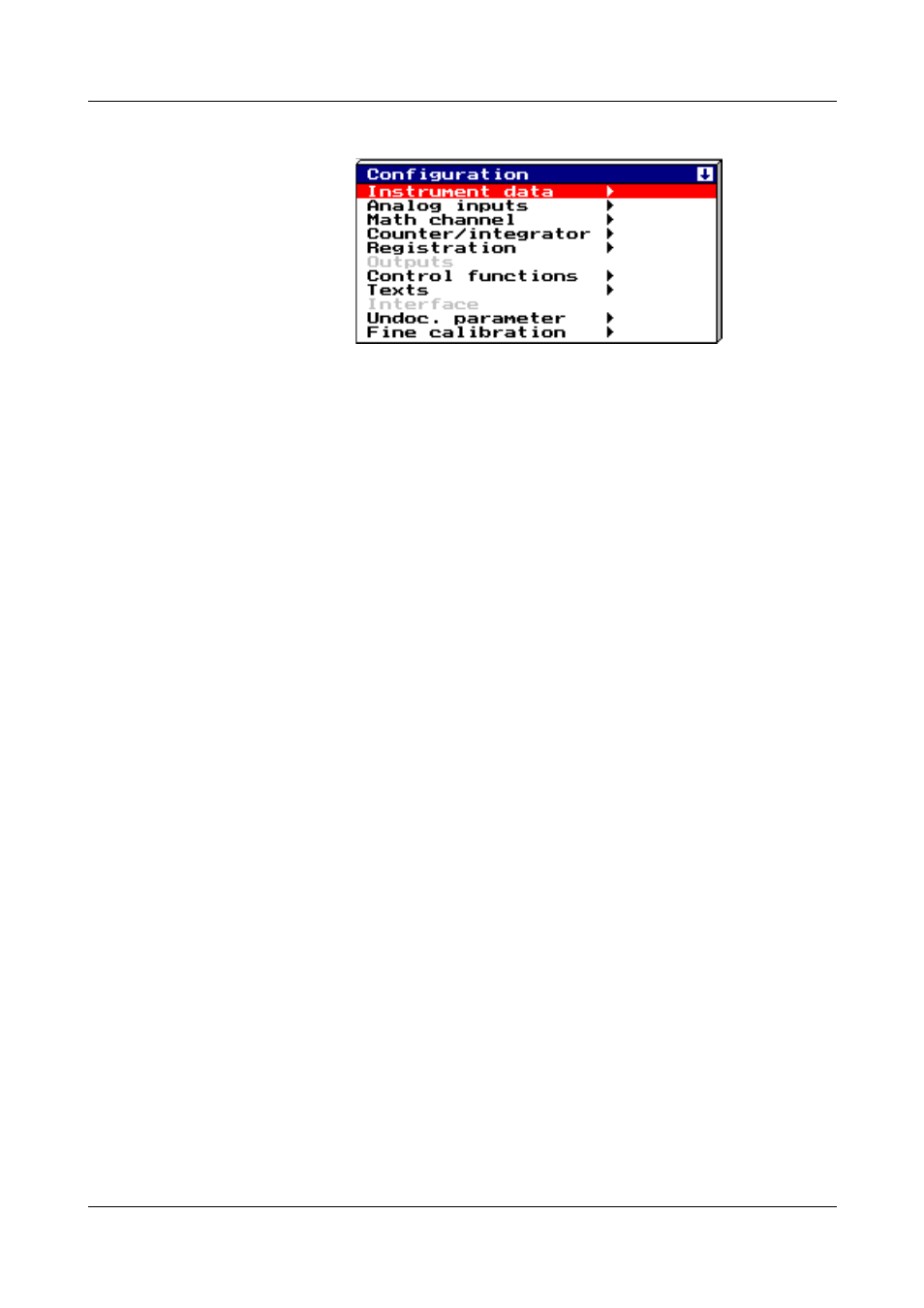

The configuration of the recorder is sub-divided into the following levels:
v Chapter 4 “Configuration parameters”
3.5 Event list
Events Various events can initiate texts which are incorporated in the event list and
saved to the internal memory or CF card. Events may include:
- alarms triggered by out-of-limit conditions on individual channels,
- external texts triggered through binary inputs or logic channels,
- system messages (e.g. power ON/OFF, summer/winter time changeover),
- count-up of a counter,
- any message text of up to 20 characters that was transmitted to the device
via one of the interfaces.
Event
definition For all events, except for system messages, it is possible to configure
whether:
- the message text is to be included in the event list,
- the device-internal standard text
- or one of the texts (see below) is used.
Text
assignment The texts (standard texts or 18 freely definable texts) are assigned to events at
the operating level “Configuration” (
v Chapter 4 “Configuration parameters”).
Freely definable
texts 18 texts can be freely defined, up to a length of 20 characters.
