5 Setup program
82

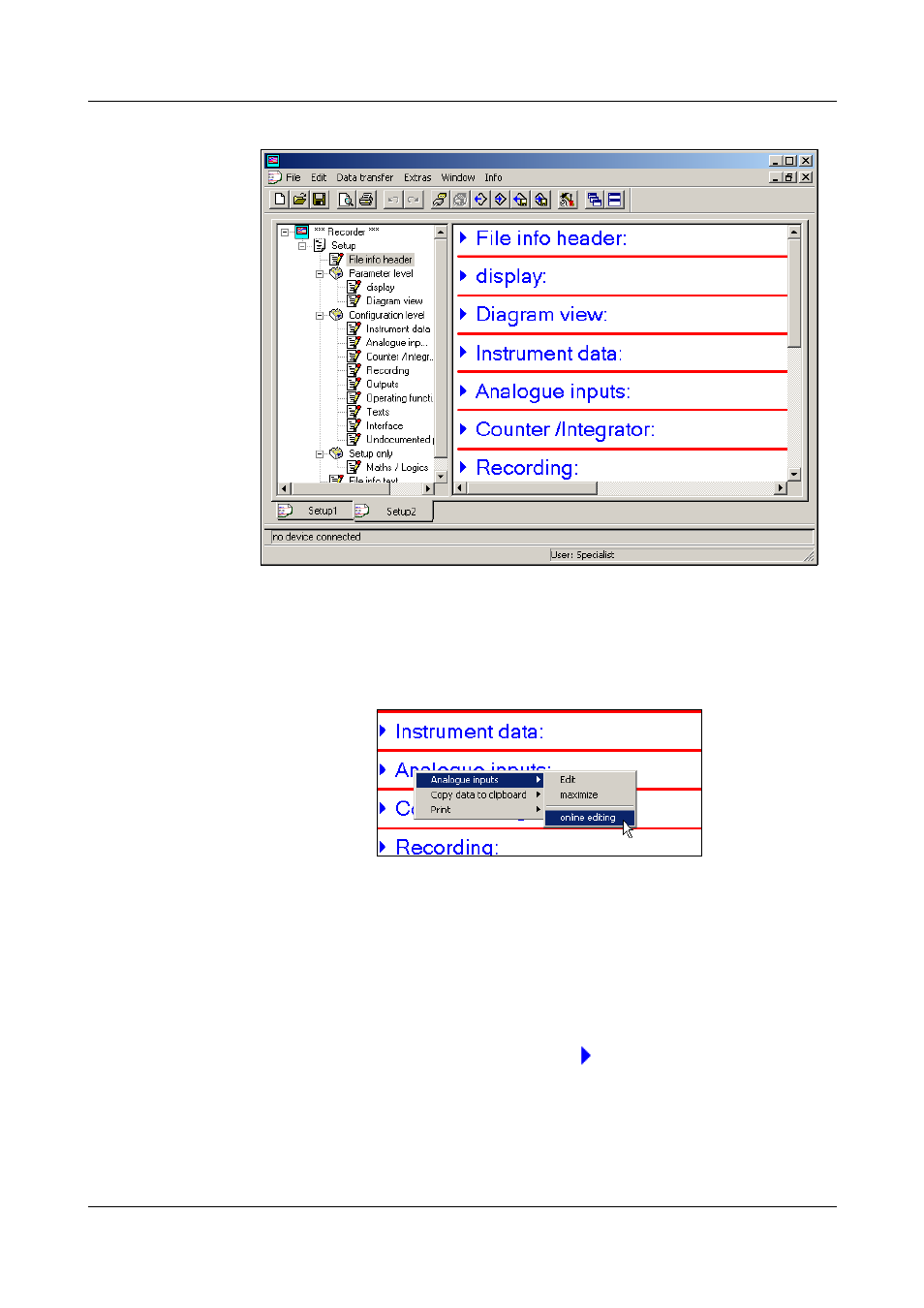

... the window becomes an active window.
Functions
of the right
mouse button If you use the right mouse button in the dialog window, different functions will
be available. These functions concern that part of the configuration on which
the mouse pointer was positioned when the right mouse button was pressed.
Example:
The right mouse button was pressed when it was on the entry “Analog inputs”.
Analog inputs Î Edit
This function starts the change dialog for configuring the analog inputs.
Alternatively, configuring can also be started by a double-click with the left
mouse button.
Analog inputs Î Maximize
This function prompts the display of the current configuration of the analog
inputs. As an alternative, the current configuration can also be displayed by a
click (left mouse button) on “Arrow to right” ( ).
