9 Installation
Extra code 266
(IP65)
The following instructions must be followed when installing the paperless
recorder with extra code 266 (IP65).
- The seal for the control panel must be fitted before the recorder is installed.
- Instead of the 2 mounting brackets, there are 4 wide mounting brackets
that have to be used (one element for each side of the housing).
- The cover plates for closing the cutouts for the mounting brackets must not
be used.

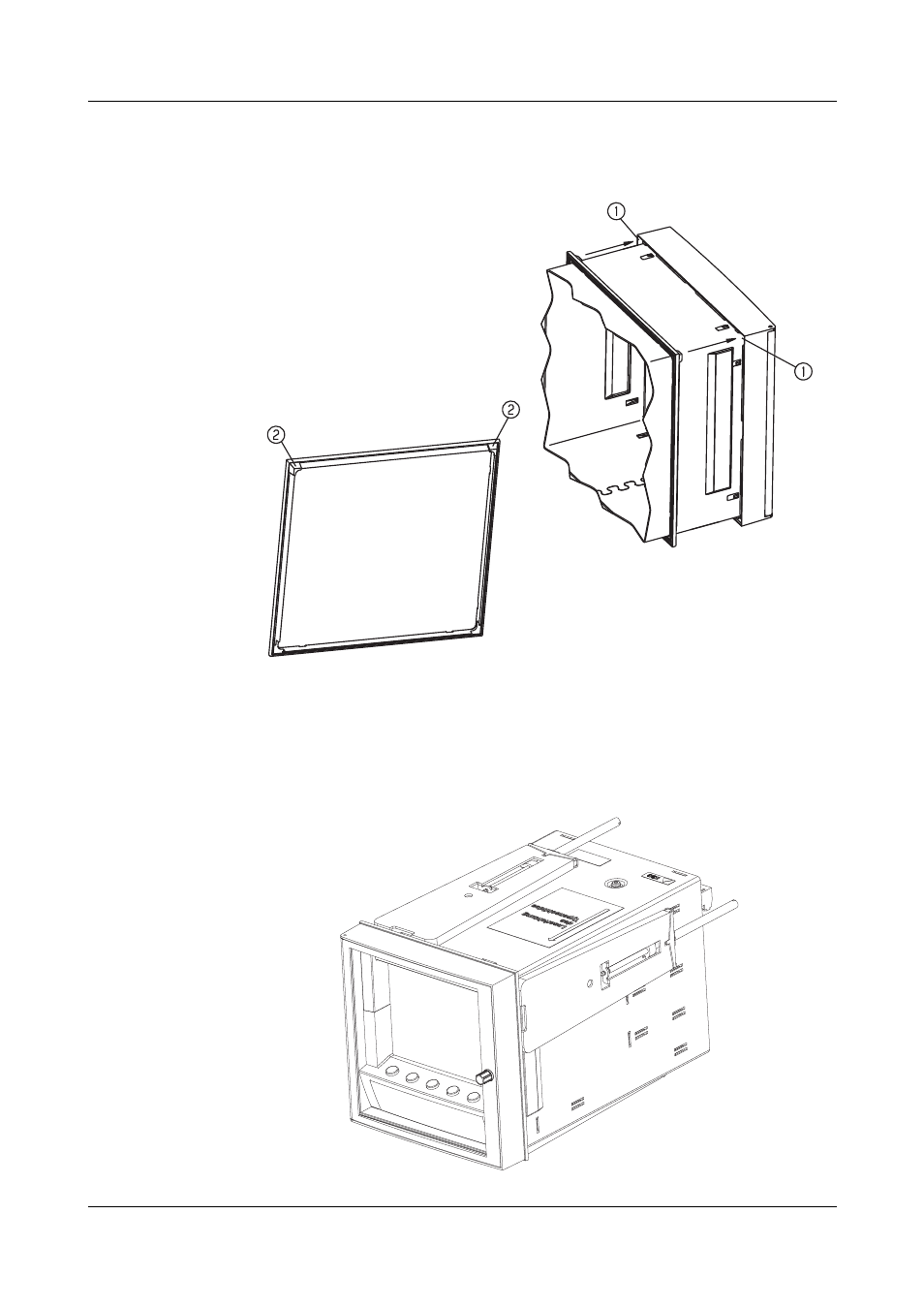

Caution!
Make sure that the seal is correctly
positioned.
The two large indentations
c
on the
front frame must be closed by the two
lugs
d
on the seal.
