31
3 Operation and visualization

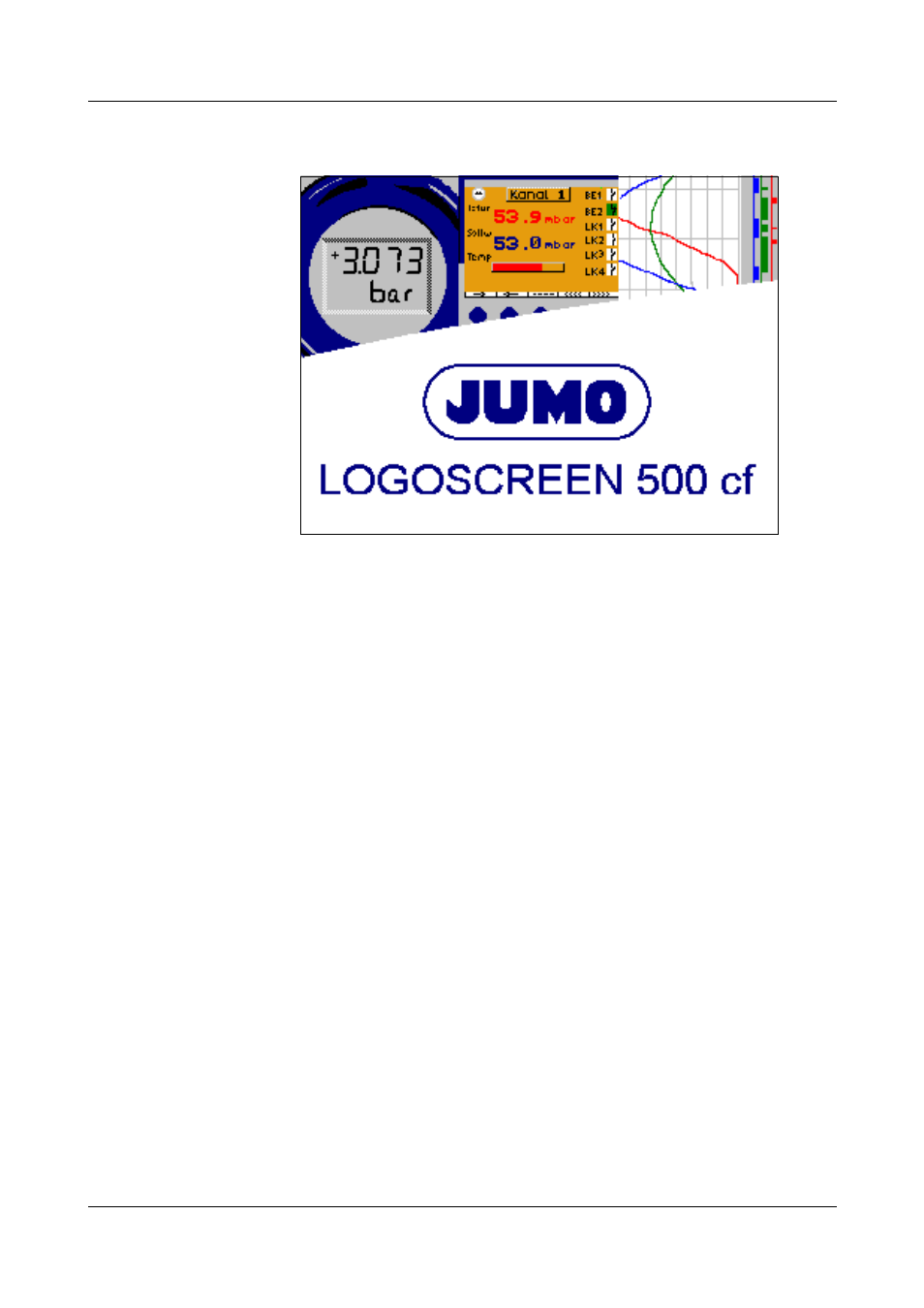

After starting up the paperless recorder by switching on the supply (power
ON), you will see the start logo (company logo).
During screen build-up, the recorder is initialized with the data of the last
configuration.
H
After the initialization phase, the measurement diagram
(visualization level) is displayed.
H
By using the setup program, an individual start logo (bitmap with a
maximum of 16 colors) can be loaded into the instrument, through
the function Extras
Î Start screen.
