10 electrical connection, 1 installation notes, 2 technical data – JUMO 706510 LOGOSCREEN 500 cf Operating Manual User Manual

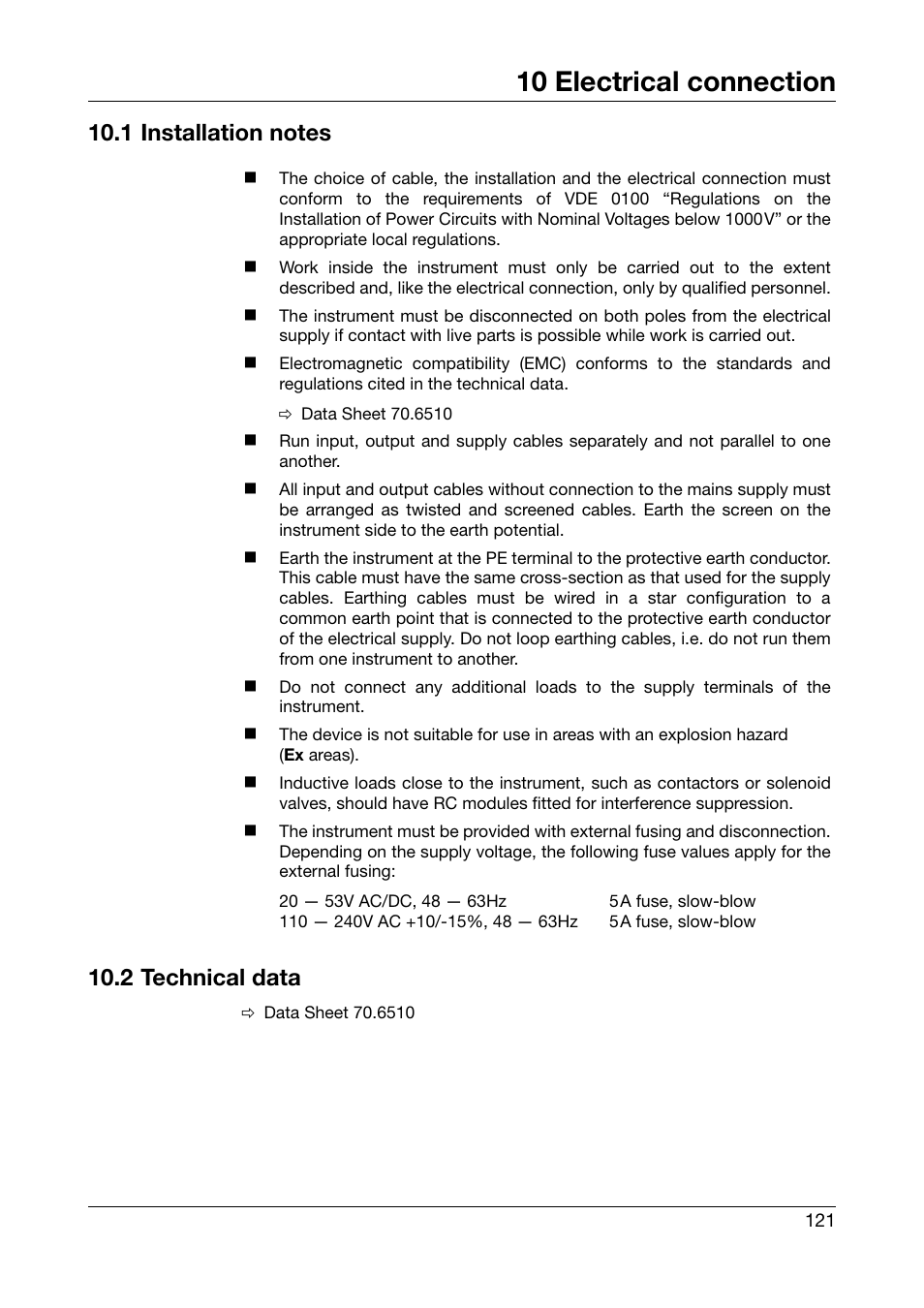

Page 121: Electrical connection
