Figure 8-6 and table 8-3 lists pin signal assignm – INFICON MDC-360C Thin Film Deposition Controller User Manual
Page 119
MDC-360C DEPOSITION CONTROLLER
CONTROLLER INSTALLATION
8-9

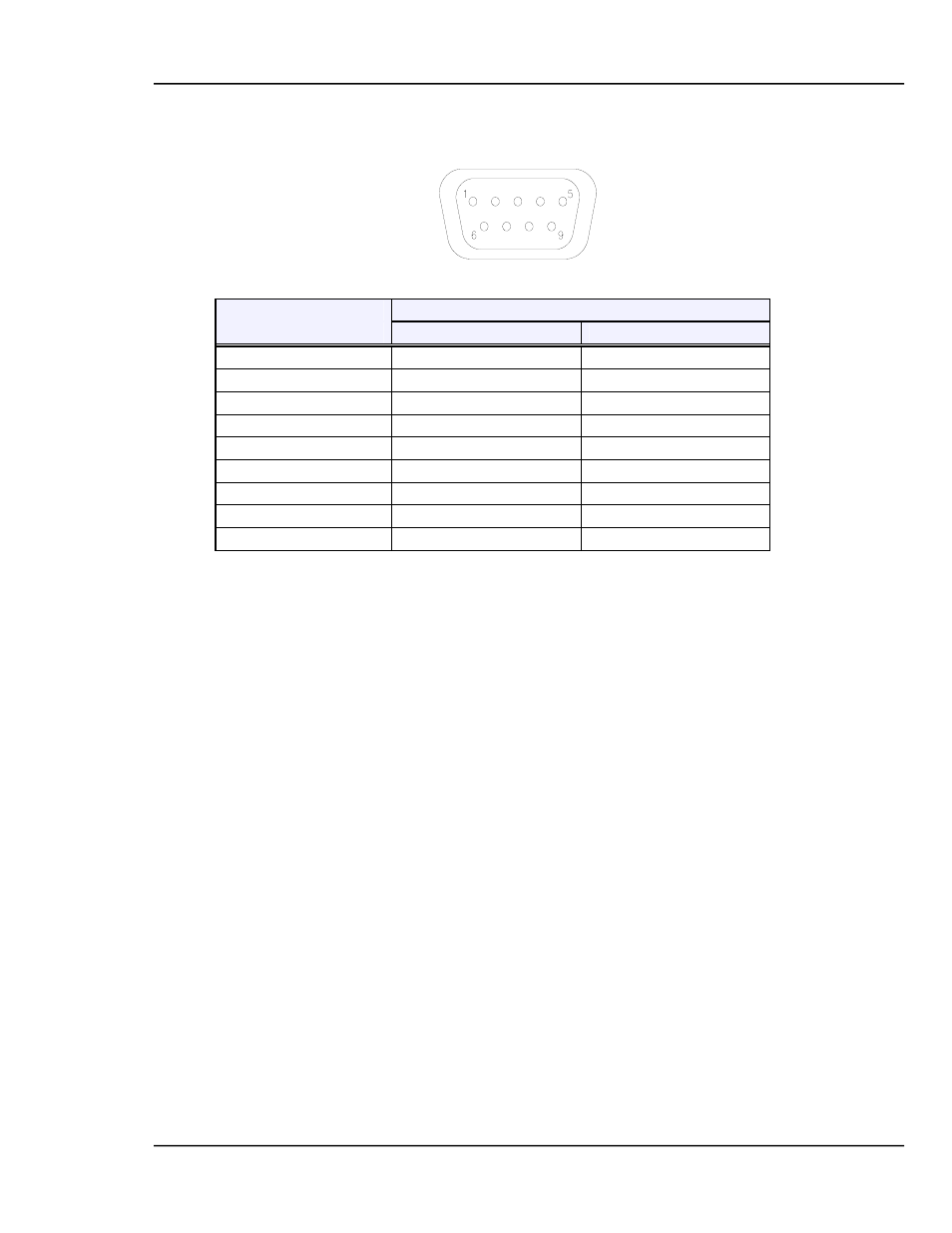

Figure 8-6 D9S DTE Rear-panel RS-232 socket connector
Pin
Signal
Number
RS-232
RS-485
1
Not used
Rx- Input
2
Tx Output
Rx+ Input
3
Rx Input
Tx+ Output
4
Not used
Tx- Output
5 GND
GND
6
Not used
CTS- Input
7
CTS Input
CTS+ Input
8
RTS Output
RTS+ Output
9
Not used
RTS- Output
Table 8-3 D9 Rear Panel RS-232/RS-485 Connector Pin Assignments
