2.3.2
SL3000(XL) Sniffer line with probe display
The probe handle also offers a small display for operating the Protec P3000 remotely
without access to the main unit during normal leak detection operation.
In addition to the display, the sniffer probe offers two press buttons. The left button
will function as the ZERO button in any operating mode. By pressing the left button
the current background reading is set to ZERO. For details on the ZERO function see
section
The right probe button is used for different functions depending on the current
operating mode the Protec P3000 is set to:
•
in standard operation mode:
– no function for Protec P3000
– for Protec P3000XL: switching between
HIGH
FLOW
and
LOW
FLOW
mode
•
in I•Guide mode:
– navigation through I•Guide program (for all configurations)
The probe handle also offers some LEDs in the flange of the sniffer tip in order to
illuminate the location currently being leak tested.

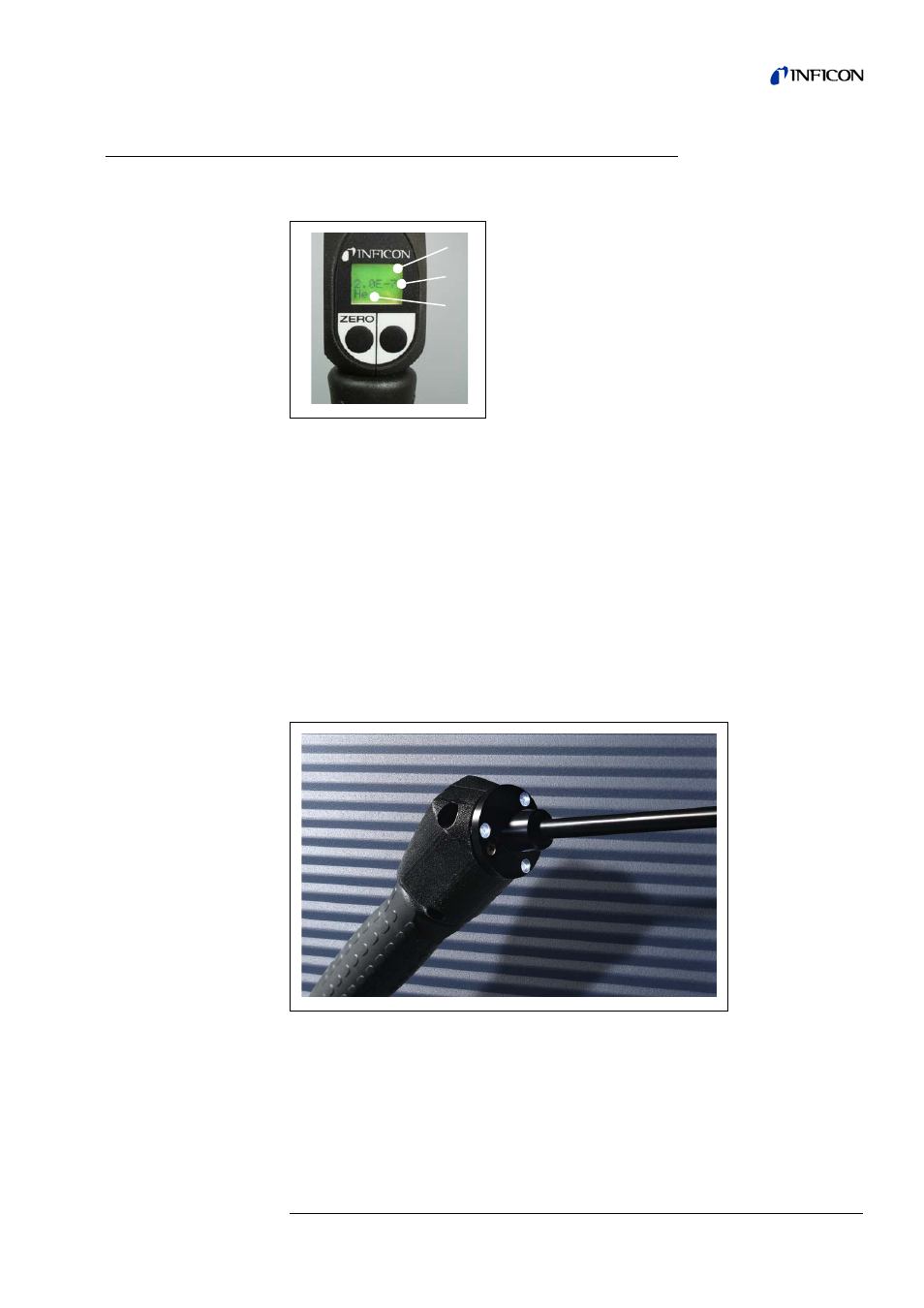

1 Probe display
2 Button
3 ZERO button
Fig. 2-3 SL3000(XL)Sniffer line with probe display
Fig. 2-4 Probe handle
1
3
2
