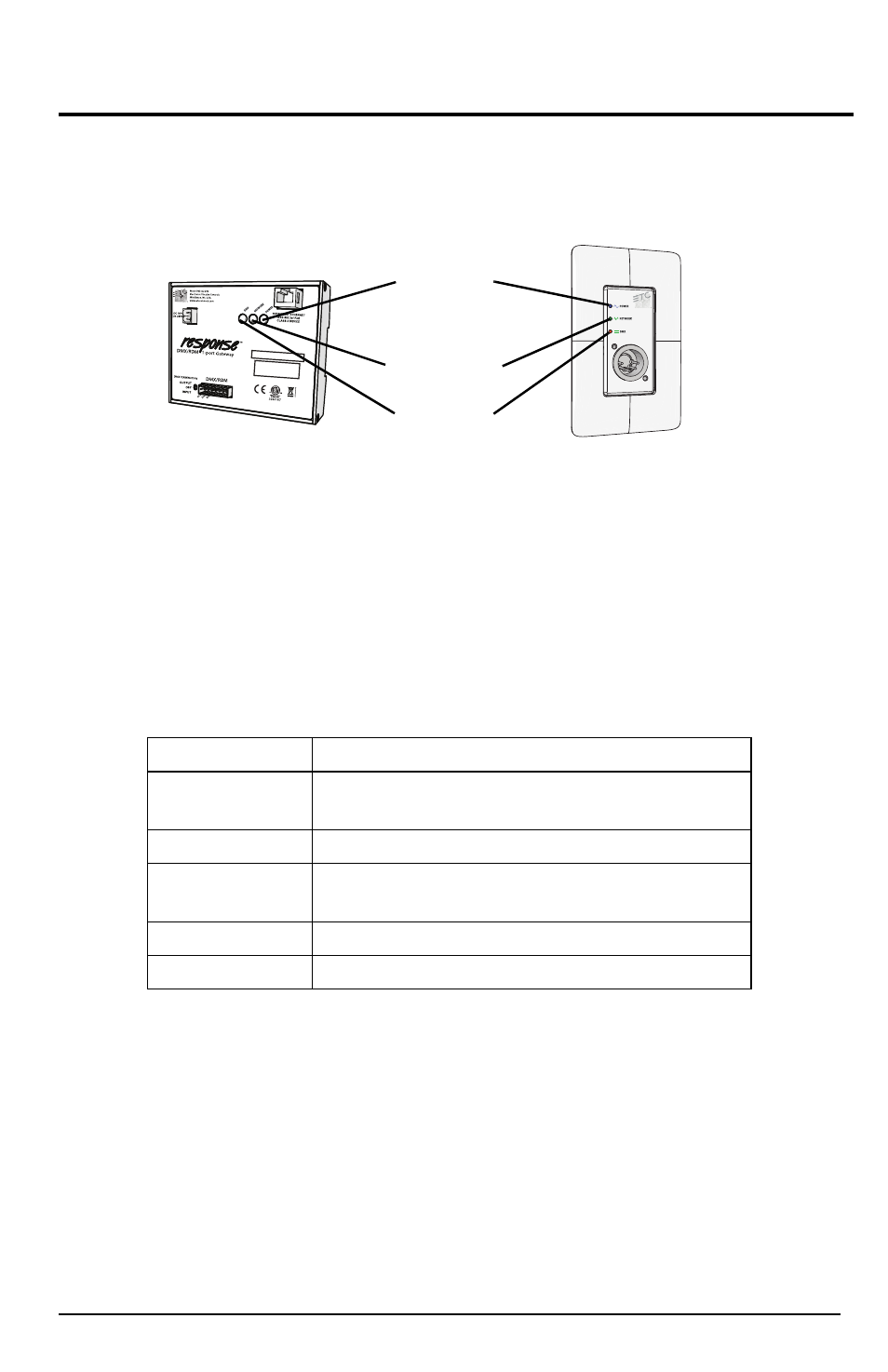

Status and Feedback LEDs
Once properly connected to the network, the LEDs will provide the following
feedback.
Power LED
• A constant blue LED indicates power to the gateway
Network LED
• A constant green LED indicates a valid network connection is
present.
Status LED
• The status LED may show as red, green or orange depending on
the status of the gateway. The following chart details the possible
LED status messages
Solid Orange
the port is in Download Mode
Blinking Red
sACN cannot be generated because valid DMX
is not being received
Solid Red
valid DMX is being received
Blinking Green
DMX output cannot be generated because valid
sACN is not being received.
Solid Green
valid sACN is being received
LED off
the port is off
Power LED
Network LED
Status LED
