30 Sensor3 CE Rack (ESR3) Installation Manual
taper pin through the washers and into the hole on the lower hinge.

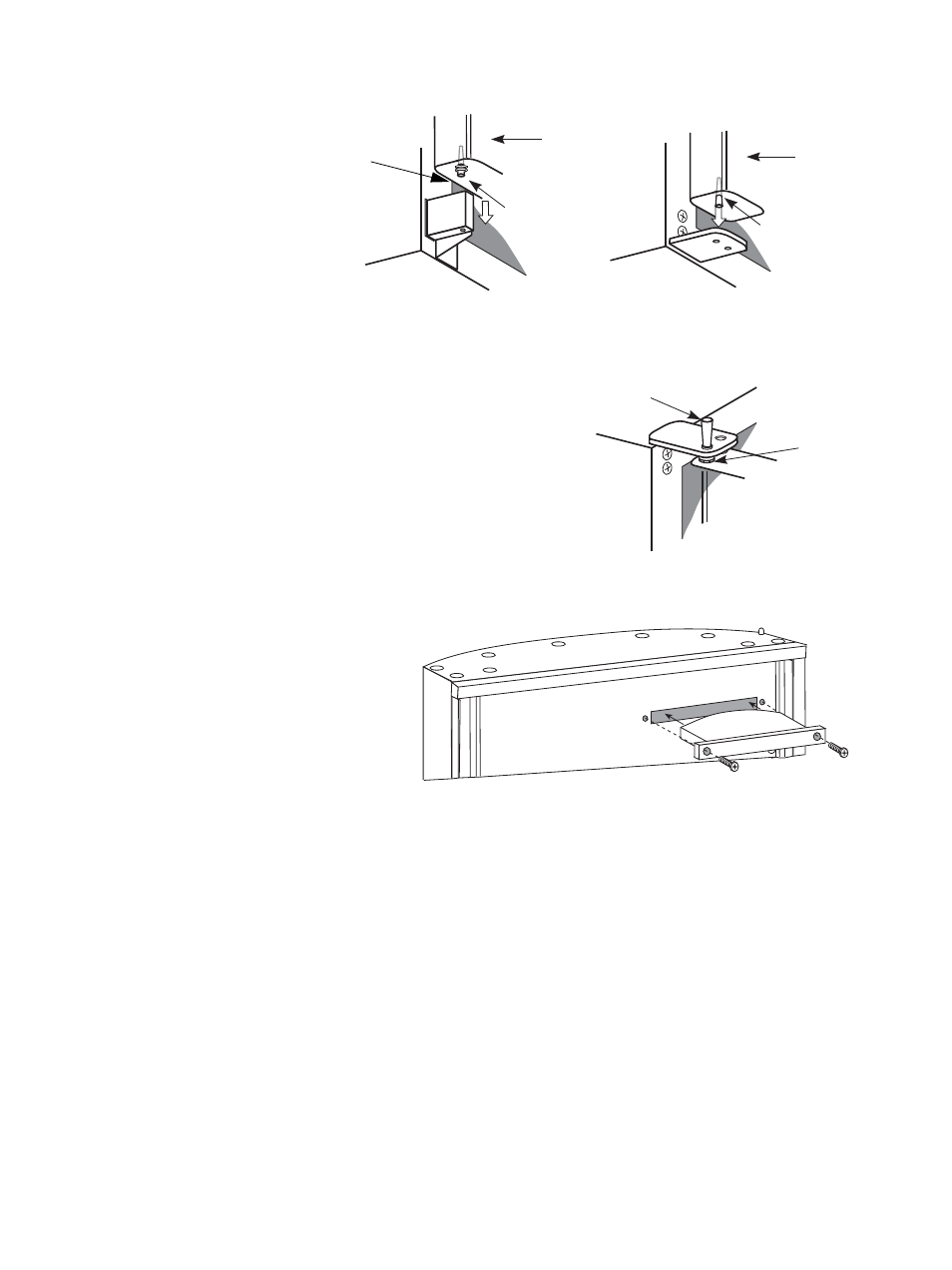

Figure 31: Installing the bottom taper pin
Step 3: Hold the door in place and insert the other taper pin, narrow end down, through
the top hinge and washer.
Figure 32: Installing the top taper pin
Step 4: Take the Sensor3 beacon block, insert it through the slot on the upper left corner
of the door and secure it with two Phillips head screws (included).
Figure 33: Installing the beacon block
ESR3-48 lower hinge ESR3-12 lower hinge
Door
Taper pin
Door
Taper pin
Washers
Washers
Taper pin
