Installation of Racks
11
Rack Cabling Access
ESR3 racks have removable top and bottom access panels.
Conduit Connections
Step 1:
Remove the desired access panel from the rack.
Step 2:
Cut access holes in the top and bottom access panels.
Step 3:
Install your cabling into the holes.
Step 4:
Re-install the access panel so that there are minimal air gaps.
.
Trunking or Wire Trough Connections
Step 1:
Remove the desired access panels.
Step 2:
Cut suitable openings to mate with the trunking or trough using a jigsaw or
hacksaw.
Step 3:
Reinstall panel on to rack
Step 4:
Install a fiche paper lining or grommeting material in the access panel opening.
Step 5:
Position the trunking or wire trough above the prepared opening.
W A R N I N G :
Cutting holes in the rack plates in situ may introduce metal debris into the
dimmer cabinet.
N o t e :
Wire openings must have fittings or linings to protect cable insulation from
damage by sharp metal edges.

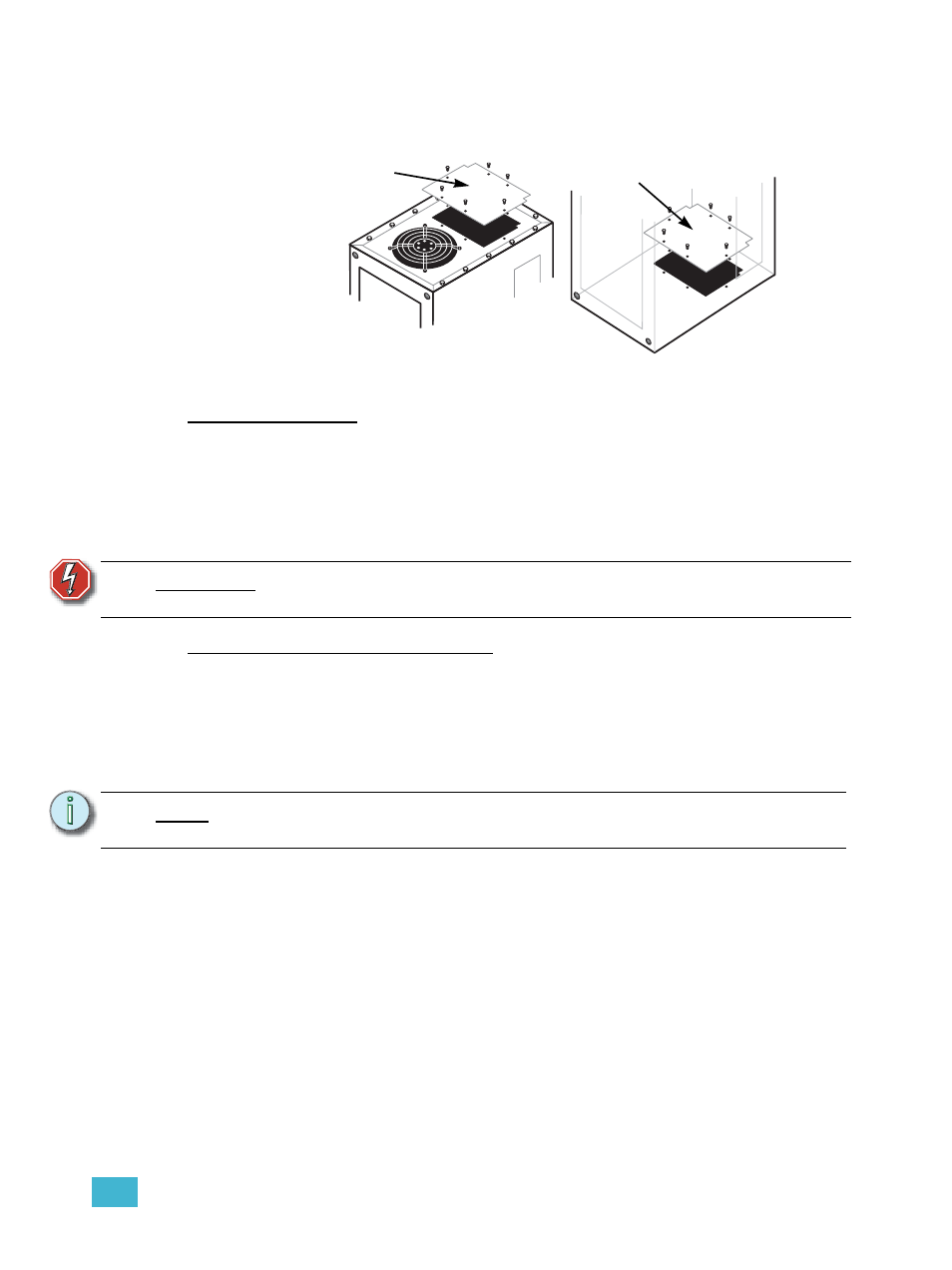

Figure 8: ESR3 access panels
Bottom access panel
Top access panel
