with two Phillips head screws (included).

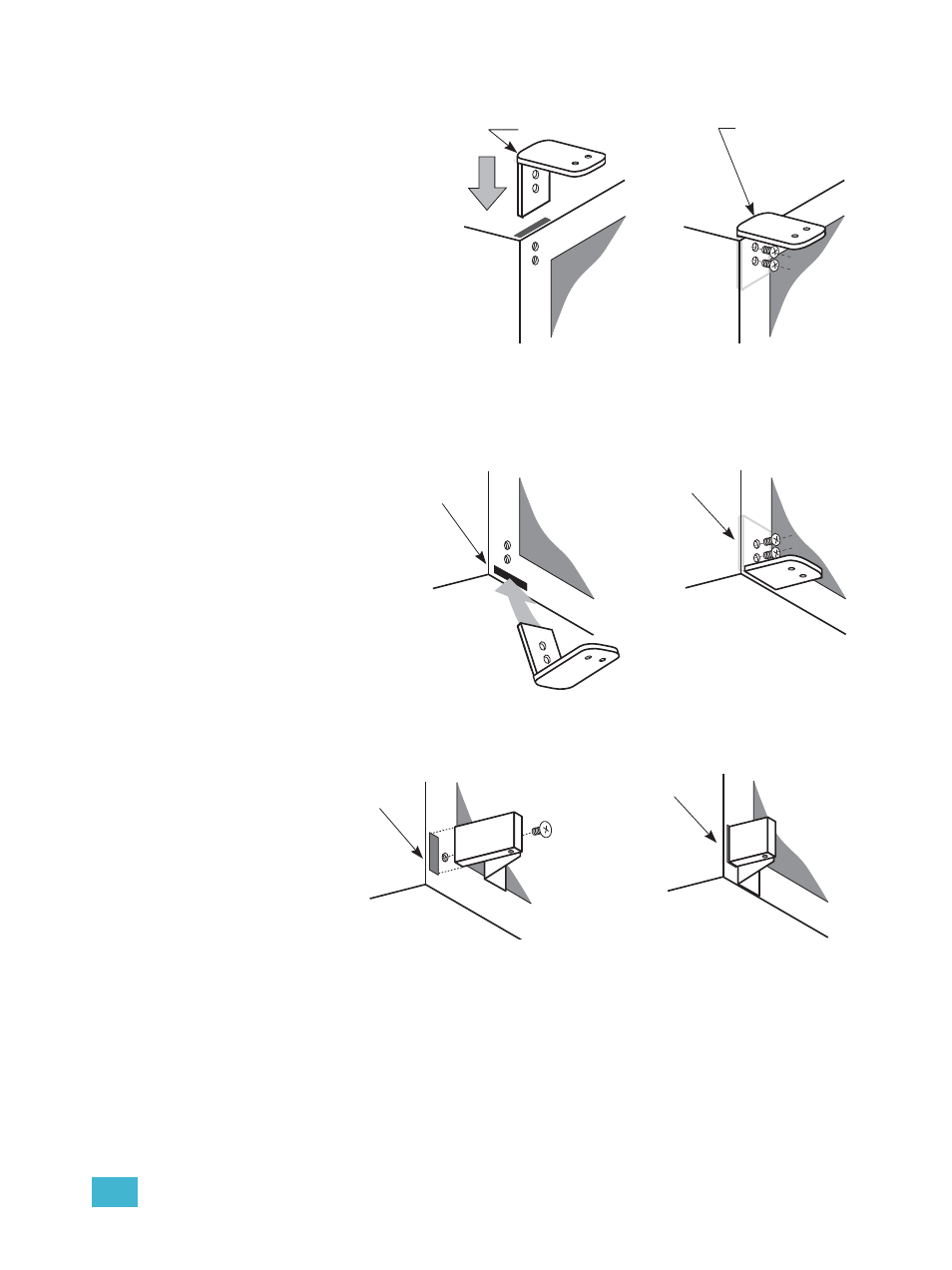

Figure 28: Attaching the top door hinge
Step 2: The bottom hinge on the ESR3-12 is a different design from the one used on the
ESR3-24, ESR3-26 and ESR3-48.
•
ESR3-12 – Insert the bottom hinge into the slot on the bottom of the rack and
attach it to the frame with two Phillips head screws (included).
Figure 29: Attaching the ESR3-12 bottom hinge
• ESR3-24, ESR3-36 and ESR3-48 – Remove the large Phillips head screw,
insert the hinge into the slot and secure it by replacing the screw.
Figure 30: Attaching the ESR3-48 bottom hinge
• Drive the narrow end of one taper pin into the bottom of the door. Put the
Top hinge being inserted Top hinge in place
Bottom hinge
being inserted
Bottom hinge
in place
Bottom hinge
in place
Bottom hinge
being inserted
