sealed inside the relays to eliminate arcing and corro-
sion, thereby increasing reliability.
CONTROLLER TEMPERATURE RANGE—
Operating: +32°F to +140°F (0°C to +60°C).
Storage: –40°F to +140°F (–40°C to +60°C).
DETECTOR TEMPERATURE RANGE—
Operating: –40°F to +167°F (–40°C to +75°C).
Storage: –67°F to +185°F (–55°C to +85°C).
DETECTOR HUMIDITY RANGE—
0 to 95% relative humidity.
DETECTOR ENCLOSURE MATERIAL—
Copper-free aluminum (red) or 316 stainless steel, with
optional stainless steel mounting bracket.
DETECTOR ENCLOSURE RATINGS—
FM approved and CSA certified for Class I, Groups C
and D, and Class II, Groups E, F, and G hazardous
locations. NEMA 4 enclosure. BASEEFA/CENELEC
certified flame-proof for EExd IIB T6; IP66 enclosure
rating.
RFI/EMI HARDENED—
Detector designed to meet RFI and EMI immunity
requirements of MIL STD 461, 462, and 463.
DIMENSIONS—
See Figures 5, 6, 7, and 8.
SHIPPING WEIGHT—
R7495D Controller
4.4 pounds (2.0 kilograms)
C7052J Detector
Aluminum: 6.0 pounds (2.7 kilograms).
Stainless Steel: 14.0 pounds (6.4 kilograms).
OPTIONS
Power supplies are available for operating the R7495D
and C7052J from line (mains) voltage.
The Q4004 Mounting Cage is designed for holding up
to eight micro-module devices and is recommended for
ease of installation and servicing. Mounting cages that
hold fewer modules are also available. See Figure 18.
Optional filler panels (part number 002188-001) can be
used to cover unused sections of the mounting cage.
Locking devices must be used on detector housings to
comply with applicable regulations in some areas
(BASEEFA/CENELEC).
Q1113 Air Shields for areas where there is an abnormal-
ly high level of airborne contaminants. Two Q1113 Air
Shields are required for each detector.
Q9001G Swivel Assembly (part number 004404-001) for
easy mounting and sighting of detector assemblies.
T2P/Q1201 Laser with holder for sighting and identifying
the detector cone of vision.
RESPONSE CHARACTERISTICS
The response time of the detector is a function of fuel,
fire size, distance, orientation of the fire source and the
field programmable controller settings. As with all fire
tests, results must be interpreted according to the indi-
8

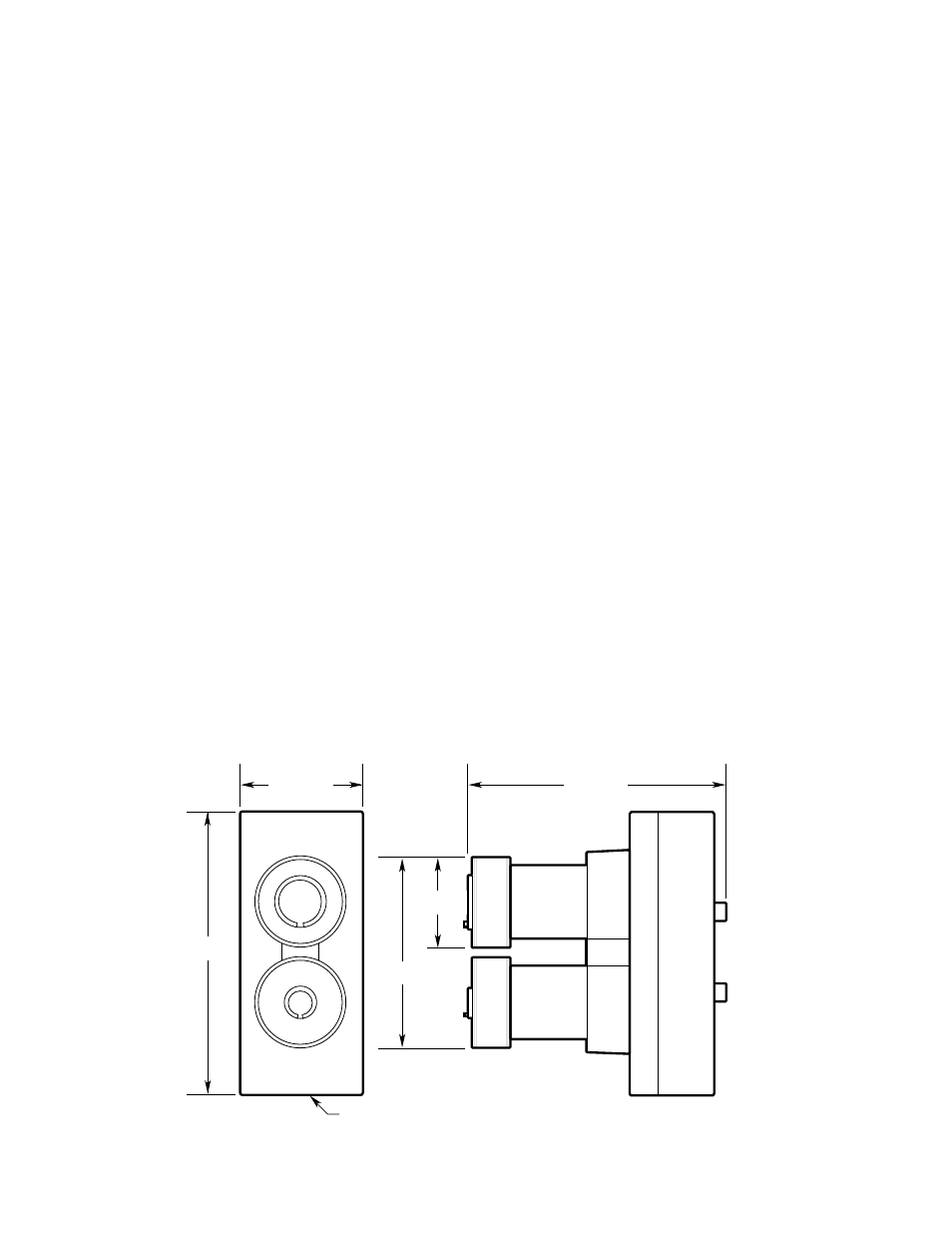

Figure 5—Detector Dimensions in Inches (Millimeters)
C1047
3.38 (85.8 MM) 7.11 (181 MM)
7.81
(198 MM)
2.5 DIA.
(64 MM)
5.25
(133 MM)
CONDUIT ENTRY 3/4 NPT OR 25 MM
