9
Wiring
NOTE: The oven must be directly
hardwired to the disconnect switch
on the equipment panel. A one (1)
inch conduit run is provided from the
rear of the lower oven compartment,
which is marked LINE CONNECTIONS to the front equipment panel, through which the
line voltage power wiring can be connected to the disconnect switch labeled LINE
CONNECTIONS in the front of panel. Consult the electrical drawings included with the
oven for wiring details. All wiring to be completed by properly trained and licensed
personnel.

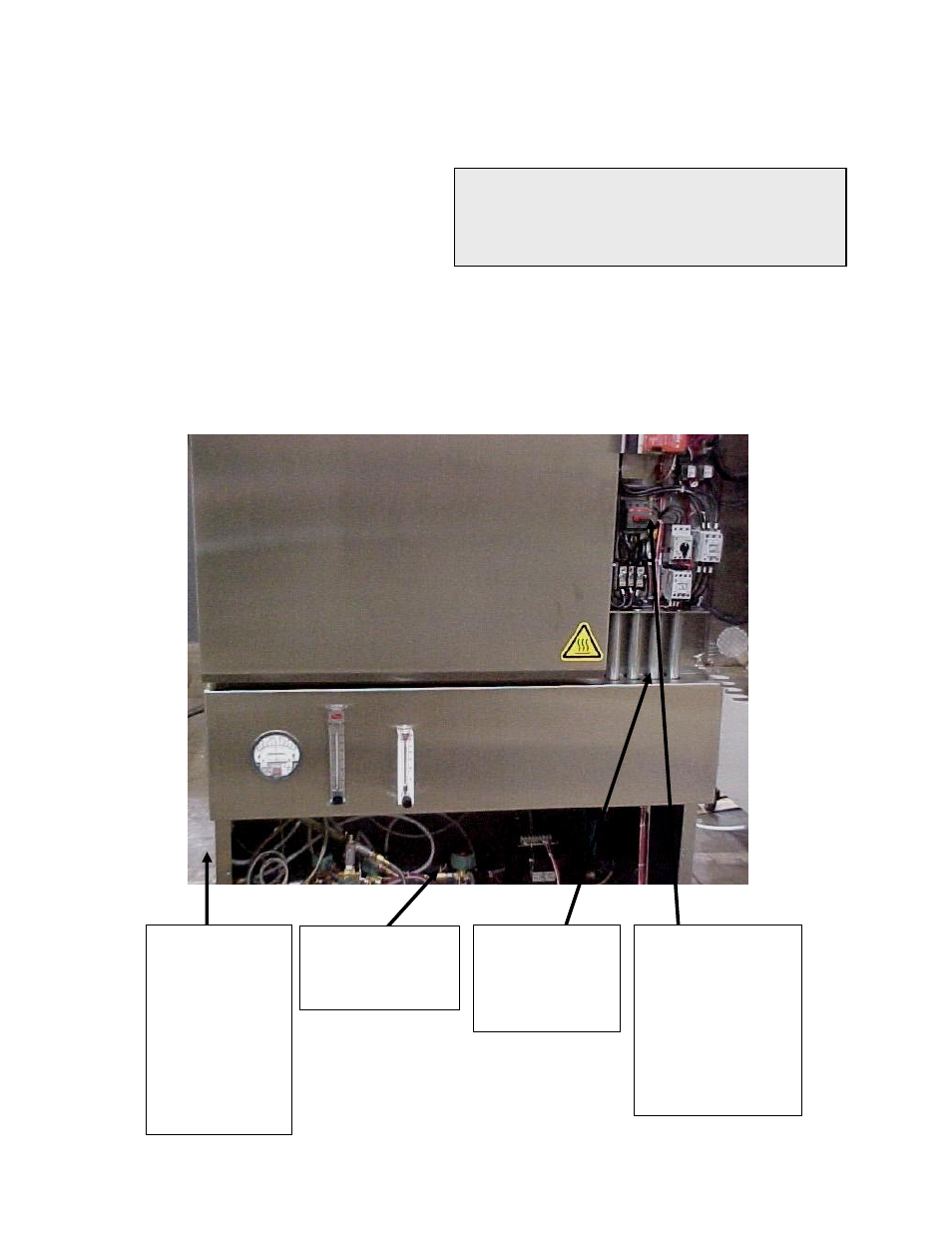

LCC/LCD2-14-3 LINE CONNECTION DESCRIPTION (ALL SERIES)
WARNING:
All grounding and safety equipment must be
in compliance with applicable codes,
ordinances and accepted safe practices.
Power wires are
connected to this
disconnect switch
and ground bus.
Approximately 70”
(1.77 meters) of wire
length is required
from the entrance on
the rear of oven to
these connections. Power wires are
routed through
this unused
conduit to main
equipment panel. Conduit for power
wires are routed
through this
compartment. Hole for conduit
fitting provided
on rear of oven
marked LINE
CONNECTIONS
for customer
power. See
LCC/LCD-14N-3
POWER &
EXHAUST
CONNECTIONS.
