One can choose either 568A or 568B definition. If one want to make a crossover cable, one should use
568A and 568B definition respectively in each terminal of a UTP cable.

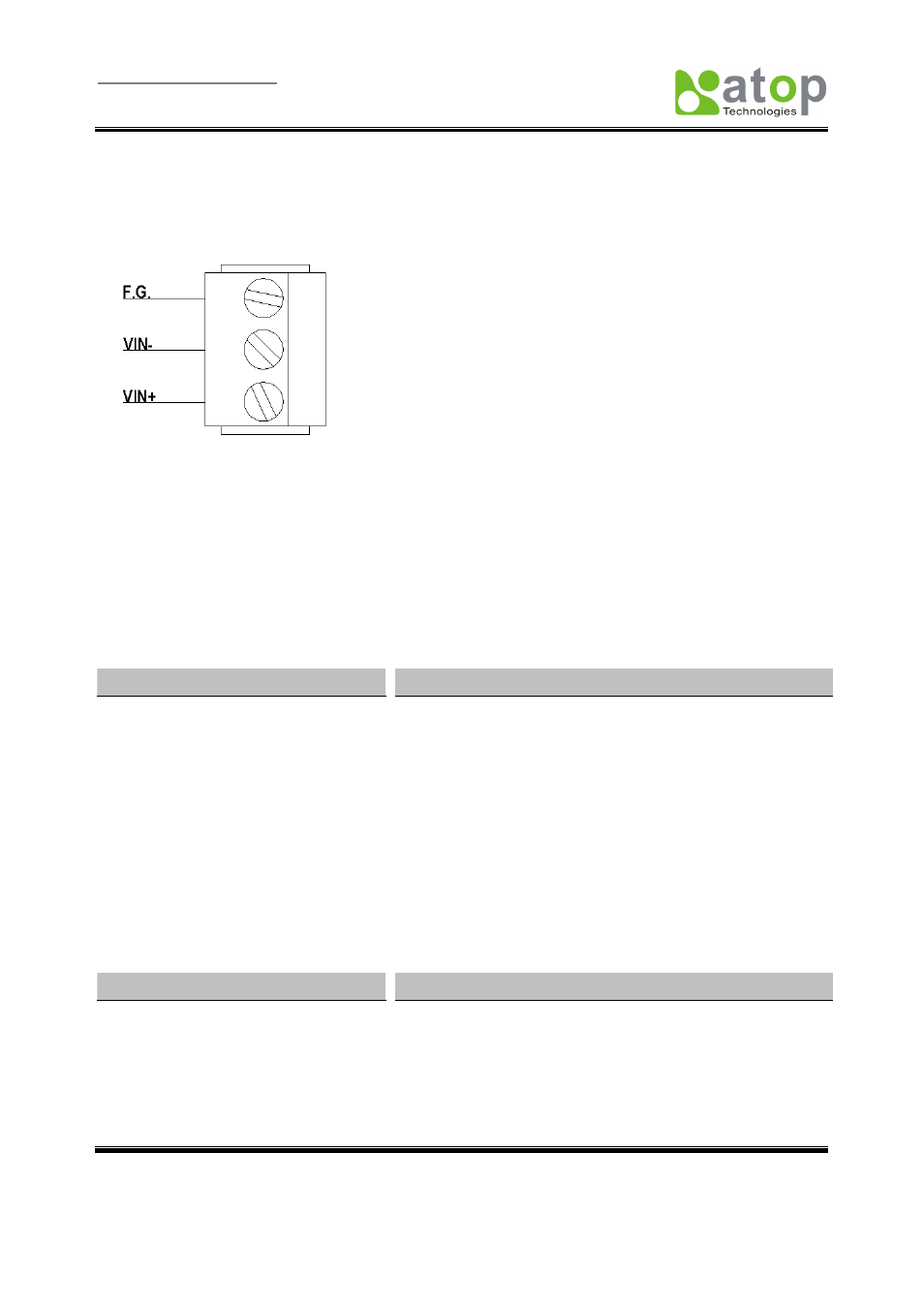

A.3.3 Power terminal block connector
A.4 Buzzer/LED Message
A.4.1 Buzzer
“ ^ “: Beep twice
“ = “: Beep off
Message Description
^===^===^===^===^===^===^...
(1sec)
Watchdog problem, return service is required
^^^^^^^^^^^^^^^^^^^^^^^... Memory problem, return service is required
^==^========^^
(5sec)
Startup OK but AP firmware is disabled
^==^========^^^
(5sec)
Startup OK and AP firmware is enabled
Table 1. Buzzer Message
A.4.2 LAN LED
Message Description
LED Off No data is transmitting on Ethernet
LED blinking Data is transmitting on Ethernet
Table 2. LAN LED Message
