Chapter 6. Multi-Service Zones

AirLive MW-2000S User’s Manual

STEP 20

﹒

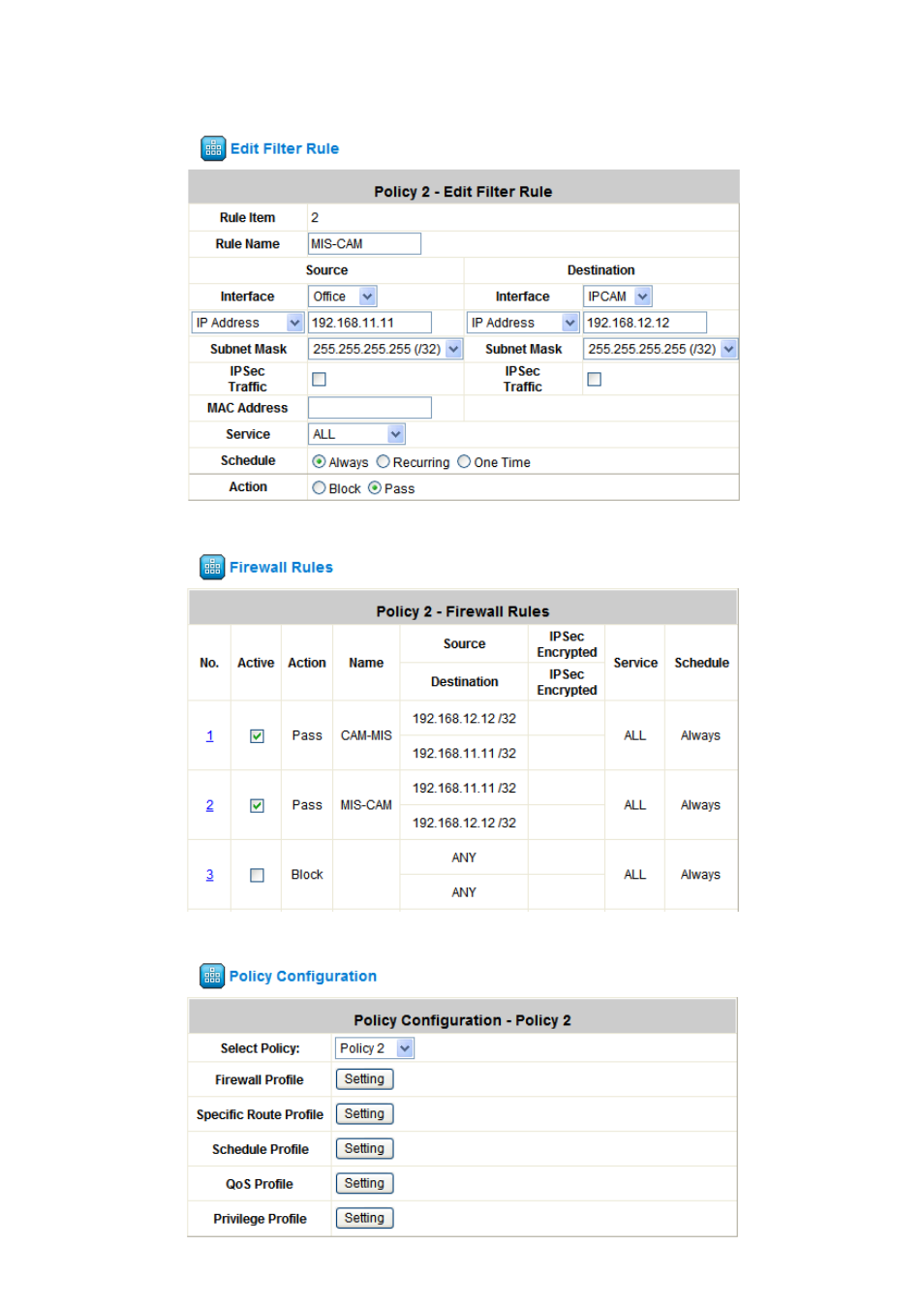

Enter the second rule and input the Rule name, select Source Interface as Office and specify the IP
address with 192.168.11.11; select Destination Interface as IPCAM and specify the IP address with
192.168.12.12; then enable the Action to Pass.

STEP 21

﹒

Enable the Active of first rule, and click Apply to save the setting.

STEP 22

﹒

Enter User Authentication Æ Policy Configuration, and press QoS Profile button.
