Chapter 3. Base Installation
AirLive MW-2000S User’s Manual
7
y Power:
o Light on: The power is switched on.
o Light off: no power connected.
WAN1/WAN2: The two WAN ports are connected to a network which is not managed by the AirLive MW-2000S
system, and this port can be used to connect the ATU-Router of the ADSL, the port of a cable modem, or a switch or
a hub on the LAN of a company.
LAN1~LAN4: Clients’ machines connect to AirLive MW-2000S via LAN ports. Each LAN port can be configured to
one of the two roles, controlled or uncontrolled. The differences of these two roles for a client connected to are:
¾ Clients connected to the controlled port need to be authenticated to access network.
¾ Clients connected to uncontrolled port don’t need to be authenticated to access network and can access the
web management interface.

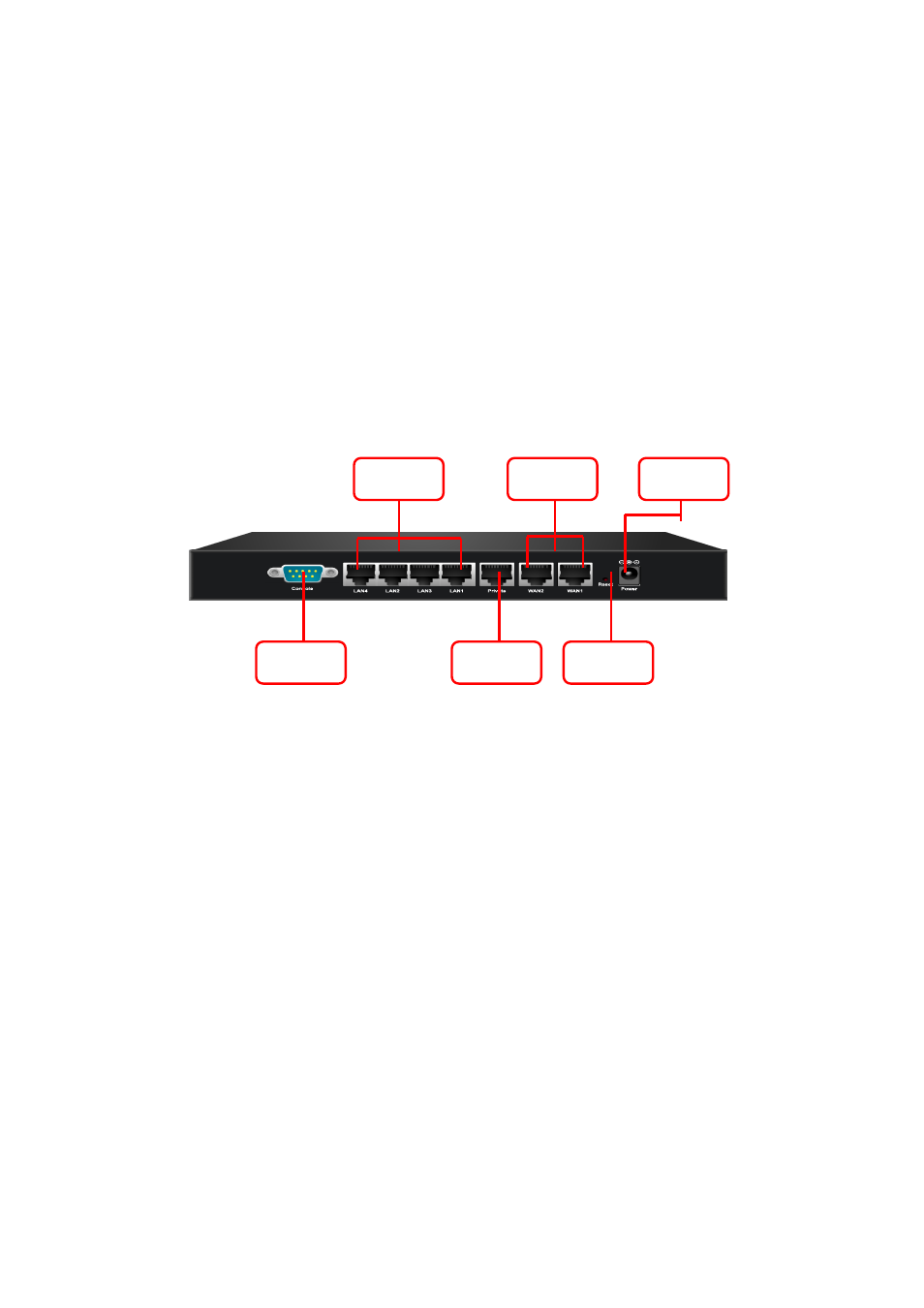

Rear Panel
y Reset: Press this button to restart the system.
y Console: The system can be configured via a serial console port. The administrator can use a terminal
emulation program such as Microsoft’s HyperTerminal to login to the configuration console interface to change
admin password or monitor system status, etc.
y DC 5V: The power adapter attaches here.
y LAN1~4: Connects to LAN1~4 port to access the network with authentication.
y Private: Connects to the private port to access the web management interface without authentication.
y WAN1~2: Connects to the Intranet or Internet by Switch.
LAN1 ~ 4 WAN1 ~ 2 DV 5V
Private Console Reset
