AirLive MW-2000S - Manual (Page 107)

Chapter 7. Web Interface Configuration
AirLive MW-2000S User’s Manual 102
7.2.1.4 Authentication Method - LDAP
The system supports authentication by an external LDAP authentication database. There are two
sets of LDAP server provided by the system, primary and secondary, which are for fault tolerance.

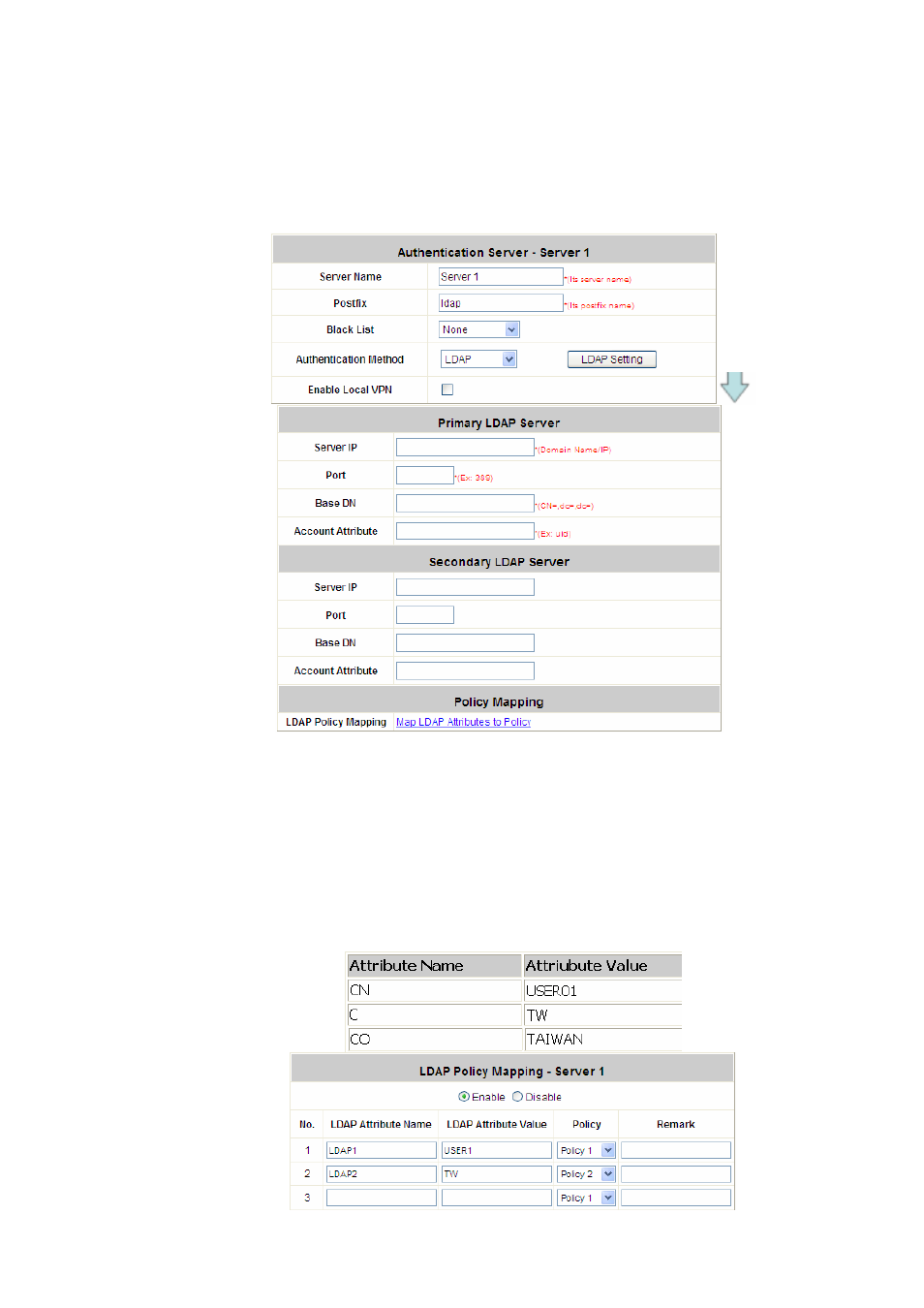

Click the hyperlink Configure for further configuration. Enter the related information for the primary
server and/or the secondary server (the secondary server is not required). Information is required for
fields with red asterisks. These settings will be effective immediately after clicking the Apply button.
y Server: The IP address of the external LDAP Server.
y Port: The authentication port of the external LDAP Server.
y Base DN: The Distinguished Name for the navigation path of LDAP account.
y Account Attribute: The attribute of LDAP accounts.
y LDAP Policy Mapping: This function is to apply selected policy to certain clients grouped by
LDAP attribute. The clients will be applied with the assigned policy while logging on the system.
To show the attribute name and value, enter Username and Password; press Show Attribute.
The table of Attribute will be displayed. Enter the selected Attribute Name and Attribute Value
from attribute table and Policy to LDAP Attributes Mapping page.
