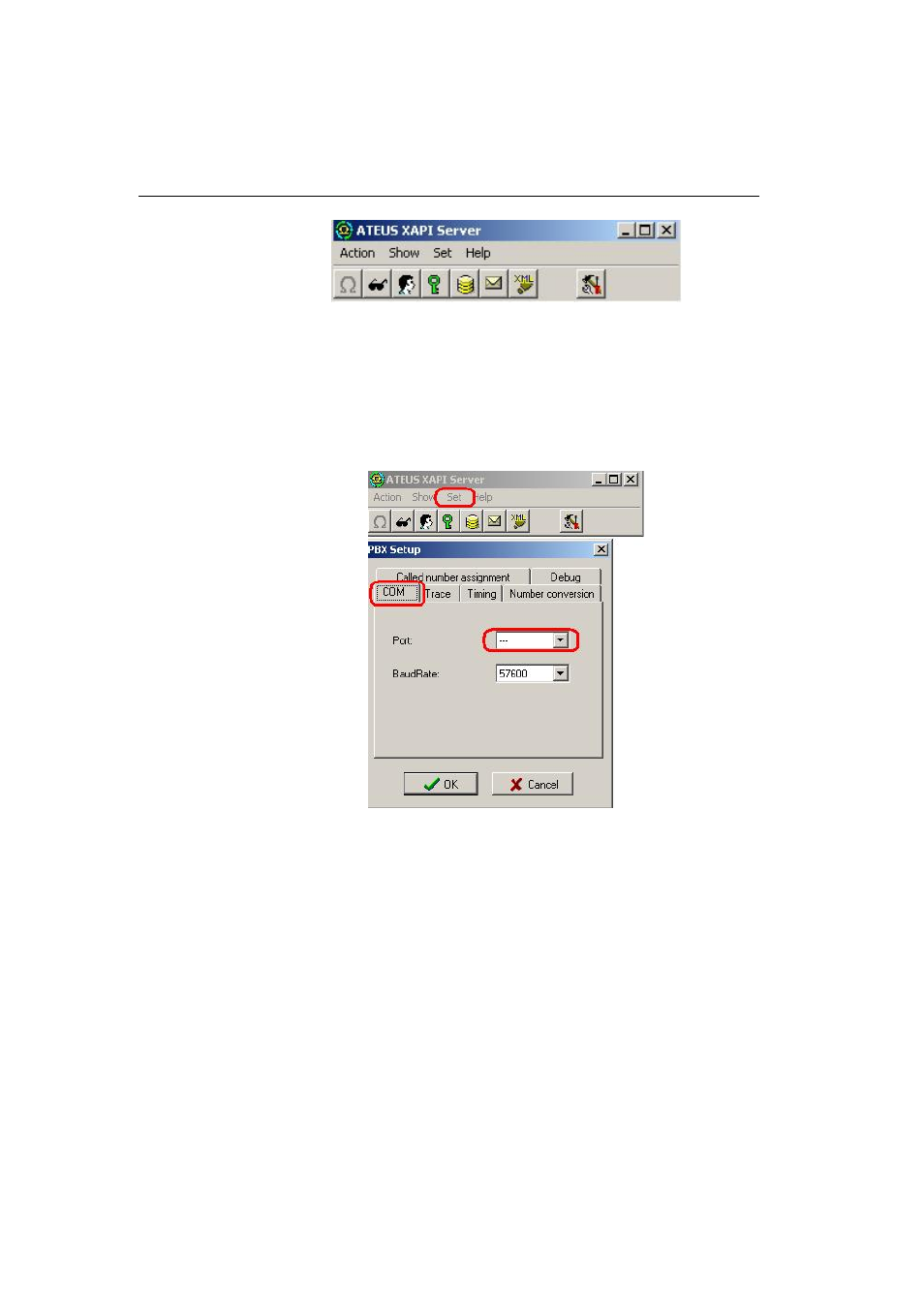

Fig. 58 – Main XAPI server window
At the beginning of configuration is needed to setup the
communication of XAPI server with the gateway. Click to “Set” in
the main XAPI window and then choose “Module-PBX” item. In
the PBX settings disable COM port by selecting “---“ and click
OK (see Fig. 59)
Fig. 59 - Communication configuration
After that setup the COM port the GW is connected to. (Serial
connection is recommended for Voice Callback.) For setup of the
COM port click the “SMS“ button and than “Set“ button or “Set”
in the main XAPI window and then choose “Module-SMS” item.
In SMS setup window select “Ext. gates” and configure
parameters of connected gateway such as port the gateway is
connected to, baud rate, user name and password. At the end do
not forget to choose the VCC automat for processing of incoming
information from the gateway. (See Fig. 60). At the end confirm
changes by clicking “OK“ button.
102
