SECTION 3 - 1CHASSIS & TURNTABLE
3-50 – JLG Lift – 3121171
3.14 DRIVE HUB - REGGIANA RIDUTTORI (S/N
134389 TO PRESENT)
NOTE: After S/N 0300134389 machines may be built with
either Bonfiglioli or Reggiana Riduttori wheel drive
hubs. See Section 3.13, Drive Hub - Bonfiglioli (S/N
100128 to Present). Do not use different hubs on the
same machine.

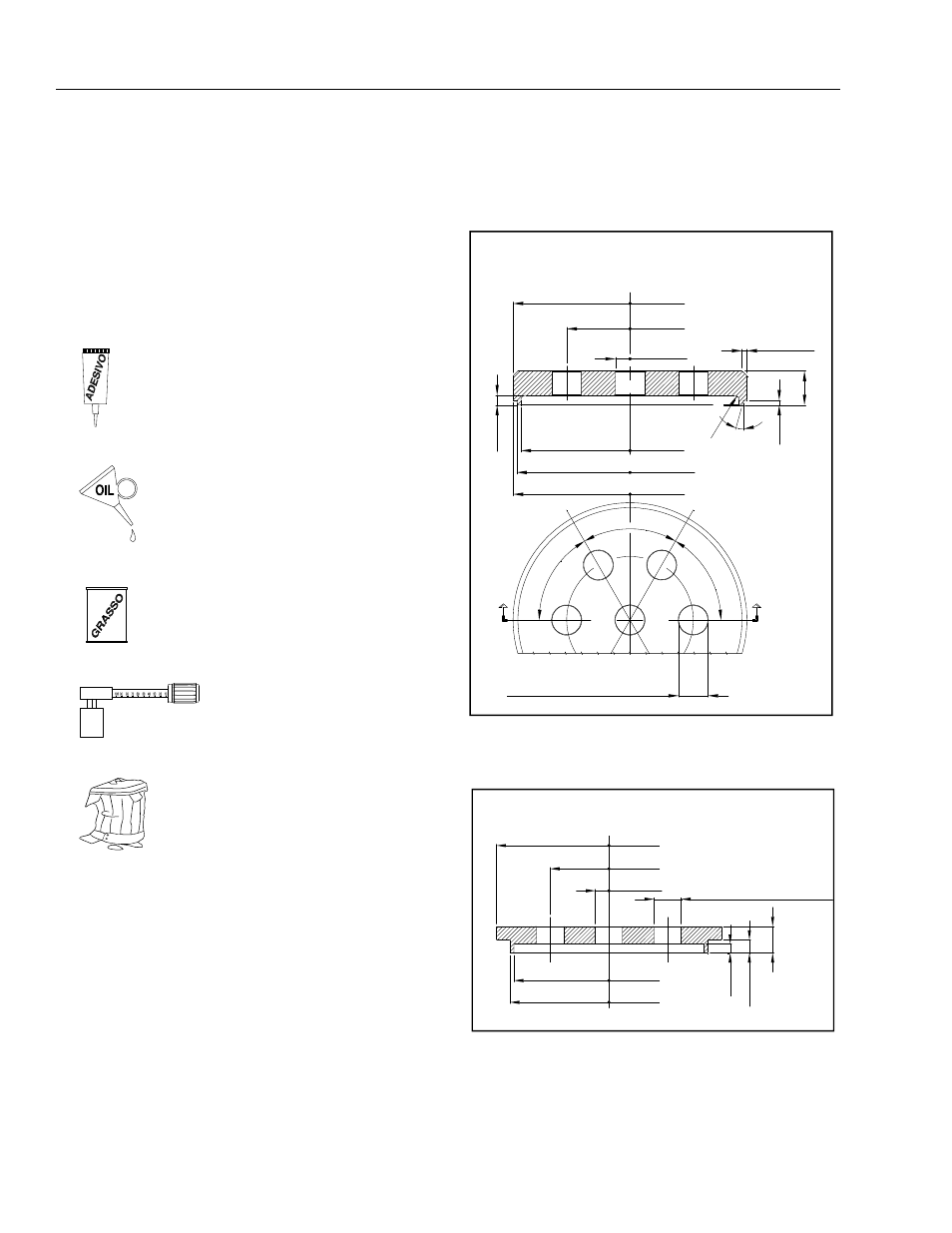

Symbol Nomenclature
= ADHESIVE
= LUBRICANT
= GREASE
= TORQUE WRENCH
= DISPOSAL
Tools
Tools required for assembling and disassembling the
wheel gear RRTD1701TB
1. Hammer;
2. Clamps for inner retention rings;
3. Clamps for outer retention rings;
4. Electric or pneumatic screwdriver;
5. Special spacer mounting;
6. Torque wrench;
7. Hydraulic press;
8. Wrench for M6, M8, M10 socket head screws and 1/
4"G plug.
9. Socket wrench for M6 hexagonal screw.
Ш30
Ш130
Ш240
Ш224
Ш233
Ш240
N° 6 Hole to 120° Ø30
5
10
5x45°
15
°
6
0
°
60°
6
0
°
A A
35
M- 1326
R
5
Figure 3-24. Bearing Track Spacer Mounting C016117
Ш30
Ш130
Ш249
Ш210
Ш219
N° 4 Hole to 90° Ø30
10
14.5
29
.5
M- 1537
Figure 3-25. Oil Seal Spacer Mounting C125049
