SECTION 4 - BOOM & PLATFORM
3121171 – JLG Lift – 4-41

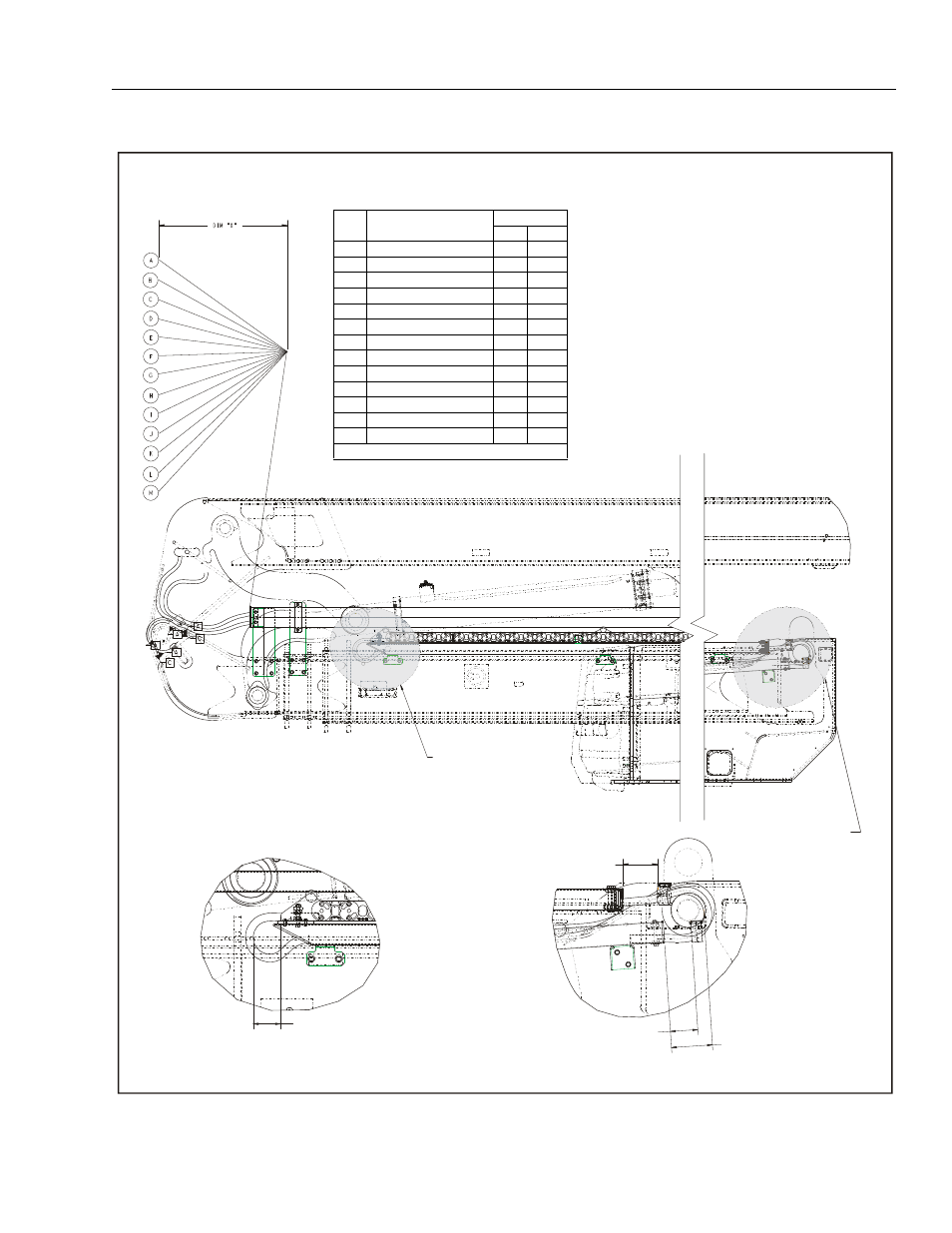

Figure 4-29. Tower Boom Powertrack Installation - Sheet 1 of 3
0273360-E
Table 4-1. Hose/Cable Pull Chart
Letter Description
Dim. X
In. Cm.
A Platform Supply Hose 60 152
B Platform Return Hose 7 18
C Main Tele Extend Hose 7 18
D Main Tele Retract Hose 7 18
E Main Lift Extend Hose 60 152
F Main Lift Retract Hose 60 152
G Main Lift Pilot Hose 60 152
H Tower Boom Control Cable 8 20
I Tower Boom Sensor Harness 8 20
J AC Cable 62 157
K Weld Lead 62 157
L 7500W Generator (Optional) 62 157
M Air Line (Optional) 62 157
NOTE: All X Dimensions are ± 1 in. (2.5 cm)
4.0 ± 0.5 in. (10 ± 1.2 cm)(
MAINTAIN HOSE/CABLE LOOP
AT THIS DIMENSION 6.0 ± 0.5 in. (15.2 ± 1.2 cm)(
MAINTAIN HOSE/CABLE LOOP
AT THIS DIMENSION
4.0 ± 0.5 in. (10 ± 1.2 cm)
5.0 ± 0.5 in. (12.7 ± 2.5 cm)
SEE DETAIL
A
SEE DETAIL
B
DETAIL
A
DETAIL
B
