SECTION 5 - HYDRAULICS
5-6 – JLG Lift – 3121171
13
24
21
9
26
25
23
18
17
17
20
20
22
6
5
19
19
27
27
16
8
15
4
11
10
7
28
29
12
1684343-D
1. Loctite #242 (Not Shown)
2. Loctite #271 (Not Shown)
3. Locking Primer (Not Shown)
4. Rod Link
5. Capscrew
6. Tapered Bushing 7. Bearing
8. Bushing
9. Head
10. Barrel
11. Rod
12. O-Ring Plug 13. O-Ring Plug
14. Not Used
15. Roll Pin
16. Piston
17. Wear Ring
18. Back-Up Ring 19. Lock Ring
20. Backup Ring
21. Washer Ring
22. O-Ring
23. O-Ring
24. Capscrew 25. Rod Seal
26. Rod Wiper
27. Guide Ring
28. Holding Valve
29. Holding Valve

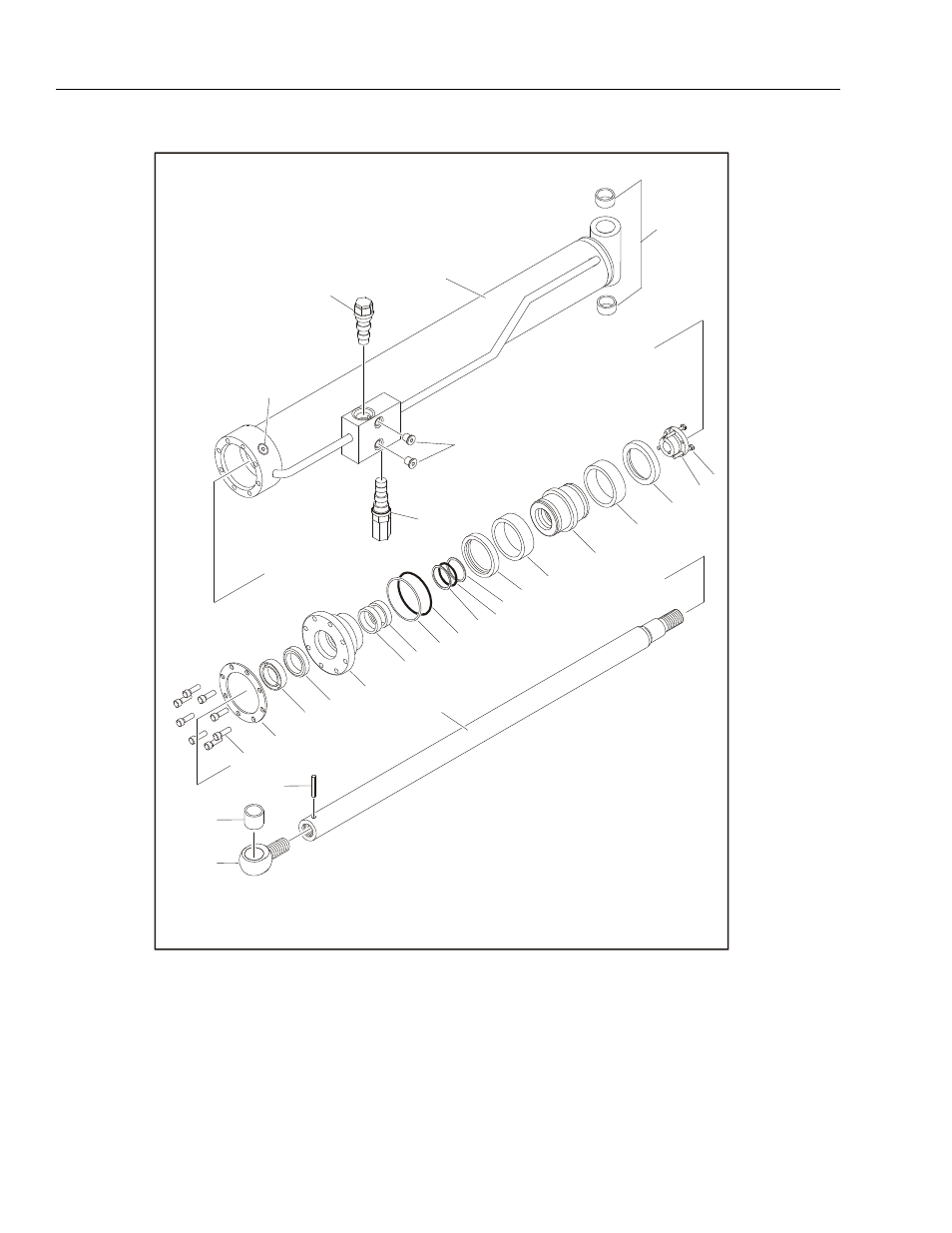

Figure 5-5. Level Cylinder (Prior to S/N 80030)
