SECTION 3 - 1CHASSIS & TURNTABLE
3121171 – JLG Lift – 3-81

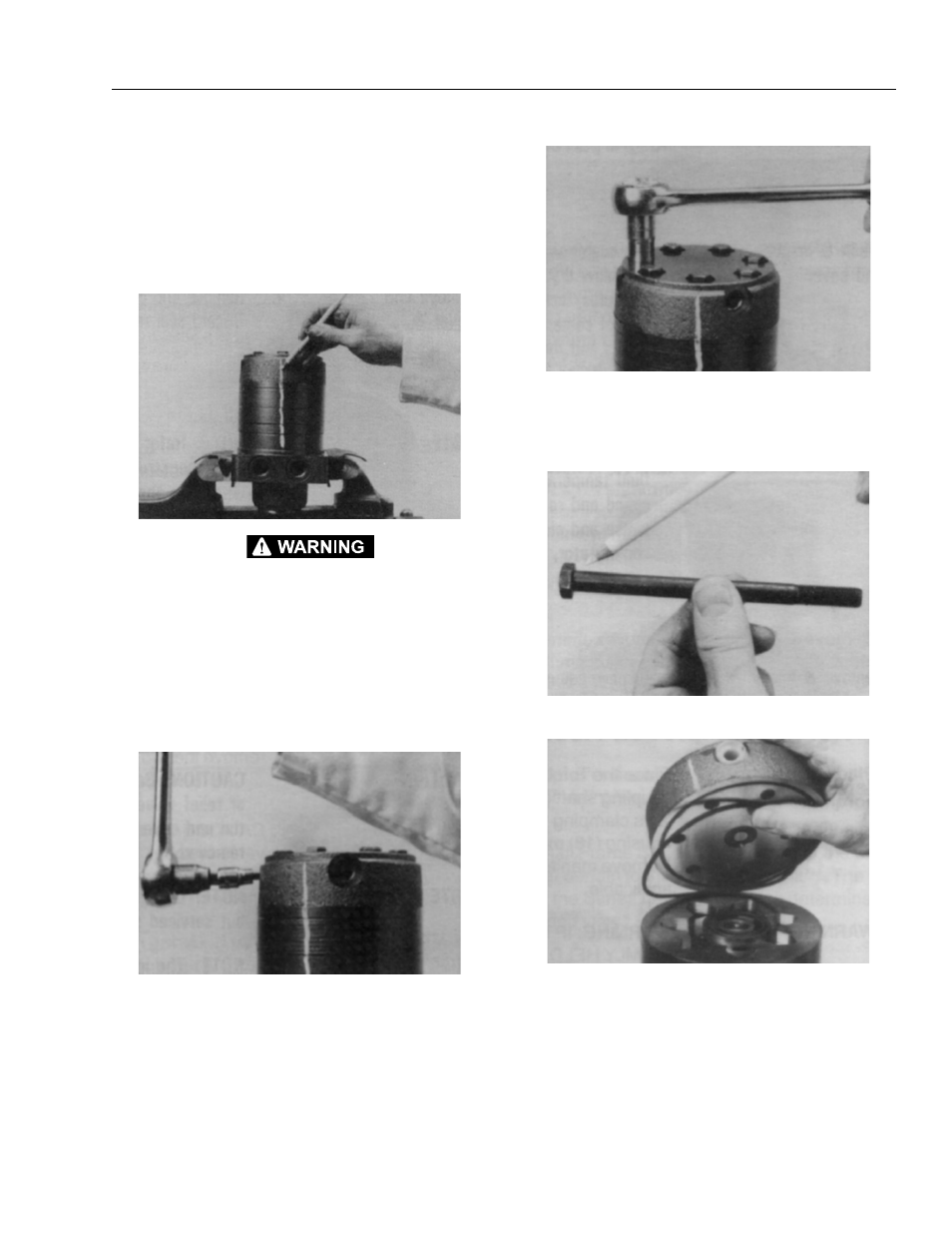

3.17 SWING MOTOR
Disassembly and inspection
1. Place the Torqlink™ in a soft jawed vice, with cou-
pling shaft (12) pointed down and the vise jaws
clamping firmly on the sides of the housing (18)
mounting flange or port bosses. Remove manifold
port O-Rings (18A) if applicable.
IFTHETORQLINK™ IS NOT FIRMLY HELD IN THE VISE, IT COULD
BE DISLODGED DURINGTHE SERVICE PROCEDURES, CAUSING
INJURY.
2. Scribe an alignment mark down and across the
Torqlink™ components from end cover (2) to hous-
ing (18) to facilitate reassembly orientation where
required. Loosen two shuttle or relief valve plugs
(21) for disassembly later if included in end cover. 3/
16 or 3/8 inch Allen wrench or 1 inch hex socket
required.
3. Remove the five, six, or seven special ring head
bolts (1) using an appropriate 1/2 or 9/16 inch size
socket. Inspect bolts for damaged threads, or seal-
ing rings, under the bolt head. Replace damaged
bolts.
4. Remove end cover assembly (2) and seal ring (4).
Discard seal ring.
NOTE: Refer to the appropriate “alternate cover construc-
tion” on the exploded view to determine the end
cover construction being serviced.
