SECTION 3 - 1CHASSIS & TURNTABLE

3-28

– JLG Lift –

3121171

1. Screw
2. O-ring
3. Pin
4. Screw
5. Cap Nut
6. Oil Plug
7. End Cover
8. Pad
9. O-ring
10. 1st Stage Sun Gear

11. Elastic Ring
12. Washers
13. Spring
14. Splined Shaft
15. Disengagement Shaft
16. 1st Reduction Assembly
17. 2nd Stage Sun Gear
18. 2nd Reduction Assembly
19. Circlip
20. 3rd Reduction Assembly

21. Spacer
22. Ring Nut
23. Gearbox Housing
24. Bearing
25. Spacer
26. Spacer
27. O-ring
28. Spacer
29. Half Seal
30. Seal Ring

31. Flanged Hub
32. Disc (Internal Teeth
33. Disc (External Teeth)
34. Spacer
35. Brake Shaft
36. Circlip
37. Backup Ring
38. O-ring
39. Spacer
40. Backup Ring

41. O-ring
42. O-ring
43. Backup Ring
44. Brake Piston
45. Springs
46. Retainer Disc
47. Circlip

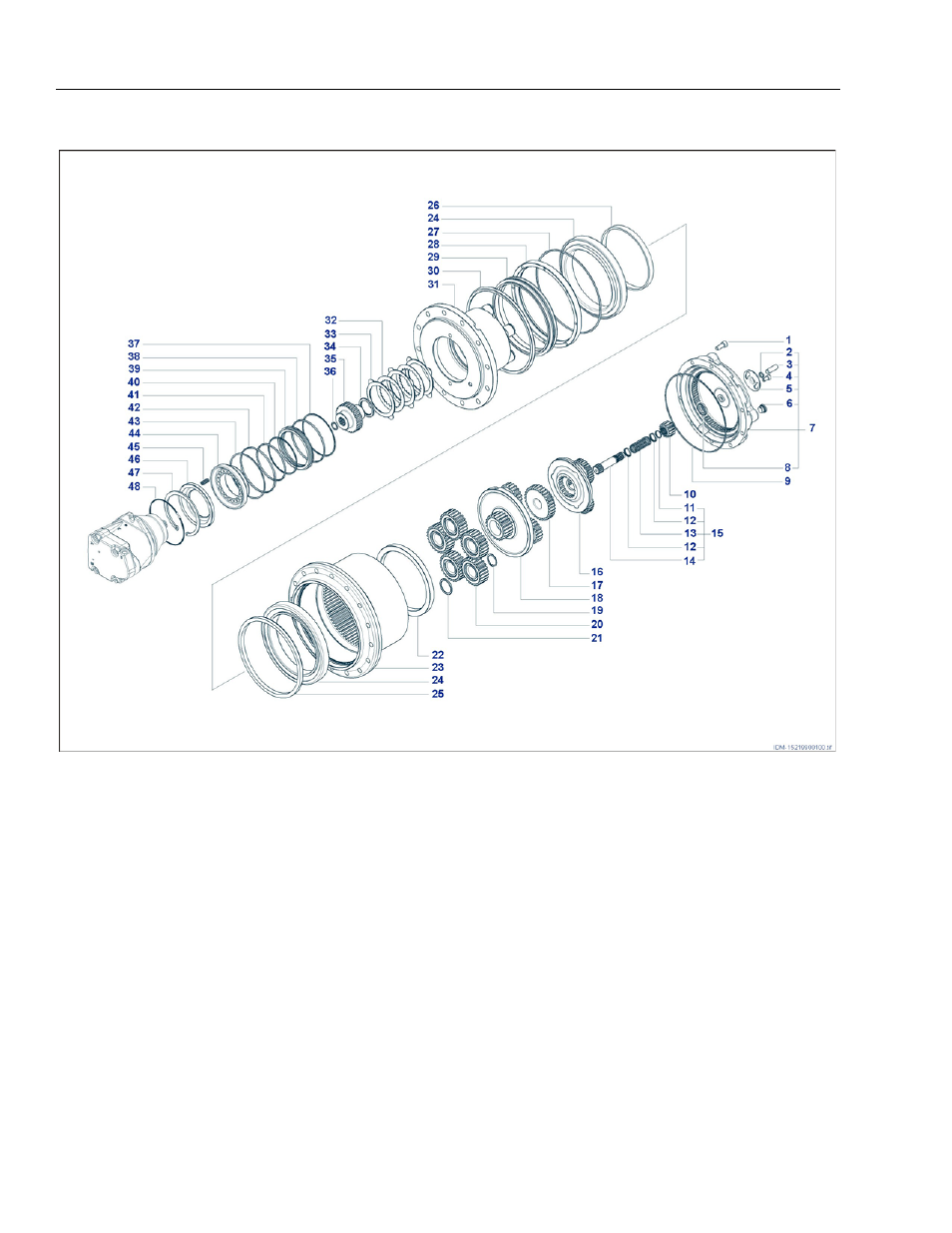

Figure 3-19. Drive Hub S/N 100128 to Present
