9-27 G6-42A, G9-43A, G10-43A
Electrical System

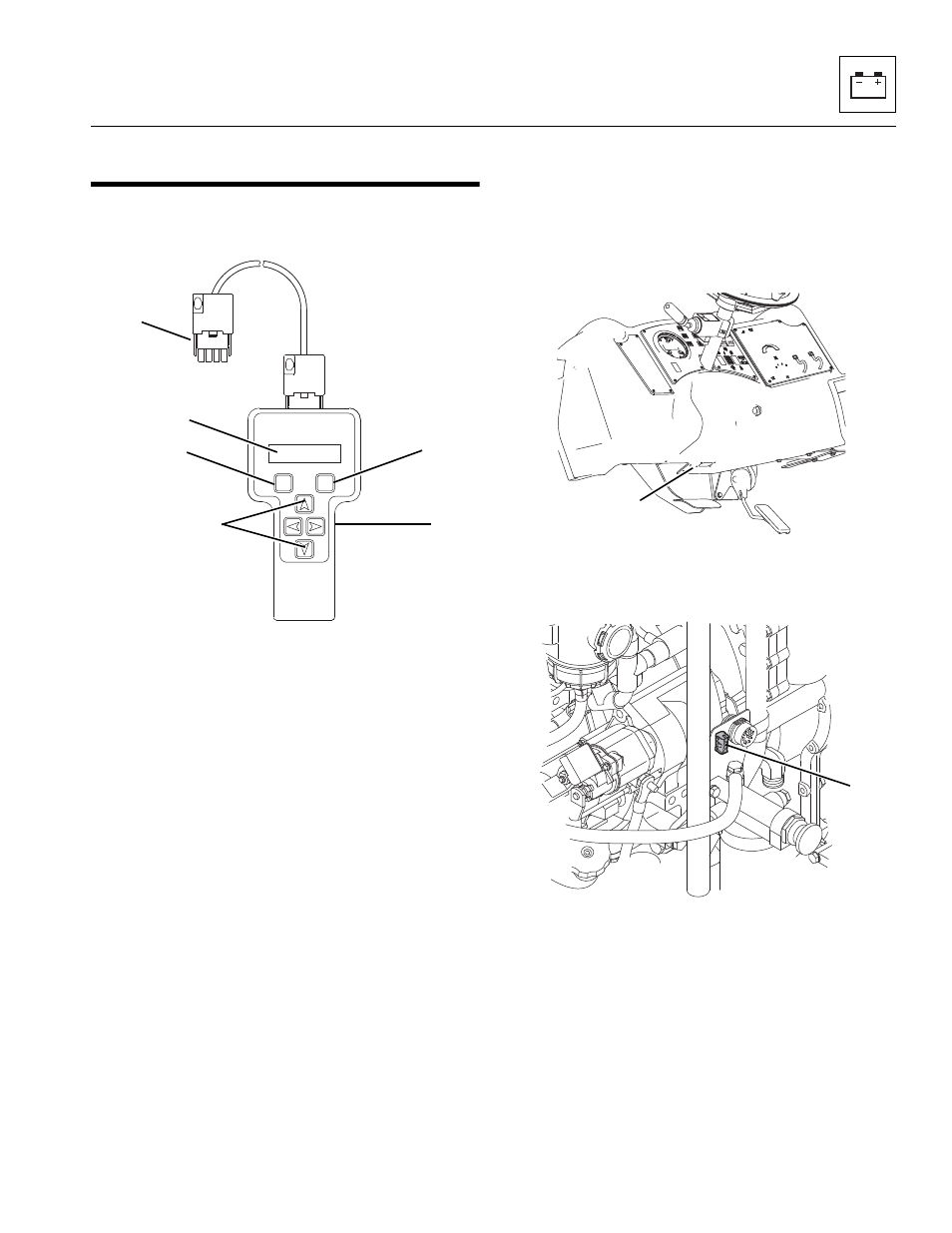

9.12 HAND HELD ANALYZER
- G9-43A AND G10-43A
The hand held analyzer can be used in place of the cab
display panel.
1. Cable Connector.
2. Analyzer Display Screen.
3. Escape Key: To return home or access previous
menu.
4. Enter Key: Stores and selects Top Level, Sub Level
and Items Menus.
5. Up/Down Arrow Keys: Change adjustable values.
6. Left and Right Arrow Keys: Used to move between
Top Level, Sub Levels and Item Menus.
9.12.1 Analyzer Usage
Help messages can be viewed using the Analyzer
(P/N 2901443). The Help messages can be accessed by
pressing the ENTER key while viewing the current Help
message. The Help message shall be EVERYTHING OK
when no fault is present.
The Analyzer cable plugs into the joystick tilt, accessory
module connector under the dash (7).
The Analyzer cable plugs into Pump Module connector at
engine above fuel filter (8).
For more information, contact the local JLG Distributor.
MY8200
ESC ENTER
1
2
3
5
4
6
MAL1110
7
MY8210
8
