7.6.3 Air Cleaner Assembly Removal—LS
1. Park machine on a firm, level surface, level machine,
fully retract boom, lower boom, place transmission
control lever in (N) NEUTRAL position, engage
parking brake, and shut engine OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and steering wheel.
3. Open engine cover. Allow system fluids to cool.
4. Properly disconnect battery.

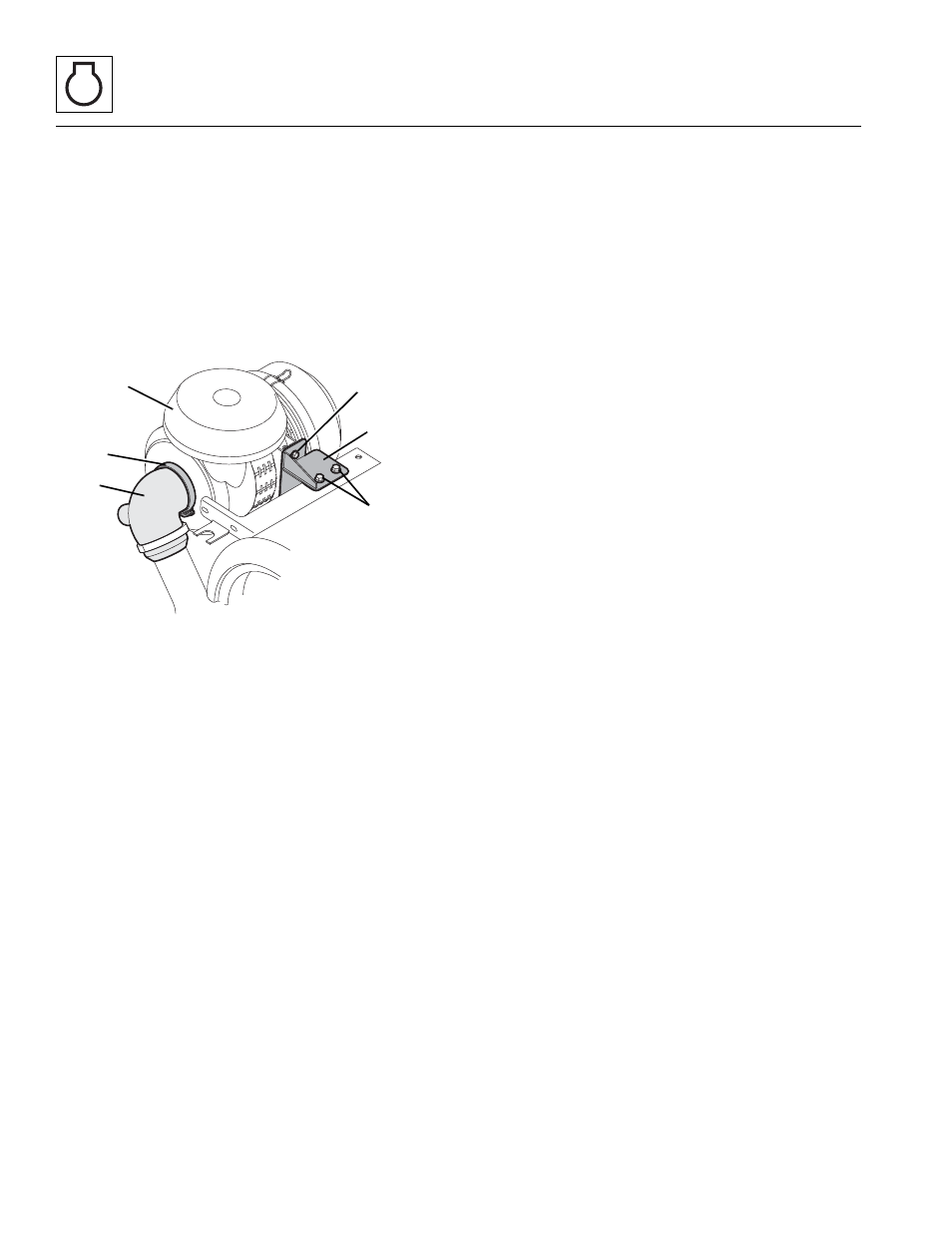

1. Remove clamp (8) securing air intake elbow (9) to air
cleaner assembly (10).
2. Remove two capscrews (11) securing mounting
bracket (12) to cab.
3. Remove air cleaner assembly.
4. Remove capscrews (13) securing mounting bracket
to air cleaner assembly. Remove mounting bracket.
7.6.4 Air Cleaner Assembly Installation—LS
Note: Apply Loctite
®
242™ to the capscrew threads
before installation.
1. Install the air cleaner assembly (10) to mounting
bracket (12) and secure with previously removed
hardware (13).
2. Install mounting bracket onto cab with previously
removed hardware (11).Secure the air intake elbow
(9) to air cleaner assembly (10) with clamp (8).
3. Adjust and tighten the clamp.
4. Properly connect the battery.
5. Close and secure the engine cover.
6. Remove Do Not Operate Tags from both ignition key
switch and steering wheel.
