Cab and Covers
4-6 G6-42A,G9-43A, G10-43A
d. Service Brake Pedal Installation
1. Position the service brake pedal in its mounting
location within the cab.
2. Secure the brake pedal into position with the pivot pin.
3. Be sure the brake pedal has the correct range of
motion. Secure pivot pin with bolt and lockwasher.
4. Properly connect the battery.
5. Close and secure the engine cover.
6. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.

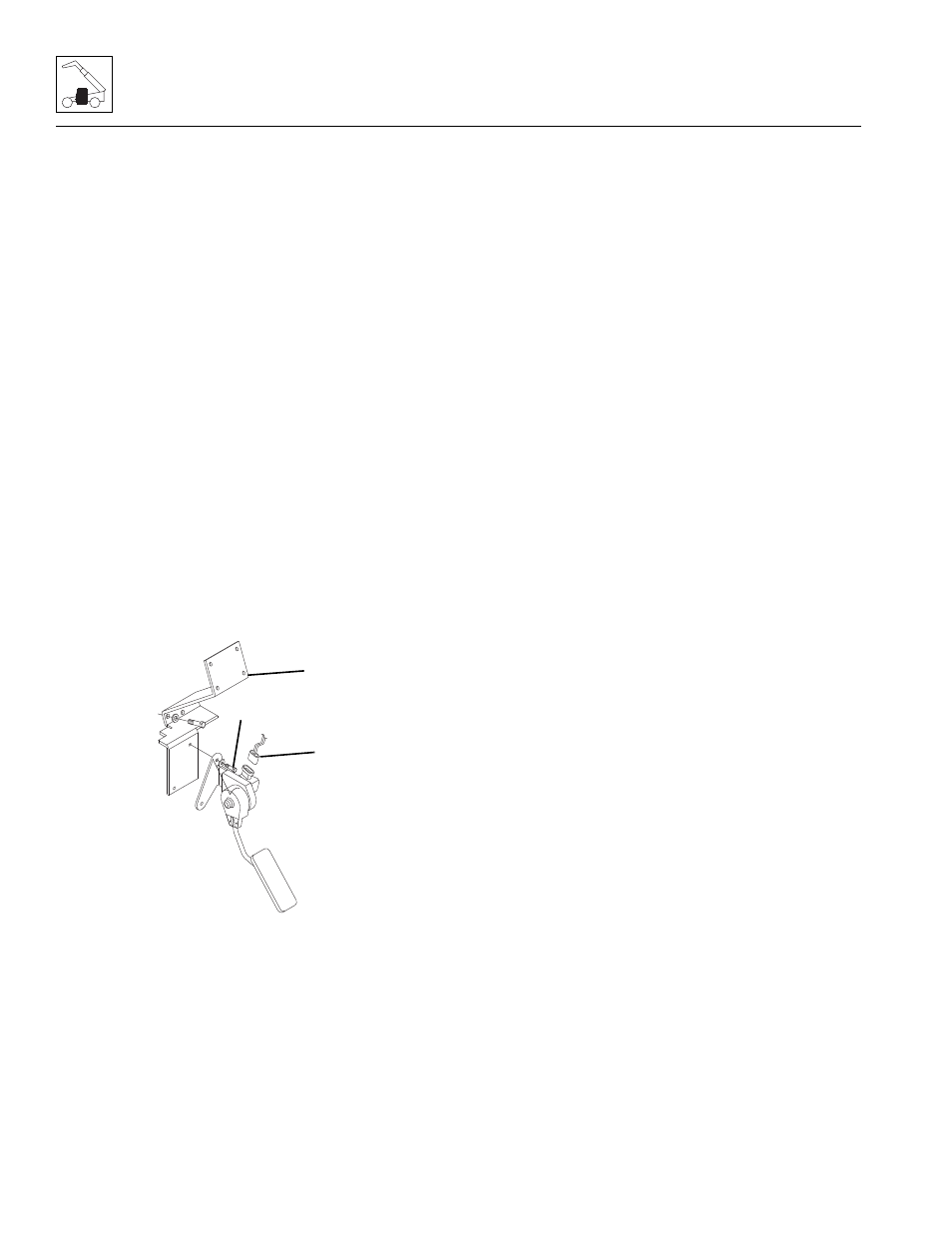

4.3.3 Accelerator Pedal
a. Accelerator Pedal Removal
1. Park machine on a firm, level surface, level machine,
fully retract boom, lower boom, place transmission
control lever in (N) NEUTRAL position, engage
parking brake and turn the engine OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and the steering wheel.
3. Open engine cover. Allow the system fluids to cool.
4. Properly disconnect the battery.
5. Disconnect the electrical harness connector (8).
6. Remove the bolts (9) securing the accelerator pedal
to accelerator pedal bracket (10).
7. Remove accelerator pedal assembly from cab.
b. Accelerator Pedal Installation
1. Position the accelerator pedal in its mounting
location within the cab.
2. Secure accelerator pedal into position with pivot pin.
3. Install pedal ball joint to accelerator pedal.
4. Properly connect the battery.
5. Verify proper accelerator pedal operation.
6. Close and secure the engine cover.
7. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.
MAL1000
8
9
10
