Transmission
6-2 G6-42A, G9-43A, G10-43A
6.1 TRANSMISSION ASSEMBLY
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the transmission.

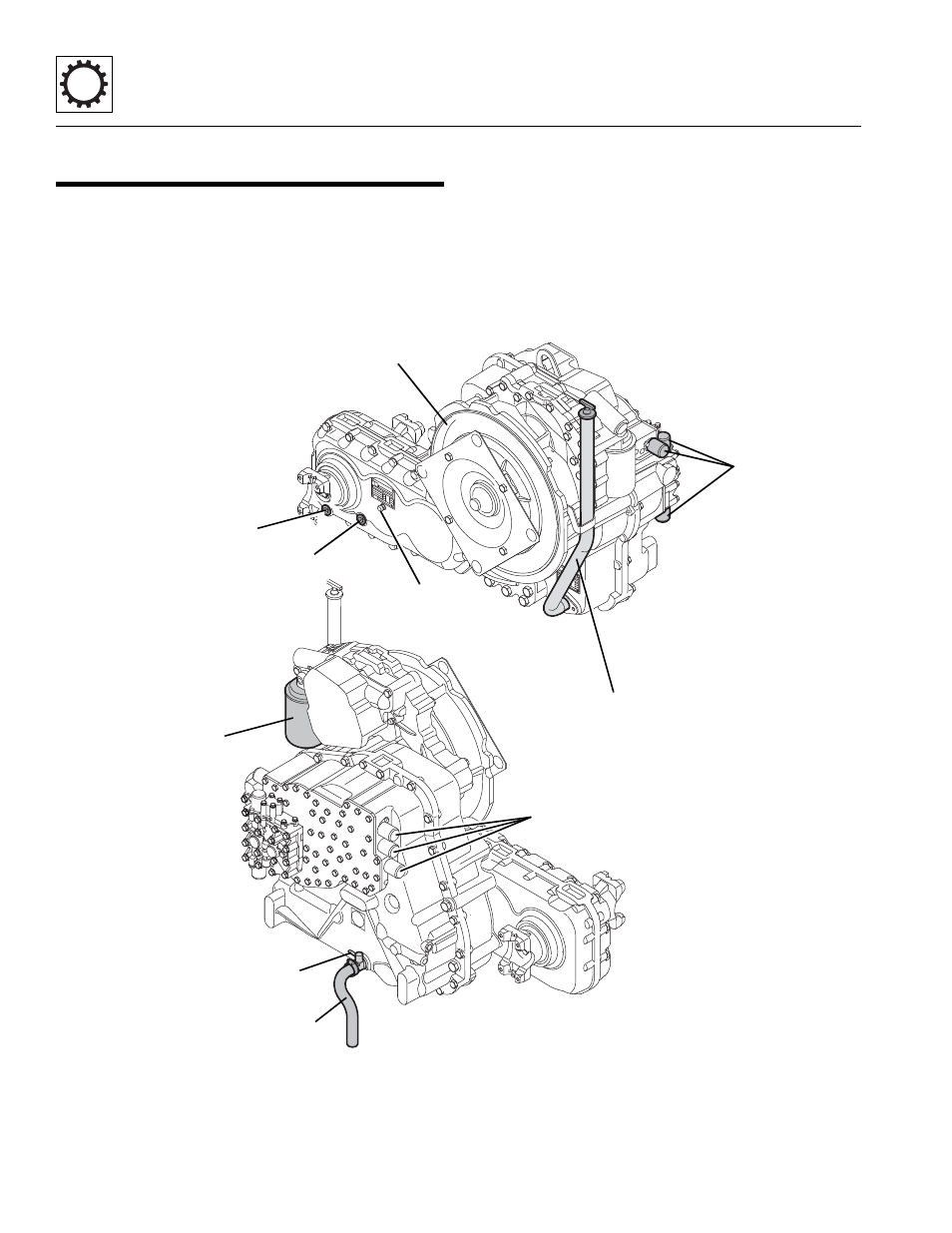

The following illustration identifies the components that
are referred to throughout this section.
MY8000
OIL FILLER PLUG
TRANSFER CASE
BREATHER
OIL FILL TUBE AND
DIPSTICK
TRANSMISSION
FILTER
OIL DRAIN VALVE
SHIFT SOLENOIDS
SHIFT SOLENOIDS
TORQUE CONVERTER
OIL DRAIN PLUG
OIL DRAIN HOSE
