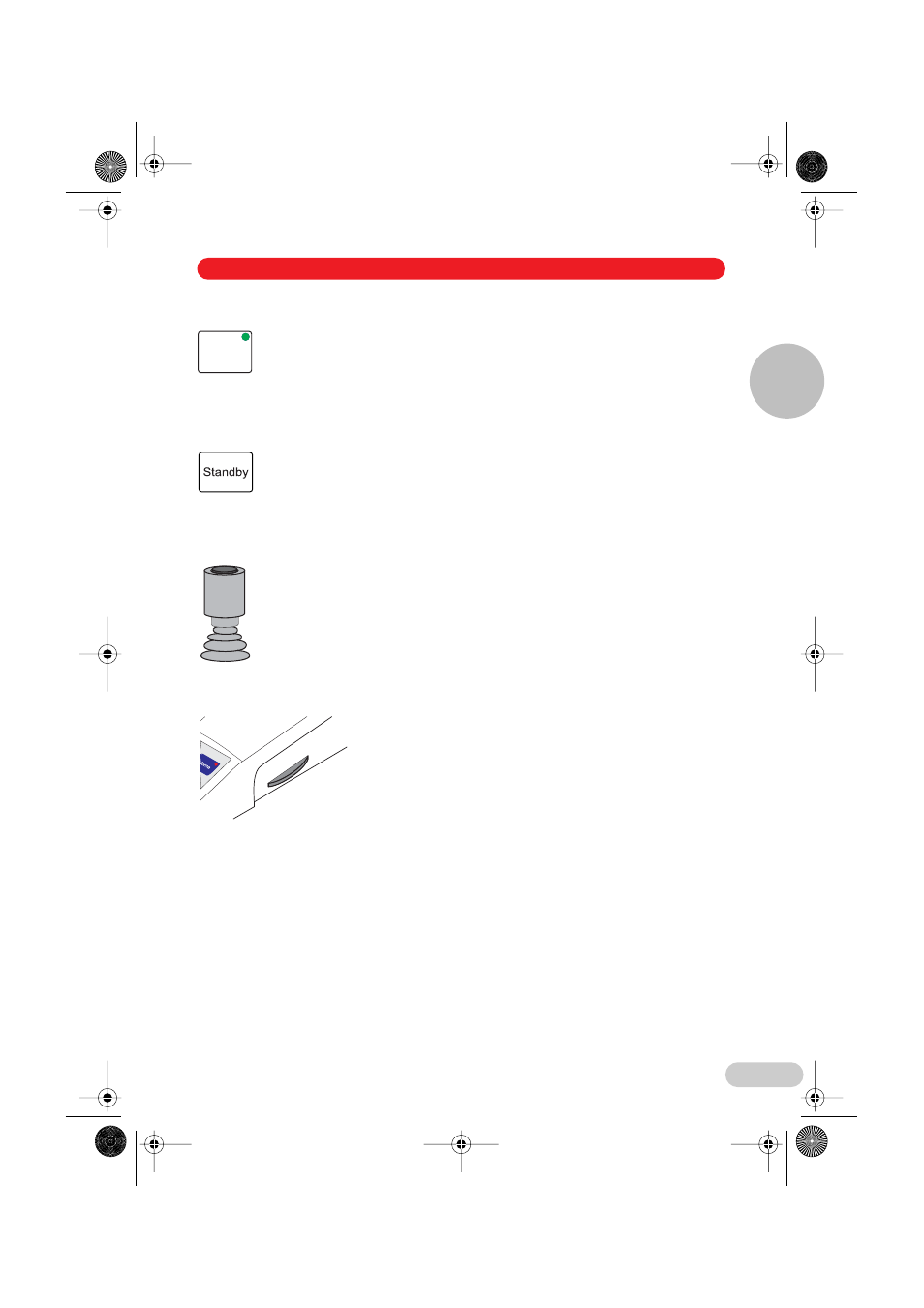

5.3.7 Z only

Only up and down movement (Z direction).
Deactivates movement on the X and Y axes (right, left, forward and back),
only movements in Z direction (up, down) are possible.
When active the LED is lit. Deactivating enables the axes once again. The LED
goes out.

5.3.8 Standby / Reset

Switches the device off or on.

To switch on, press the "Standby" key again. The device runs through the
power-up routine.

This functionality is also used as a reset function.

5.3.9 Joystick button / Joystick deactivation

Pressing the joystick deactivates the joystick, so unintentional moving of the
joystick does not move the tool.
The joystick is reactivated by pressing any key.

5.3.10 Turn wheel

Setting the speed in the current speed mode.

Acoustic signalling of change of speed.
