76

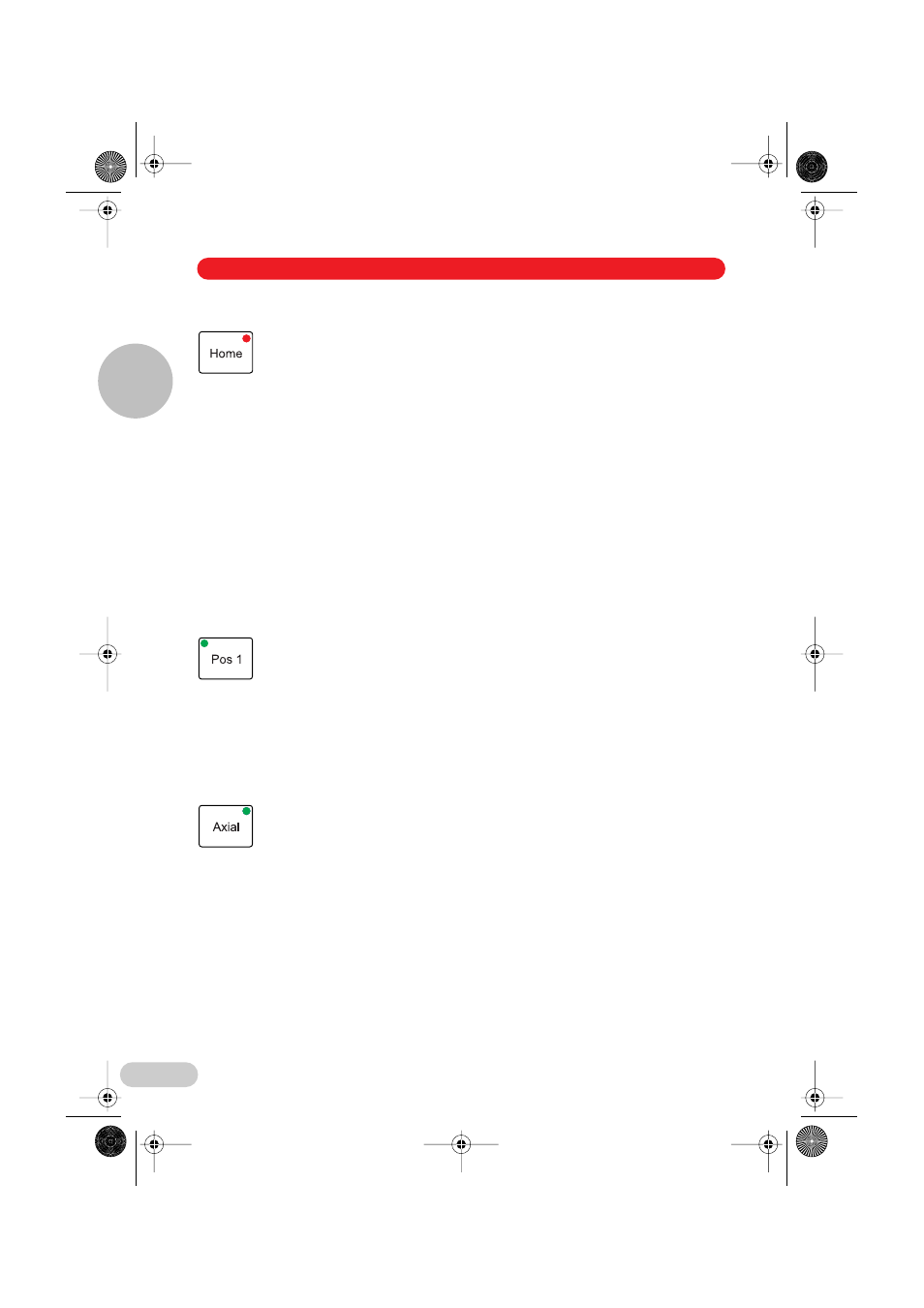

5.3.4 Home
The tools moves axially out of the working radius.
The function is intended for changing capillaries, or for quick removal of capillaries
out of the working radius.
HOME: Press (and hold down as necessary) to move out as far as motors' end position.
The red LED flashes during the movement, and is then lit steadily when the end position is
reached.
Press the key again to move the tool back to its starting point. To return the tool manually the
joystick can be moved directly. This terminates the Home function.
Clean moves the capillary out of the medium. In the process, cell particles adhering to the
medium boundary layer are removed from the capillary.
When Clean is active:
CLEAN: Tap to move out a pre-set distance.
The red LED flashes during the movement and at the end point.
Press the key again to move the tool back precisely to its starting position, or move the tool
manually.
5.3.5 Pos 1
Approach stored position.
Store current position by pressing and holding down the key (acoustic
acknowledgement).
Clear current position by pressing and holding down the key again (acoustic
acknowledgement).
The current position of the tool is stored in the three spatial coordinates. Storing new positions
overwrites existing ones. Positions can also be cleared by performing a reset ("Standby" key).
5.3.6 Axial
Activate or disable axial movement.
Rotating the joystick causes the tool to move axially up or down. The active
function is shown by the lit LED.
Rotate clockwise: move diagonally downwards
Rotate counterclockwise: move diagonally upwards
Setting the axial angle
After pressing the key for a long time, the angle of the axial movement can be changed.
The angle can be decreased at steps of 15°.
The following values can be set: 75°, 60°, 45°, 30°, 15°.
The acoustic signal for 75° is long whereas a double beep signals the factory preset value
of 45°. The other values are acknowledged by a normal beep.
