66

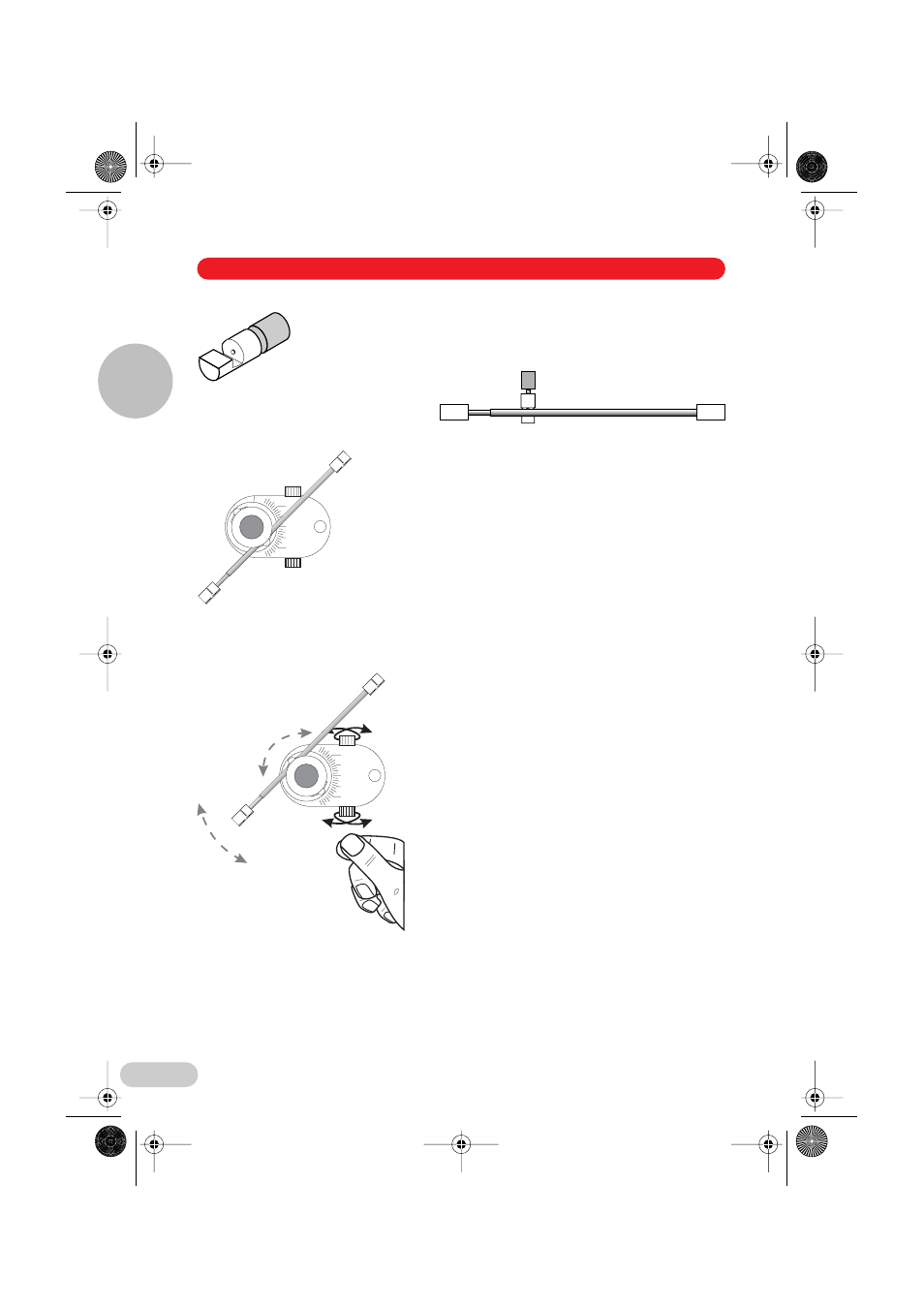

To avoid having to reposition every time a capillary is changed, the
positioning aid can be mounted on the universal capillary holder so it fits
in the centre hole in the X head.
Alternatively, the universal capillary holder can also
be inserted in the lower mount on the X head.
4.3.3 Angle adjuster
The desired angle can be set by turning one of the
two knurled screws on the X head.
Note: The orange fixing screw on the narrow front
face of the X module must be slackened prior to
adjusting the height and must then be re-tightened in
order to ensure reliable operation.
Depending on the angle, it may be necessary to
adjust the height of the X module and/or adjust the
position in X direction.
0
40°
40°
20°
20°
0
40°
40°
20°
20°
