Hydraulic Oil Level

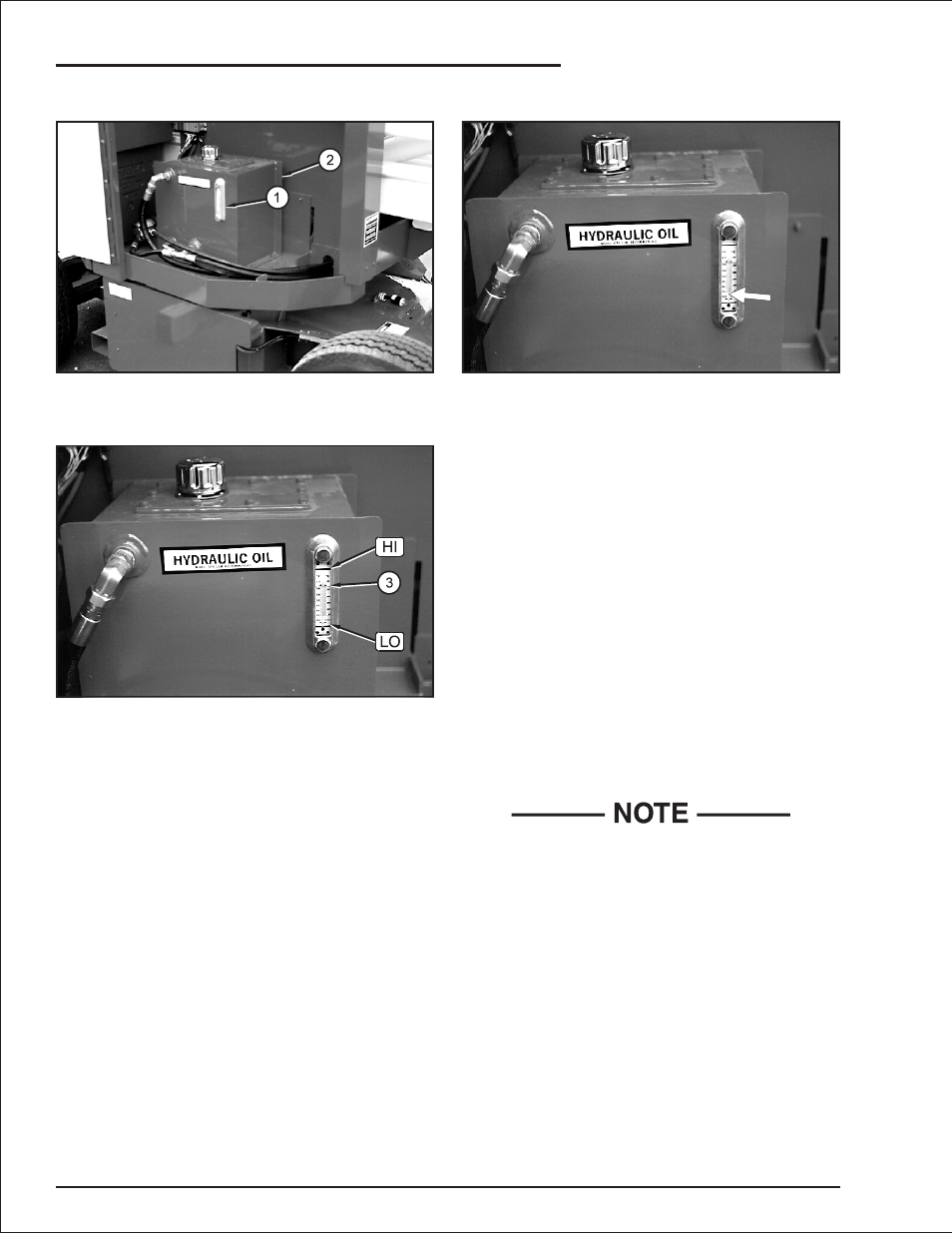

The hydraulic oil level gauge (1) is on the side of
the hydraulic oil tank (2).
The gauge shows the actual level of oil inside the
tank.
Read it only when the booms are completely
down and completely retracted. Otherwise, the
boom hydraulic cylinders become large reservoirs
for hydraulic oil and the oil level in the tank will be
low. The oil level (3) should be between the high
mark (4) and low mark (5).
❑
Hydraulic Oil Temperature
The hydraulic oil temperature gauge measures
the temperature of the oil in the tank. The
temperature should not exceed 200°F (93°C).
If the temperature reaches its limits, reduce your
driving speed or stop the AB46J and let the
hydraulic oil cool.
■ Circuit Breakers
With the exceptions of the optional GFCI outlet at
the platform and the circuit breaker on the battery
charger, there are no other circuit breakers on an
AB46J that are accessible to an operator.
All of the other circuit breakers on an AB46J
automatically reset themselves about one minute
after they trip.
When a circuit breaker trips that will not reset, or
if it resets automatically but trips again,
immediately attempt to lower the platform to the
ground by using normal operating procedures.
If normal procedures do not work, use
emergency procedures see “Emergency
Operation” chapter 9, to lower the platform.
If the cause of the problem is not immediately
obvious, refer the problem to a qualified
service technician.
