Introduction 067449-023 LX31/LX41 Electric and BiEnergy
Operator Manual Page 3
I
NTRODUCTION
This manual covers the operation of the LX 31 and LX 41 Electric and BiEnergy machines. This manual
must be stored on the machine at all times.
G ENERAL D ESCRIPTION

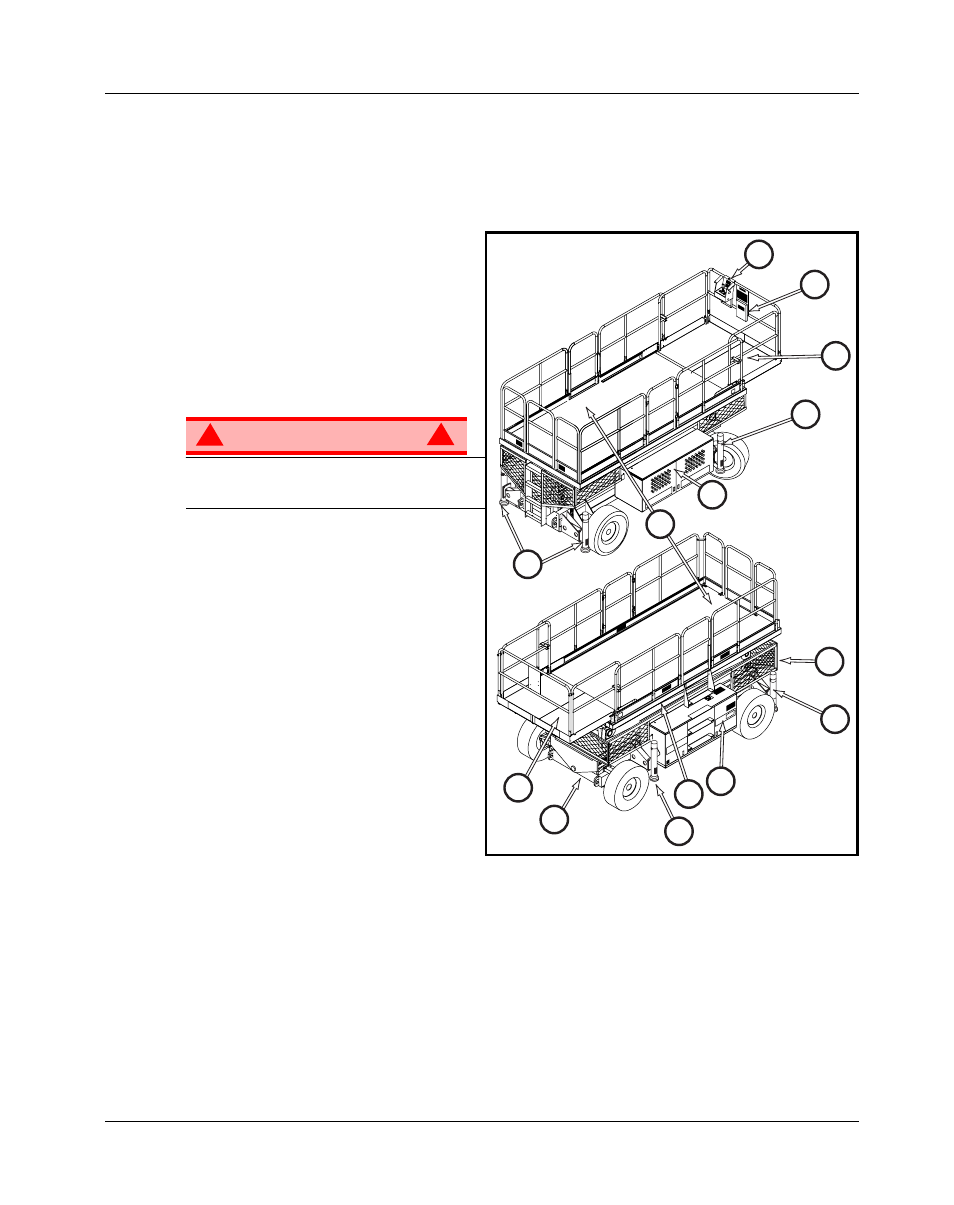

Figure 1: LX Serie7s Work Platform
1. Platform
The platform has a reinforced steel floor,
guardrails with midrail, toeboards and an
entrance gate at the rear and both sides of
the platform. The guardrails can be folded
down for access through doors or for ship-
ment.
2. Slide-out Deck
W A R N I N G ! !
DO NOT use the maintenance platform
without guardrails properly assembled and in
place
3. Platform Controls
The platform controls contain the controls to
operate the machine. It should be hung on
the front, left, or right guardrail.
4. Manual Case
5. Elevating Assembly
The platform is raised and lowered by the
elevating assembly; a five section scissor
assembly powered by two single-stage lift
cylinders.
6. Scissor Guard
7. Control Module
The control module contains the fuel tank,
hydraulic valve manifold, horn/alarms, bat-
teries, and chassis control panel.
8. Power Module
The power module contains the engine, generator, hydraulic pumps, and hydraulic reservoir.
9. Chassis
The chassis is a structural frame that supports all the components of the Work Platform.
10. Outriggers (optional)
3
4
2
10
8
1
10
10
2
9
5
7
10
6
